Renault 10 (Phase II, 1967) 1.1 (46 Hp) | Technical Specs, Fuel consumption, Dimensions

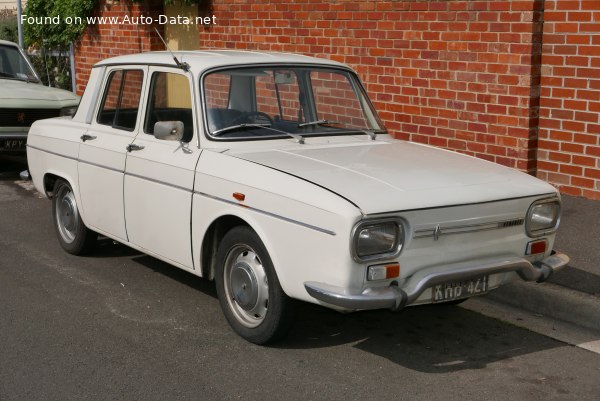

1968 Renault 10 (Phase II, 1967) - Photo 1

Key specs

Renault 10 (Phase II, 1967) 1.1 (46 Hp) /Sedan 1967 - 1969/

What is the body type of Renault 10 (Phase II, 1967)?

Sedan, 4 Doors, 5 Seats

How fast is 1967 10 (Phase II, 1967) 1.1 (46 Hp)?

135 km/h | 84 mph

What is the power output of Renault 10 Sedan 1967 1.1 (46 Hp)?

46 Hp, 78 Nm
58 lb.-ft.

What is the engine displacement of Renault 10 Sedan 1967 1.1 (46 Hp)?

1.1 l
1108 cm³
67.61 cu. in.

What is the number of cylinders in 1967 Renault 1.1 (46 Hp)?

4, Inline

What is the drivetrain of Renault 10 (Phase II, 1967) Sedan 1967 1.1 (46 Hp)?

Rear wheel drive. ICE. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1967 Renault 10 Sedan?

4191 mm
165 in.

What is the width of 1967 Renault 10 Sedan?

1524 mm
60 in.

What is the kerb weight of 1967 Renault 10 (Phase II, 1967) 1.1 (46 Hp)?

795 kg
1753 lbs.

What is the trunk (boot) capacity of 1967 Renault 10 Sedan?

315 l
11.1 cu. ft.

What are the number of gears and the gearbox type of 1967 Renault 10 (Phase II, 1967) 1.1 (46 Hp)?

4, manual transmission

Renault 10 (Phase II, 1967) 1.1 (46 Hp)

Renault
- Renault 10
  - 10 (Phase II, 1967)
    - 1.1 (46 Hp) Automatic
    - 1.1 (46 Hp)

Compare

General information

Brand

Renault

Model

Generation

10 (Phase II, 1967)

Modification (Engine)

1.1 (46 Hp)

Start of production

1967

End of production

1969

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Renault 10 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - extra urban

6.8 l/100 km 34.6 US mpg
41.5 UK mpg
14.7 km/l

Fuel Type

Petrol (Gasoline)

Maximum speed

135 km/h 84 mph

Weight-to-power ratio

17.3 kg/Hp, 57.9 Hp/tonne

Weight-to-torque ratio

10.2 kg/Nm, 98.1 Nm/tonne

Engine specs

Power

46 Hp @ 4600 rpm.

Power per litre

41.5 Hp/l

Torque

78 Nm @ 3000 rpm. 58 lb.-ft. @ 3000 rpm.

Engine layout

Rear, Longitudinal

Engine Model/Code

688.01

Engine displacement

1108 cm³ 67.61 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

70 mm 2.76 in.

Piston Stroke

72 mm 2.83 in.

Compression ratio

8.5:1

Number of valves per cylinder

Fuel injection system

Carburettor

Engine aspiration

Naturally aspirated engine

Valvetrain

OHV

Engine oil capacity

2.5 l 2.64 US qt | 2.2 UK qt

Engine oil specification

Coolant

7.6 l 8.03 US qt | 6.69 UK qt

Volume and weights

Kerb Weight

795 kg 1753 lbs.

Trunk (boot) space - minimum

315 l 11.1 cu. ft.

Fuel tank capacity

32 l 8.45 US gal | 7.04 UK gal

Dimensions

Length

4191 mm 165 in.

Width

1524 mm 60 in.

Height

1411 mm 55.55 in.

Wheelbase

2270 mm 89.37 in.

Front track

1254 mm 49.37 in.

Rear (Back) track

1219 mm 47.99 in.

Ride height (ground clearance)

127 mm 5 in.

Minimum turning circle (turning diameter)

9.2 m 30.18 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Independent coil spring, Anti-roll bar

Rear suspension

Independent coil spring

Front brakes

Disc, 259 mm

Rear brakes

Disc, 259 mm

Steering type

Steering rack and pinion

Tire size

145/80 R15

Wheel rim size

4J x 15

Renault 10 (Phase II, 1967) 1.1 (46 Hp)1967, 1968, 1969: specs, Fuel consumption, Dimensions
