Porsche Macan II Electric 4 100 kWh (408 Hp) | Technical specs, data, battery, electric range, Dimensions

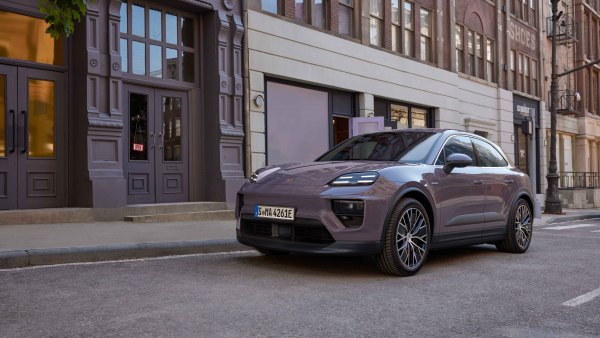

2024 Porsche Macan II Electric - Photo 1

Key specs

Porsche Macan II Electric 4 100 kWh (408 Hp) /SUV 2024 - /

What is the body type of Porsche Macan II Electric?

SUV, 5 Doors, 5 Seats

What is the all-electric range of 4 100 kWh (408 Hp)?

516-613 km
321 - 381 mi

What is the electricity consumption of Porsche Macan II Electric 4 100 kWh (408 Hp)?

17.9-21.1 kWh/100 km
28.81 - 33.96 kWh/100 mi
117 - 99 MPGe
5.6 - 4.7 km/kWh
3.5 - 2.9 mi/kWh

How fast is 2024 Macan II Electric 4 100 kWh (408 Hp)?

220 km/h | 137 mph
0-100 km/h: 5.2 sec
0-60 mph: 4.9 sec

What is the power output of Porsche Macan SUV 2024 4 100 kWh (408 Hp)?

408 Hp, 650 Nm
479 lb.-ft.

What is the drivetrain of Porsche Macan II Electric SUV 2024 4 100 kWh (408 Hp)?

All wheel drive (4x4). BEV (Electric Vehicle). One electric motor drives the front wheels, one electric motor drives the rear wheels.

What is the length of 2024 Porsche Macan SUV?

4784 mm
188.35 in.

What is the width of 2024 Porsche Macan SUV?

1938 mm
76.3 in.

What is the kerb weight of 2024 Porsche Macan II Electric 4 100 kWh (408 Hp)?

2330 kg
5137 lbs.

What is the maximum permissible mass of 2024 Porsche Macan II Electric 4 100 kWh (408 Hp)?

2920 kg
6437 lbs.

What is the trunk (boot) capacity of 2024 Porsche Macan SUV?

540 - 1348 l
19.1 - 47.6 cu. ft.

What are the number of gears and the gearbox type of 2024 Porsche Macan II Electric 4 100 kWh (408 Hp)?

1, automatic transmission

Porsche
- Porsche Macan
  - Macan II Electric
    - Turbo 100 kWh (639 Hp)
    - GTS 100 kWh (571 Hp)
    - 4S 100 kWh (516 Hp)
    - 4 100 kWh (408 Hp)
    - 100 kWh (360 Hp)

Compare

General information

Brand

Porsche

Model

Macan

Generation

Macan II Electric

Modification (Engine)

4 100 kWh (408 Hp)

Start of production

2024

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV

Seats

Doors

Looking for Porsche Macan on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

5.2 sec

Acceleration 0 - 62 mph

5.2 sec

Acceleration 0 - 60 mph

4.9 sec

Acceleration 0 - 200 km/h

19 sec

Maximum speed

220 km/h 137 mph

Weight-to-power ratio

5.7 kg/Hp, 175.1 Hp/tonne

Weight-to-torque ratio

3.6 kg/Nm, 279 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

100 kWh

Net (usable) battery capacity

95 kWh

Battery voltage

800 V

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor

Recuperation output

240 kW

Electric range (WLTP)

516-613 km 321 - 381 mi

Average Energy consumption (WLTP)

17.9-21.1 kWh/100 km 28.81 - 33.96 kWh/100 mi
117 - 99 MPGe
5.6 - 4.7 km/kWh
3.5 - 2.9 mi/kWh

Charging ports

Charging times

Electric motor 1

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

Electric motor 2

Electric motor location

Rear axle, Transverse

Electric motor type

Synchronous

System power

408 Hp

System torque

650 Nm 479 lb.-ft.

Volume and weights

Kerb Weight

2330 kg 5137 lbs.

Max. weight

2920 kg 6437 lbs.

Max load

590 kg 1301 lbs.

Trunk (boot) space - minimum

540 l 19.1 cu. ft.

Trunk (boot) space - maximum

1348 l 47.6 cu. ft.

Max. roof load

75 kg 165 lbs.

Permitted trailer load with brakes (12%)

2000 kg 4409 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

80 kg 176 lbs.

Dimensions

Length

4784 mm 188.35 in.

Width

1938 mm 76.3 in.

Width including mirrors

2152 mm 84.72 in.

Height

1622 mm 63.86 in.

Wheelbase

2893 mm 113.9 in.

Ride height (ground clearance)

184-225 mm 7.24 - 8.86 in.

Drag coefficient (C_d)

0.25

Minimum turning circle (turning diameter)

12.1 m 39.7 ft.

Approach angle

12.6°

Departure angle

20.6°

Ramp-over (breakover) angle

14.8-18°

Wading depth

300-340 mm 11.81 - 13.39 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels, one electric motor drives the rear wheels.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent multi-link suspension, Air suspension - optional

Rear suspension

Independent multi-link suspension, Air suspension - optional

Front brakes

Ventilated discs, 350x34 mm

Rear brakes

Ventilated discs, 350x30 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

Front wheel tires: 235/55 R20; 255/45 R21; 255/40 R22
Rear wheel tires: 285/45 R20; 295/40 R21; 295/35 R22

Wheel rim size

Front wheel rims: 7.5J x 20; 8.5J x 21; 9J x 22
Rear wheel rims: 10J x 20; 10.5J x 21; 11J x 22
