Porsche 968 3.0 8V Turbo S (305 Hp) Tiptronic | Technical specs, data, fuel consumption, Dimensions

Key specs

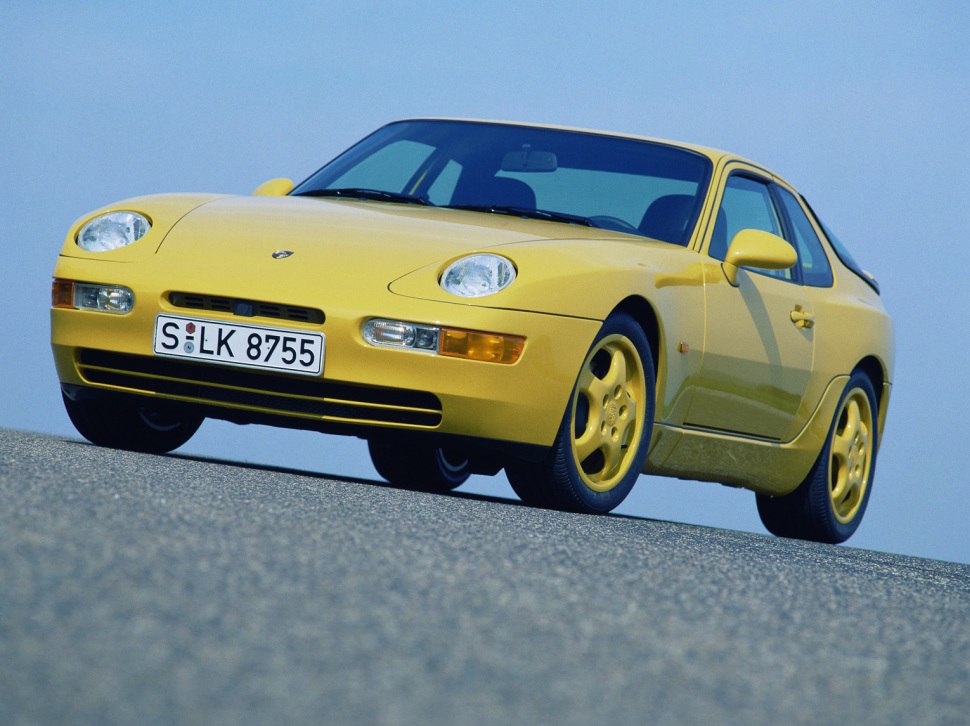

Porsche 968 3.0 8V Turbo S (305 Hp) Tiptronic /Coupe 1993 - 1995/

What is the body type of Porsche 968?

Coupe, 2 Doors, 2 Seats

How fast is 1993 968 3.0 8V Turbo S (305 Hp) Tiptronic?

280 km/h | 174 mph

What is the power output of Porsche 968 Coupe 1993 3.0 8V Turbo S (305 Hp) Tiptronic?

305 Hp, 500 Nm
369 lb.-ft.

What is the engine displacement of Porsche 968 Coupe 1993 3.0 8V Turbo S (305 Hp) Tiptronic?

3.0 l
2990 cm³
182.46 cu. in.

What is the number of cylinders in 1993 Porsche 3.0 8V Turbo S (305 Hp) Tiptronic?

4, Inline

What is the drivetrain of Porsche 968 Coupe 1993 3.0 8V Turbo S (305 Hp) Tiptronic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1993 Porsche 968 Coupe?

4320 mm
170.08 in.

What is the width of 1993 Porsche 968 Coupe?

1735 mm
68.31 in.

What is the kerb weight of 1993 Porsche 968 3.0 8V Turbo S (305 Hp) Tiptronic?

1300 kg
2866 lbs.

What is the maximum permissible mass of 1993 Porsche 968 3.0 8V Turbo S (305 Hp) Tiptronic?

1730 kg
3814 lbs.

What is the trunk (boot) capacity of 1993 Porsche 968 Coupe?

225 - 510 l
7.9 - 18 cu. ft.

What are the number of gears and the gearbox type of 1993 Porsche 968 3.0 8V Turbo S (305 Hp) Tiptronic?

4, automatic transmission Tiptronic

Porsche
- Porsche 968
  - 968
    - 3.0 8V Turbo S (305 Hp) Tiptronic
    - 3.0 8V Turbo S (305 Hp)
    - 3.0 16V (240 Hp) Tiptronic
    - 3.0 16V (240 Hp)

Compare

General information

Brand

Porsche

Model

968

Generation

968

Modification (Engine)

3.0 8V Turbo S (305 Hp) Tiptronic

Start of production

1993

End of production

1995

Powertrain Architecture

Internal Combustion engine

Body type

Coupe

Seats

Doors

Looking for Porsche 968 on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Maximum speed

280 km/h 174 mph

Weight-to-power ratio

4.3 kg/Hp, 234.6 Hp/tonne

Weight-to-torque ratio

2.6 kg/Nm, 384.6 Nm/tonne

Engine specs

Power

305 Hp @ 5600 rpm.

Power per litre

102 Hp/l

Torque

500 Nm @ 3000 rpm. 369 lb.-ft. @ 3000 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M44.60

Engine displacement

2990 cm³ 182.46 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

104 mm 4.09 in.

Piston Stroke

88 mm 3.46 in.

Compression ratio

7.5:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

SOHC

Engine oil capacity

7 l 7.4 US qt | 6.16 UK qt

Engine oil specification

Coolant

8 l 8.45 US qt | 7.04 UK qt

Volume and weights

Kerb Weight

1300 kg 2866 lbs.

Max. weight

1730 kg 3814 lbs.

Max load

430 kg 948 lbs.

Trunk (boot) space - minimum

225 l 7.9 cu. ft.

Trunk (boot) space - maximum

510 l 18 cu. ft.

Fuel tank capacity

74 l 19.55 US gal | 16.28 UK gal

Dimensions

Length

4320 mm 170.08 in.

Width

1735 mm 68.31 in.

Height

1275 mm 50.2 in.

Wheelbase

2400 mm 94.49 in.

Front track

1470 mm 57.87 in.

Rear (Back) track

1450 mm 57.09 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission Tiptronic

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Anti-roll bar, Trailing arm, Torsion bar

Front brakes

Ventilated discs, 322 mm

Rear brakes

Ventilated discs, 299 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

Front wheel tires: 235/40 R18
Rear wheel tires: 265/35 R18

Wheel rim size

Front wheel rims: 8J x 18
Rear wheel rims: 10J x 18

Specs of Porsche 968 3.0 8V Turbo S (305 Hp) Tiptronic /1993, 1994, 1995/
