Peugeot Partner I (Phase II, 2002) 1.6 (109 Hp) | Technical specs, data, fuel consumption, Dimensions

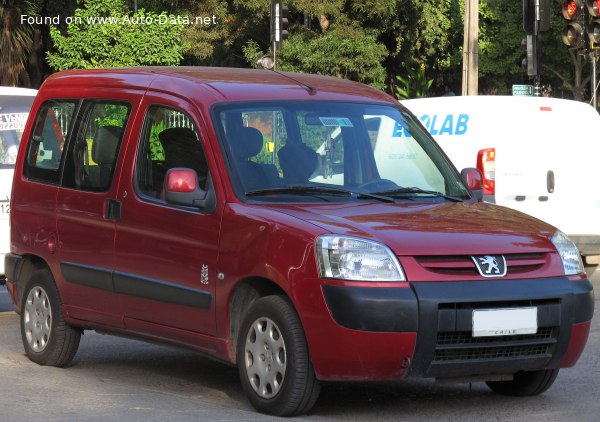

2002 Peugeot Partner I (Phase II, 2002) - Photo 1

Key specs

Peugeot Partner I (Phase II, 2002) 1.6 (109 Hp) /Minivan 2002 - 2008/

What is the body type of Peugeot Partner I (Phase II, 2002)?

Minivan, 5 Doors, 5 Seats

What is the fuel consumption and economy of Peugeot Partner I (Phase II, 2002) 1.6 (109 Hp)?

7.4 l/100 km
31.8 US mpg
38.2 UK mpg
13.5 km/l

How fast is 2002 Partner I (Phase II, 2002) 1.6 (109 Hp)?

170 km/h | 106 mph
0-100 km/h: 13.1 sec
0-60 mph: 12.4 sec

What is the power output of Peugeot Partner Minivan 2002 1.6 (109 Hp)?

109 Hp, 147 Nm
108 lb.-ft.

What is the engine displacement of Peugeot Partner Minivan 2002 1.6 (109 Hp)?

1.6 l
1587 cm³
96.84 cu. in.

What is the number of cylinders in 2002 Peugeot 1.6 (109 Hp)?

4, Inline

What is the drivetrain of Peugeot Partner I (Phase II, 2002) Minivan 2002 1.6 (109 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2002 Peugeot Partner Minivan?

4140 mm
162.99 in.

What is the width of 2002 Peugeot Partner Minivan?

1720 mm
67.72 in.

What is the kerb weight of 2002 Peugeot Partner I (Phase II, 2002) 1.6 (109 Hp)?

1250 kg
2756 lbs.

What is the maximum permissible mass of 2002 Peugeot Partner I (Phase II, 2002) 1.6 (109 Hp)?

1840 kg
4057 lbs.

What is the trunk (boot) capacity of 2002 Peugeot Partner Minivan?

625 - 2800 l
22.1 - 98.9 cu. ft.

What are the number of gears and the gearbox type of 2002 Peugeot Partner I (Phase II, 2002) 1.6 (109 Hp)?

5, manual transmission

Peugeot
- Peugeot Partner
  - Partner I (Phase II, 2002)
    - 2.0 HDi (90 Hp)
    - 1.9 D (69 Hp)
    - 1.6 HDi (90 Hp)
    - 1.6 HDi (75 Hp)
    - 1.6 (109 Hp)
    - 1.4 (75 Hp)

Compare

General information

Brand

Peugeot

Model

Partner

Generation

Partner I (Phase II, 2002)

Modification (Engine)

1.6 (109 Hp)

Start of production

2002

End of production

2008

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

Doors

Looking for Peugeot Partner on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

9.5 l/100 km 24.8 US mpg
29.7 UK mpg
10.5 km/l

Fuel consumption (economy) - extra urban

6.2 l/100 km 37.9 US mpg
45.6 UK mpg
16.1 km/l

Fuel consumption (economy) - combined

7.4 l/100 km 31.8 US mpg
38.2 UK mpg
13.5 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

13.1 sec

Acceleration 0 - 62 mph

13.1 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

12.4 sec

Maximum speed

170 km/h 106 mph

Weight-to-power ratio

11.5 kg/Hp, 87.2 Hp/tonne

Weight-to-torque ratio

8.5 kg/Nm, 117.6 Nm/tonne

Engine specs

Power

109 Hp @ 5750 rpm.

Power per litre

68.7 Hp/l

Torque

147 Nm @ 4000 rpm. 108 lb.-ft. @ 4000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

NFU TU5JP4

Engine displacement

1587 cm³ 96.84 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

78 mm 3.07 in.

Piston Stroke

83 mm 3.27 in.

Compression ratio

11:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Engine oil capacity

3.25 l 3.43 US qt | 2.86 UK qt

Engine oil specification

Volume and weights

Kerb Weight

1250 kg 2756 lbs.

Max. weight

1840 kg 4057 lbs.

Max load

590 kg 1301 lbs.

Trunk (boot) space - minimum

625 l 22.1 cu. ft.

Trunk (boot) space - maximum

2800 l 98.9 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4140 mm 162.99 in.

Width

1720 mm 67.72 in.

Height

1810 mm 71.26 in.

Wheelbase

2690 mm 105.91 in.

Front track

1420 mm 55.91 in.

Rear (Back) track

1440 mm 56.69 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Wishbone

Rear suspension

Trailing arm

Front brakes

Disc

Rear brakes

Drum

Tire size

175/70 R14

Specs of Peugeot Partner I (Phase II, 2002) 1.6 (109 Hp) /2002, 2003, 2004, 2005, 2006, 2007, 2008/
