Peugeot 806 (221) 2.0 HDI (109 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

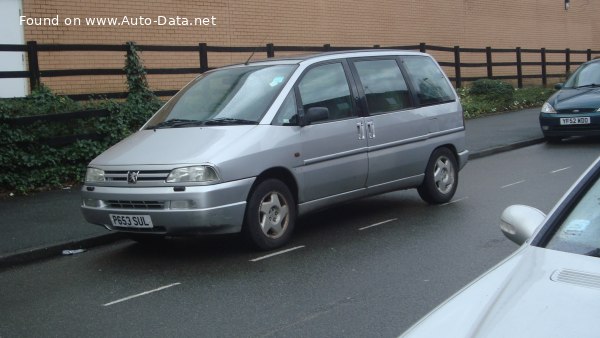

Peugeot 806 (221) 2.0 HDI (109 Hp) /Minivan 1999 - 2002/

What is the body type of Peugeot 806 (221)?

Minivan, 5 Doors, 8 Seats

What is the fuel consumption and economy of Peugeot 806 (221) 2.0 HDI (109 Hp)?

6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l

How fast is 1999 806 (221) 2.0 HDI (109 Hp)?

175 km/h | 109 mph
0-100 km/h: 15.8 sec
0-60 mph: 15 sec

What is the power output of Peugeot 806 Minivan 1999 2.0 HDI (109 Hp)?

109 Hp, 250 Nm
184 lb.-ft.

What is the engine displacement of Peugeot 806 Minivan 1999 2.0 HDI (109 Hp)?

2.0 l
1997 cm³
121.86 cu. in.

What is the number of cylinders in 1999 Peugeot 2.0 HDI (109 Hp)?

4, Inline

What is the drivetrain of Peugeot 806 (221) Minivan 1999 2.0 HDI (109 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1999 Peugeot 806 Minivan?

4454 mm
175.35 in.

What is the width of 1999 Peugeot 806 Minivan?

1834 mm
72.2 in.

What is the kerb weight of 1999 Peugeot 806 (221) 2.0 HDI (109 Hp)?

1670 kg
3682 lbs.

What is the maximum permissible mass of 1999 Peugeot 806 (221) 2.0 HDI (109 Hp)?

2395 kg
5280 lbs.

What is the trunk (boot) capacity of 1999 Peugeot 806 Minivan?

340 - 3300 l
12 - 116.5 cu. ft.

What are the number of gears and the gearbox type of 1999 Peugeot 806 (221) 2.0 HDI (109 Hp)?

5, manual transmission

Peugeot
- Peugeot 806
  - 806 (221)

Compare

General information

Brand

Peugeot

Model

806

Generation

806 (221)

Modification (Engine)

2.0 HDI (109 Hp)

Start of production

1999

End of production

2002

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

Doors

Looking for Peugeot 806 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

6.6 l/100 km 35.6 US mpg
42.8 UK mpg
15.2 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

15.8 sec

Acceleration 0 - 62 mph

15.8 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

15 sec

Maximum speed

175 km/h 109 mph

Weight-to-power ratio

15.3 kg/Hp, 65.3 Hp/tonne

Weight-to-torque ratio

6.7 kg/Nm, 149.7 Nm/tonne

Engine specs

Power

109 Hp @ 4000 rpm.

Power per litre

54.6 Hp/l

Torque

250 Nm @ 1750 rpm. 184 lb.-ft. @ 1750 rpm.

Engine layout

Front, Transverse

Engine Model/Code

RHZ DW10ATED

Engine displacement

1997 cm³ 121.86 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

85 mm 3.35 in.

Piston Stroke

88 mm 3.46 in.

Compression ratio

18:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger

Valvetrain

DOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

8 l 8.45 US qt | 7.04 UK qt

Volume and weights

Kerb Weight

1670 kg 3682 lbs.

Max. weight

2395 kg 5280 lbs.

Max load

725 kg 1598 lbs.

Trunk (boot) space - minimum

340 l 12 cu. ft.

Trunk (boot) space - maximum

3300 l 116.5 cu. ft.

Fuel tank capacity

80 l 21.13 US gal | 17.6 UK gal

Dimensions

Length

4454 mm 175.35 in.

Width

1834 mm 72.2 in.

Height

1714 mm 67.48 in.

Wheelbase

2825 mm 111.22 in.

Front track

1534 mm 60.39 in.

Rear (Back) track

1540 mm 60.63 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Wishbone

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

205/65R15

Specs of Peugeot 806 (221) 2.0 HDI (109 Hp) /1999, 2000, 2001, 2002/
