Peugeot 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8 | Technical specs, data, fuel consumption, Dimensions

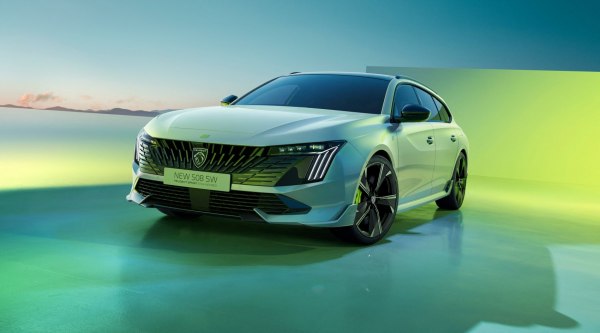

2024 Peugeot 508 II SW (Phase II, 2023) - Photo 1

Key specs

Peugeot 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8 /Station wagon (estate) 2023 - /

What is the body type of Peugeot 508 II SW (Phase II, 2023)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Peugeot 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

1.2-1.5 l/100 km
196 - 156.8 US mpg
235.4 - 188.3 UK mpg
83.3 - 66.7 km/l

How environmentally friendly is Peugeot 508 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

27-33 g/km CO₂
Euro 6

What is the all-electric range of 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

64 km
40 mi

How fast is 2023 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

240 km/h | 149 mph
0-100 km/h: 8 sec
0-60 mph: 7.6 sec

What is the power output of Peugeot 508 Station wagon (estate) 2023 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

225 Hp, 360 Nm
266 lb.-ft.

What is the engine displacement of Peugeot 508 Station wagon (estate) 2023 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

1.6 l
1598 cm³
97.52 cu. in.

What is the number of cylinders in 2023 Peugeot 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

4, Inline

What is the drivetrain of Peugeot 508 II SW (Phase II, 2023) Station wagon (estate) 2023 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

Front wheel drive. PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

What is the length of 2023 Peugeot 508 Station wagon (estate)?

4778 mm
188.11 in.

What is the width of 2023 Peugeot 508 Station wagon (estate)?

1859 mm
73.19 in.

What is the kerb weight of 2023 Peugeot 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

1771 kg
3904 lbs.

What is the maximum permissible mass of 2023 Peugeot 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

2300 kg
5071 lbs.

What is the trunk (boot) capacity of 2023 Peugeot 508 Station wagon (estate)?

530 - 1780 l
18.7 - 62.9 cu. ft.

What are the number of gears and the gearbox type of 2023 Peugeot 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8?

8, automatic transmission e-EAT8

Peugeot
- Peugeot 508
  - 508 II SW (Phase II, 2023)
    - PSE 1.6 PureTech (360 Hp) 4WD Plug-in Hybrid e-EAT8
    - 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8
    - 1.6 PureTech (180 Hp) Plug-in Hybrid e-EAT8
    - 1.5 BlueHDi (130 Hp) EAT8
    - 1.2 PureTech (130 Hp) EAT8

Compare

General information

Brand

Peugeot

Model

508

Generation

508 II SW (Phase II, 2023)

Modification (Engine)

1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8

Start of production

2023

Powertrain Architecture

PHEV (Plug-in Hybrid Electric Vehicle)

Body type

Station wagon (estate)

Seats

Doors

Looking for Peugeot 508 on the used-car market?

Check its history →

Performance specs

Combined fuel consumption (WLTP)

1.2-1.5 l/100 km 196 - 156.8 US mpg
235.4 - 188.3 UK mpg
83.3 - 66.7 km/l

CO₂ emissions (WLTP)

27-33 g/km

Fuel Type

Petrol / electricity

Acceleration 0 - 100 km/h

8 sec

Acceleration 0 - 62 mph

8 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

7.6 sec

Maximum speed

240 km/h 149 mph

Emission standard

Euro 6

Weight-to-power ratio

7.9 kg/Hp, 127 Hp/tonne

Weight-to-torque ratio

4.9 kg/Nm, 203.3 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

12.4 kWh

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor, under the rear seats

Electric range (WLTP)

64 km 40 mi

Max speed (electric)

135 km/h 84 mph

Charging ports

Charging times

Electric motor 1

Electric motor power

110 Hp

Electric motor Torque

320 Nm 236 lb.-ft.

Electric motor location

Between the combustion engine and the transmission

System power

225 Hp

System torque

360 Nm 266 lb.-ft.

Internal combustion engine specs

Power

180 Hp @ 6000 rpm.

Power per litre

112.6 Hp/l

Torque

300 Nm @ 3000 rpm. 221 lb.-ft. @ 3000 rpm.

Engine layout

Front, Transverse

Engine displacement

1598 cm³ 97.52 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

77 mm 3.03 in.

Piston Stroke

85.8 mm 3.38 in.

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

4.25 l 4.49 US qt | 3.74 UK qt

Engine oil specification

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1771 kg 3904 lbs.

Max. weight

2300 kg 5071 lbs.

Max load

529 kg 1166 lbs.

Trunk (boot) space - minimum

530 l 18.7 cu. ft.

Trunk (boot) space - maximum

1780 l 62.9 cu. ft.

Permitted trailer load with brakes (12%)

1300 kg 2866 lbs.

Dimensions

Length

4778 mm 188.11 in.

Width

1859 mm 73.19 in.

Width including mirrors

2079 mm 81.85 in.

Height

1420 mm 55.91 in.

Wheelbase

2793 mm 109.96 in.

Minimum turning circle (turning diameter)

10.8 m 35.43 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

8 gears, automatic transmission e-EAT

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 304x28 mm

Rear brakes

Disc, 268x12 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

215/55 R17; 235/45 R18; 235/40 R19

Wheel rim size

17; 18; 19

Specs of Peugeot 508 II SW (Phase II, 2023) 1.6 PureTech (225 Hp) Plug-in Hybrid e-EAT8 /2023, 2024, 2025, 2026/
