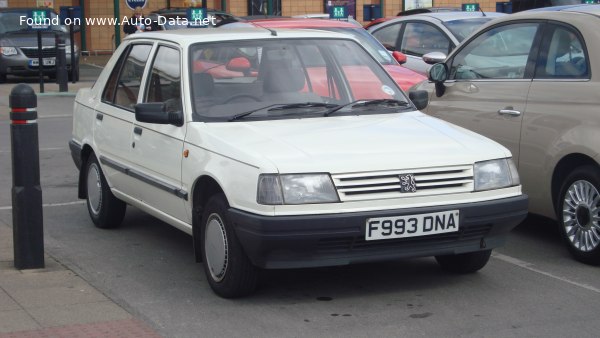

Peugeot 309 (10C,10A) 1.6 (80 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

Peugeot 309 (10C,10A) 1.6 (80 Hp) Automatic /Hatchback 1987 - 1989/

What is the body type of Peugeot 309 (10C,10A)?

Hatchback, 5 Doors, 5 Seats

How fast is 1987 309 (10C,10A) 1.6 (80 Hp) Automatic?

165 km/h | 103 mph
0-100 km/h: 16 sec
0-60 mph: 15.2 sec

What is the power output of Peugeot 309 Hatchback 1987 1.6 (80 Hp) Automatic?

80 Hp, 132 Nm
97 lb.-ft.

What is the engine displacement of Peugeot 309 Hatchback 1987 1.6 (80 Hp) Automatic?

1.6 l
1580 cm³
96.42 cu. in.

What is the number of cylinders in 1987 Peugeot 1.6 (80 Hp) Automatic?

4, Inline

What is the drivetrain of Peugeot 309 (10C,10A) Hatchback 1987 1.6 (80 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1987 Peugeot 309 Hatchback?

4051 mm
159.49 in.

What is the width of 1987 Peugeot 309 Hatchback?

1628 mm
64.09 in.

What is the kerb weight of 1987 Peugeot 309 (10C,10A) 1.6 (80 Hp) Automatic?

901 kg
1986 lbs.

What is the maximum permissible mass of 1987 Peugeot 309 (10C,10A) 1.6 (80 Hp) Automatic?

1330 kg
2932 lbs.

What is the trunk (boot) capacity of 1987 Peugeot 309 Hatchback?

397 - 1279 l
14 - 45.2 cu. ft.

What is the number of gears in What is the gearbox type of 1987 Peugeot 309 (10C,10A) 1.6 (80 Hp) Automatic?

4, automatic transmission

Peugeot
- Peugeot 309
  - 309 (10C,10A)
    - 1.9 GTI (120 Hp)
    - 1.9 D (64 Hp)
    - 1.9 (98 Hp)
    - 1.9 (109 Hp)
    - 1.9 (102 Hp)
    - 1.6 (94 Hp)
    - 1.6 (80 Hp) Automatic
    - 1.6 (75 Hp)
    - 1.6 (105 Hp)
    - 1.3 (64 Hp)
    - 1.1 (54 Hp)

Compare

General information

Brand

Peugeot

Model

309

Generation

309 (10C,10A)

Modification (Engine)

1.6 (80 Hp) Automatic

Start of production

1987 year

End of production

1989 year

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

Looking for Peugeot 309 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

8.5 l/100 km 27.7 US mpg
33.2 UK mpg
11.8 km/l

Fuel consumption (economy) - extra urban

5.8 l/100 km 40.6 US mpg
48.7 UK mpg
17.2 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

16 sec

Acceleration 0 - 62 mph

16 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

15.2 sec

Maximum speed

165 km/h 103 mph

Weight-to-power ratio

11.3 kg/Hp, 88.8 Hp/tonne

Weight-to-torque ratio

6.8 kg/Nm, 146.5 Nm/tonne

Engine specs

Power

80 Hp @ 5600 rpm.

Power per litre

50.6 Hp/l

Torque

132 Nm @ 2800 rpm. 97 lb.-ft. @ 2800 rpm.

Engine layout

Front, Transverse

Engine Model/Code

XU51C

Engine displacement

1580 cm³ 96.42 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

83 mm 3.27 in.

Piston Stroke

73 mm 2.87 in.

Compression ratio

9.4:1

Number of valves per cylinder

Fuel injection system

Carburettor

Engine aspiration

Naturally aspirated engine

Valvetrain

OHC

Engine oil capacity

5 l 5.28 US qt | 4.4 UK qt

Engine oil specification

Coolant

7.5 l 7.93 US qt | 6.6 UK qt

Volume and weights

Kerb Weight

901 kg 1986 lbs.

Max. weight

1330 kg 2932 lbs.

Max load

429 kg 946 lbs.

Trunk (boot) space - minimum

397 l 14 cu. ft.

Trunk (boot) space - maximum

1279 l 45.2 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Permitted trailer load with brakes (12%)

800 kg 1764 lbs.

Dimensions

Length

4051 mm 159.49 in.

Width

1628 mm 64.09 in.

Height

1380 mm 54.33 in.

Wheelbase

2469 mm 97.2 in.

Front track

1408 mm 55.43 in.

Rear (Back) track

1376 mm 54.17 in.

Front overhang

753 mm 29.65 in.

Rear overhang

829 mm 32.64 in.

Drag coefficient (C_d)

0.33

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Torsion bar

Front brakes

Disc

Rear brakes

Drum

Steering type

Steering rack and pinion

Tires size

165/70 R13

Wheel rims size

Specs of Peugeot 309 (10C,10A) 1.6 (80 Hp) Automatic /1987, 1988, 1989/
