Peugeot 306 Hatchback (facelift 1997) 2.0i 16V (133 Hp) | Technical specs, data, fuel consumption, Dimensions

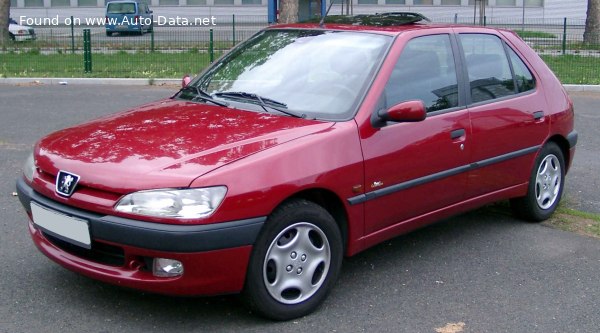

1997 Peugeot 306 Hatchback (facelift 1997) - Photo 1

Key specs

Peugeot 306 Hatchback (facelift 1997) 2.0i 16V (133 Hp) /Hatchback 1997 - 2002/

What is the body type of Peugeot 306 Hatchback (facelift 1997)?

Hatchback, 3-5 Doors, 5 Seats

How fast is 1997 306 Hatchback (facelift 1997) 2.0i 16V (133 Hp)?

201 km/h | 125 mph
0-100 km/h: 10.4 sec
0-60 mph: 9.9 sec

What is the power output of Peugeot 306 Hatchback 1997 2.0i 16V (133 Hp)?

133 Hp, 180 Nm
133 lb.-ft.

What is the engine displacement of Peugeot 306 Hatchback 1997 2.0i 16V (133 Hp)?

2.0 l
1998 cm³
121.93 cu. in.

What is the number of cylinders in 1997 Peugeot 2.0i 16V (133 Hp)?

4, Inline

What is the drivetrain of Peugeot 306 Hatchback (facelift 1997) Hatchback 1997 2.0i 16V (133 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1997 Peugeot 306 Hatchback?

4030 mm
158.66 in.

What is the width of 1997 Peugeot 306 Hatchback?

1689 mm
66.5 in.

What is the kerb weight of 1997 Peugeot 306 Hatchback (facelift 1997) 2.0i 16V (133 Hp)?

1160 kg
2557 lbs.

What is the maximum permissible mass of 1997 Peugeot 306 Hatchback (facelift 1997) 2.0i 16V (133 Hp)?

1625 kg
3583 lbs.

What is the trunk (boot) capacity of 1997 Peugeot 306 Hatchback?

338 - 1146 l
11.9 - 40.5 cu. ft.

What are the number of gears and the gearbox type of 1997 Peugeot 306 Hatchback (facelift 1997) 2.0i 16V (133 Hp)?

5, manual transmission

Peugeot
- Peugeot 306
  - 306 Hatchback (facelift 1997)

Compare

General information

Brand

Peugeot

Model

306

Generation

306 Hatchback (facelift 1997)

Modification (Engine)

2.0i 16V (133 Hp)

Start of production

1997

End of production

2002

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

3-5

Looking for Peugeot 306 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

12.8 l/100 km 18.4 US mpg
22.1 UK mpg
7.8 km/l

Fuel consumption (economy) - extra urban

7 l/100 km 33.6 US mpg
40.4 UK mpg
14.3 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

10.4 sec

Acceleration 0 - 62 mph

10.4 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

9.9 sec

Maximum speed

201 km/h 125 mph

Weight-to-power ratio

8.7 kg/Hp, 114.7 Hp/tonne

Weight-to-torque ratio

6.4 kg/Nm, 155.2 Nm/tonne

Engine specs

Power

133 Hp @ 5500 rpm.

Power per litre

66.6 Hp/l

Torque

180 Nm @ 4200 rpm. 133 lb.-ft. @ 4200 rpm.

Engine layout

Front, Transverse

Engine Model/Code

RFV XU10J4R

Engine displacement

1998 cm³ 121.93 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

86 mm 3.39 in.

Piston Stroke

86 mm 3.39 in.

Compression ratio

11:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

7.5 l 7.93 US qt | 6.6 UK qt

Volume and weights

Kerb Weight

1160 kg 2557 lbs.

Max. weight

1625 kg 3583 lbs.

Max load

465 kg 1025 lbs.

Trunk (boot) space - minimum

338 l 11.9 cu. ft.

Trunk (boot) space - maximum

1146 l 40.5 cu. ft.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

Dimensions

Length

4030 mm 158.66 in.

Width

1689 mm 66.5 in.

Height

1380 mm 54.33 in.

Wheelbase

2580 mm 101.57 in.

Front track

1454 mm 57.24 in.

Rear (Back) track

1423 mm 56.02 in.

Ride height (ground clearance)

120 mm 4.72 in.

Drag coefficient (C_d)

0.33

Minimum turning circle (turning diameter)

11.0 m 36.09 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Wishbone

Rear suspension

Trailing arm

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

195/55 R15

Wheel rim size

Specs of Peugeot 306 Hatchback (facelift 1997) 2.0i 16V (133 Hp) /1997, 1998, 1999, 2000, 2001, 2002/
