Peugeot 204 1.1 (53 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

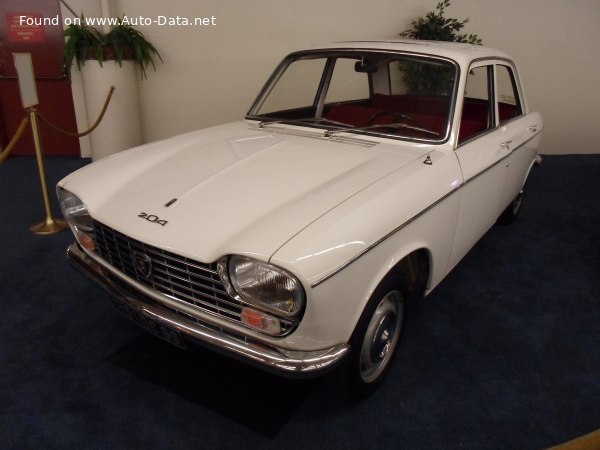

Peugeot 204 1.1 (53 Hp) /Sedan 1965 - 1969/

What is the body type of Peugeot 204?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Peugeot 204 1.1 (53 Hp)?

6.5-8.5 l/100 km
36.2 - 27.7 US mpg
43.5 - 33.2 UK mpg
15.4 - 11.8 km/l

How fast is 1965 204 1.1 (53 Hp)?

138 km/h | 86 mph

What is the power output of Peugeot 204 Sedan 1965 1.1 (53 Hp)?

53 Hp, 82 Nm
60 lb.-ft.

What is the engine displacement of Peugeot 204 Sedan 1965 1.1 (53 Hp)?

1.1 l
1130 cm³
68.96 cu. in.

What is the number of cylinders in 1965 Peugeot 1.1 (53 Hp)?

4, Inline

What is the drivetrain of Peugeot 204 Sedan 1965 1.1 (53 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 1965 Peugeot 204 Sedan?

3970 mm
156.3 in.

What is the width of 1965 Peugeot 204 Sedan?

1560 mm
61.42 in.

What is the kerb weight of 1965 Peugeot 204 1.1 (53 Hp)?

850 kg
1874 lbs.

What is the maximum permissible mass of 1965 Peugeot 204 1.1 (53 Hp)?

1275 kg
2811 lbs.

What is the trunk (boot) capacity of 1965 Peugeot 204 Sedan?

370 l
13.1 cu. ft.

What are the number of gears and the gearbox type of 1965 Peugeot 204 1.1 (53 Hp)?

4, manual transmission

Peugeot
- Peugeot 204
  - 204
    - 1.1 (58 Hp)
    - 1.1 (55 Hp)
    - 1.1 (53 Hp)

Compare

General information

Brand

Peugeot

Model

204

Generation

204

Modification (Engine)

1.1 (53 Hp)

Start of production

1965

End of production

1969

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Peugeot 204 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

6.5-8.5 l/100 km 36.2 - 27.7 US mpg
43.5 - 33.2 UK mpg
15.4 - 11.8 km/l

Fuel Type

Petrol (Gasoline)

Maximum speed

138 km/h 86 mph

Weight-to-power ratio

16 kg/Hp, 62.4 Hp/tonne

Weight-to-torque ratio

10.4 kg/Nm, 96.5 Nm/tonne

Engine specs

Power

53 Hp @ 5800 rpm.

Power per litre

46.9 Hp/l

Torque

82 Nm 60 lb.-ft.

Engine layout

Front, Transverse

Engine Model/Code

Engine displacement

1130 cm³ 68.96 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

75 mm 2.95 in.

Piston Stroke

64 mm 2.52 in.

Compression ratio

8.8:1

Number of valves per cylinder

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Coolant

5.8 l 6.13 US qt | 5.1 UK qt

Volume and weights

Kerb Weight

850 kg 1874 lbs.

Max. weight

1275 kg 2811 lbs.

Max load

425 kg 937 lbs.

Trunk (boot) space - minimum

370 l 13.1 cu. ft.

Fuel tank capacity

42 l 11.1 US gal | 9.24 UK gal

Permitted trailer load with brakes (12%)

850 kg 1874 lbs.

Dimensions

Length

3970 mm 156.3 in.

Width

1560 mm 61.42 in.

Height

1400 mm 55.12 in.

Wheelbase

2590 mm 101.97 in.

Front track

1320 mm 51.97 in.

Rear (Back) track

1250 mm 49.21 in.

Ride height (ground clearance)

140 mm 5.51 in.

Minimum turning circle (turning diameter)

10.3 m 33.79 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Trailing arm

Front brakes

Disc

Rear brakes

Drum

Steering type

Steering rack and pinion

Specs of Peugeot 204 1.1 (53 Hp) /1965, 1966, 1967, 1968, 1969/
