Opel Manta A 1.6 (68 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

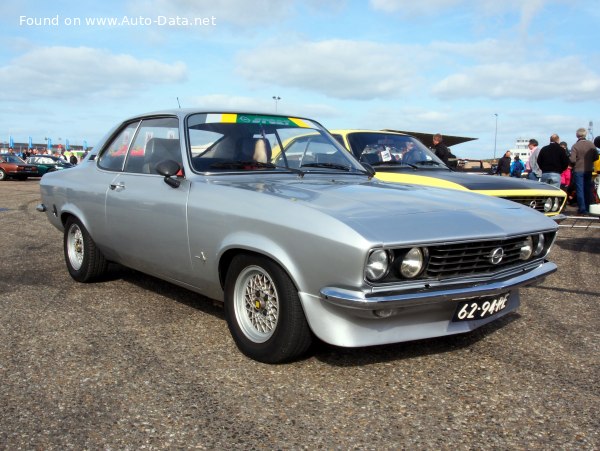

Opel Manta A 1.6 (68 Hp) /Coupe 1970 - 1975/

What is the body type of Opel Manta A?

Coupe, 2 Doors, 4 Seats

How fast is 1970 Manta A 1.6 (68 Hp)?

154 km/h | 96 mph
0-100 km/h: 17 sec
0-60 mph: 16.2 sec

What is the power output of Opel Manta Coupe 1970 1.6 (68 Hp)?

68 Hp, 108 Nm
80 lb.-ft.

What is the engine displacement of Opel Manta Coupe 1970 1.6 (68 Hp)?

1.6 l
1584 cm³
96.66 cu. in.

What is the number of cylinders in 1970 Opel 1.6 (68 Hp)?

4, Inline

What is the drivetrain of Opel Manta A Coupe 1970 1.6 (68 Hp)?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1970 Opel Manta Coupe?

4292 mm
168.98 in.

What is the width of 1970 Opel Manta Coupe?

1626 mm
64.02 in.

What is the kerb weight of 1970 Opel Manta A 1.6 (68 Hp)?

930 kg
2050 lbs.

What is the maximum permissible mass of 1970 Opel Manta A 1.6 (68 Hp)?

1295 kg
2855 lbs.

What is the trunk (boot) capacity of 1970 Opel Manta Coupe?

326 l
11.5 cu. ft.

What are the number of gears and the gearbox type of 1970 Opel Manta A 1.6 (68 Hp)?

4, manual transmission

Opel
- Opel Manta
  - Manta A
    - 1.9 S (90 Hp)
    - 1.9 S (88 Hp)
    - 1.9 GT/E (105 Hp)
    - 1.6 S (80 Hp)
    - 1.6 (75 Hp)
    - 1.6 (68 Hp)
    - 1.6 (60 Hp)
    - 1.2 (60 Hp)

Compare

General information

Brand

Opel

Model

Manta

Generation

Manta A

Modification (Engine)

1.6 (68 Hp)

Start of production

1970

End of production

1975

Powertrain Architecture

Internal Combustion engine

Body type

Coupe

Seats

Doors

Looking for Opel Manta on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

17 sec

Acceleration 0 - 62 mph

17 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

16.2 sec

Maximum speed

154 km/h 96 mph

Weight-to-power ratio

13.7 kg/Hp, 73.1 Hp/tonne

Weight-to-torque ratio

8.6 kg/Nm, 116.1 Nm/tonne

Engine specs

Power

68 Hp @ 5200 rpm.

Power per litre

42.9 Hp/l

Torque

108 Nm @ 3400 rpm. 80 lb.-ft. @ 3400 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

16N

Engine displacement

1584 cm³ 96.66 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

85 mm 3.35 in.

Piston Stroke

69.8 mm 2.75 in.

Compression ratio

8.2:1

Number of valves per cylinder

Fuel injection system

Carburettor

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC

Engine oil capacity

3.8 l 4.02 US qt | 3.34 UK qt

Engine oil specification

Coolant

6.5 l 6.87 US qt | 5.72 UK qt

Volume and weights

Kerb Weight

930 kg 2050 lbs.

Max. weight

1295 kg 2855 lbs.

Max load

365 kg 805 lbs.

Trunk (boot) space - minimum

326 l 11.5 cu. ft.

Fuel tank capacity

46 l 12.15 US gal | 10.12 UK gal

Permitted trailer load with brakes (12%)

1000 kg 2205 lbs.

Permitted trailer load without brakes

500 kg 1102 lbs.

Dimensions

Length

4292 mm 168.98 in.

Width

1626 mm 64.02 in.

Height

1360 mm 53.54 in.

Wheelbase

2430 mm 95.67 in.

Front track

1331 mm 52.4 in.

Rear (Back) track

1320 mm 51.97 in.

Minimum turning circle (turning diameter)

10.5 m 34.45 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front brakes

Disc

Rear brakes

Drum

Specs of Opel Manta A 1.6 (68 Hp) /1970, 1971, 1972, 1973, 1974, 1975/
