Opel Insignia Hatchback (A) 1.8i (140 Hp) | Technical specs, data, fuel consumption, Dimensions

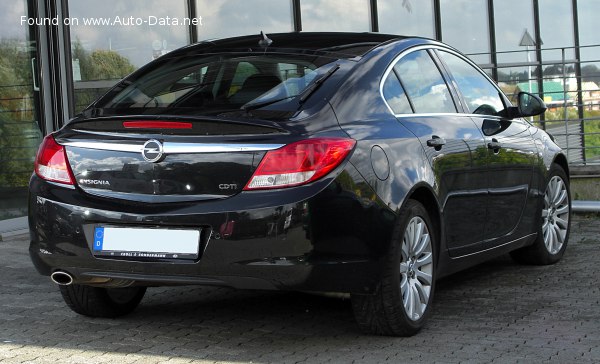

2009 Opel Insignia Hatchback (A) - Photo 1

Key specs

Opel Insignia Hatchback (A) 1.8i (140 Hp) /Hatchback 2008 - 2011/

What is the body type of Opel Insignia Hatchback (A)?

Hatchback, 5 Doors, 5 Seats

What is the fuel consumption and economy of Opel Insignia Hatchback (A) 1.8i (140 Hp)?

7.6 l/100 km
30.9 US mpg
37.2 UK mpg
13.2 km/l

How environmentally friendly is Opel Insignia 1.8i (140 Hp)?

169 g/km CO₂
Euro 5

How fast is 2008 Insignia Hatchback (A) 1.8i (140 Hp)?

206 km/h | 128 mph
0-100 km/h: 11.9 sec
0-60 mph: 11.3 sec

What is the power output of Opel Insignia Hatchback 2008 1.8i (140 Hp)?

140 Hp, 175 Nm
129 lb.-ft.

What is the engine displacement of Opel Insignia Hatchback 2008 1.8i (140 Hp)?

1.8 l
1796 cm³
109.6 cu. in.

What is the number of cylinders in 2008 Opel 1.8i (140 Hp)?

4, Inline

What is the drivetrain of Opel Insignia Hatchback (A) Hatchback 2008 1.8i (140 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2008 Opel Insignia Hatchback?

4830 mm
190.16 in.

What is the width of 2008 Opel Insignia Hatchback?

1856 mm
73.07 in.

What is the kerb weight of 2008 Opel Insignia Hatchback (A) 1.8i (140 Hp)?

1470 kg
3241 lbs.

What is the maximum permissible mass of 2008 Opel Insignia Hatchback (A) 1.8i (140 Hp)?

2020 kg
4453 lbs.

What is the trunk (boot) capacity of 2008 Opel Insignia Hatchback?

520 - 1465 l
18.4 - 51.7 cu. ft.

What are the number of gears and the gearbox type of 2008 Opel Insignia Hatchback (A) 1.8i (140 Hp)?

6, manual transmission

Compare

General information

Brand

Opel

Model

Insignia

Generation

Insignia Hatchback (A)

Modification (Engine)

1.8i (140 Hp)

Start of production

November, 2008

End of production

June, 2011

Powertrain Architecture

Internal Combustion engine

Body type

Hatchback

Seats

Doors

Looking for Opel Insignia on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

10.8 l/100 km 21.8 US mpg
26.2 UK mpg
9.3 km/l

Fuel consumption (economy) - extra urban

5.8 l/100 km 40.6 US mpg
48.7 UK mpg
17.2 km/l

Fuel consumption (economy) - combined

7.6 l/100 km 30.9 US mpg
37.2 UK mpg
13.2 km/l

CO₂ emissions

169 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

11.9 sec

Acceleration 0 - 62 mph

11.9 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

11.3 sec

Maximum speed

206 km/h 128 mph

Emission standard

Euro 5

Weight-to-power ratio

10.5 kg/Hp, 95.2 Hp/tonne

Weight-to-torque ratio

8.4 kg/Nm, 119 Nm/tonne

Engine specs

Power

140 Hp @ 6300 rpm.

Power per litre

78 Hp/l

Torque

175 Nm @ 3800 rpm. 129 lb.-ft. @ 3800 rpm.

Engine layout

Front, Transverse

Engine Model/Code

A18XER

Engine displacement

1796 cm³ 109.6 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

80.5 mm 3.17 in.

Piston Stroke

88.2 mm 3.47 in.

Compression ratio

10.5:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

5.6 l 5.92 US qt | 4.93 UK qt

Volume and weights

Kerb Weight

1470 kg 3241 lbs.

Max. weight

2020 kg 4453 lbs.

Max load

550 kg 1213 lbs.

Trunk (boot) space - minimum

520 l 18.4 cu. ft.

Trunk (boot) space - maximum

1465 l 51.7 cu. ft.

Fuel tank capacity

70 l 18.49 US gal | 15.4 UK gal

Dimensions

Length

4830 mm 190.16 in.

Width

1856 mm 73.07 in.

Height

1498 mm 58.98 in.

Wheelbase

2737 mm 107.76 in.

Front track

1585 mm 62.4 in.

Rear (Back) track

1587 mm 62.48 in.

Ride height (ground clearance)

160 mm 6.3 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Tire size

215/60 R16

Wheel rim size

Specs of Opel Insignia Hatchback (A) 1.8i (140 Hp) /2008, 2009, 2010, 2011/
