Opel Astra L Sports Tourer 54 kWh (156 Hp) Electric | Technical specs, data, battery, electric range, Dimensions

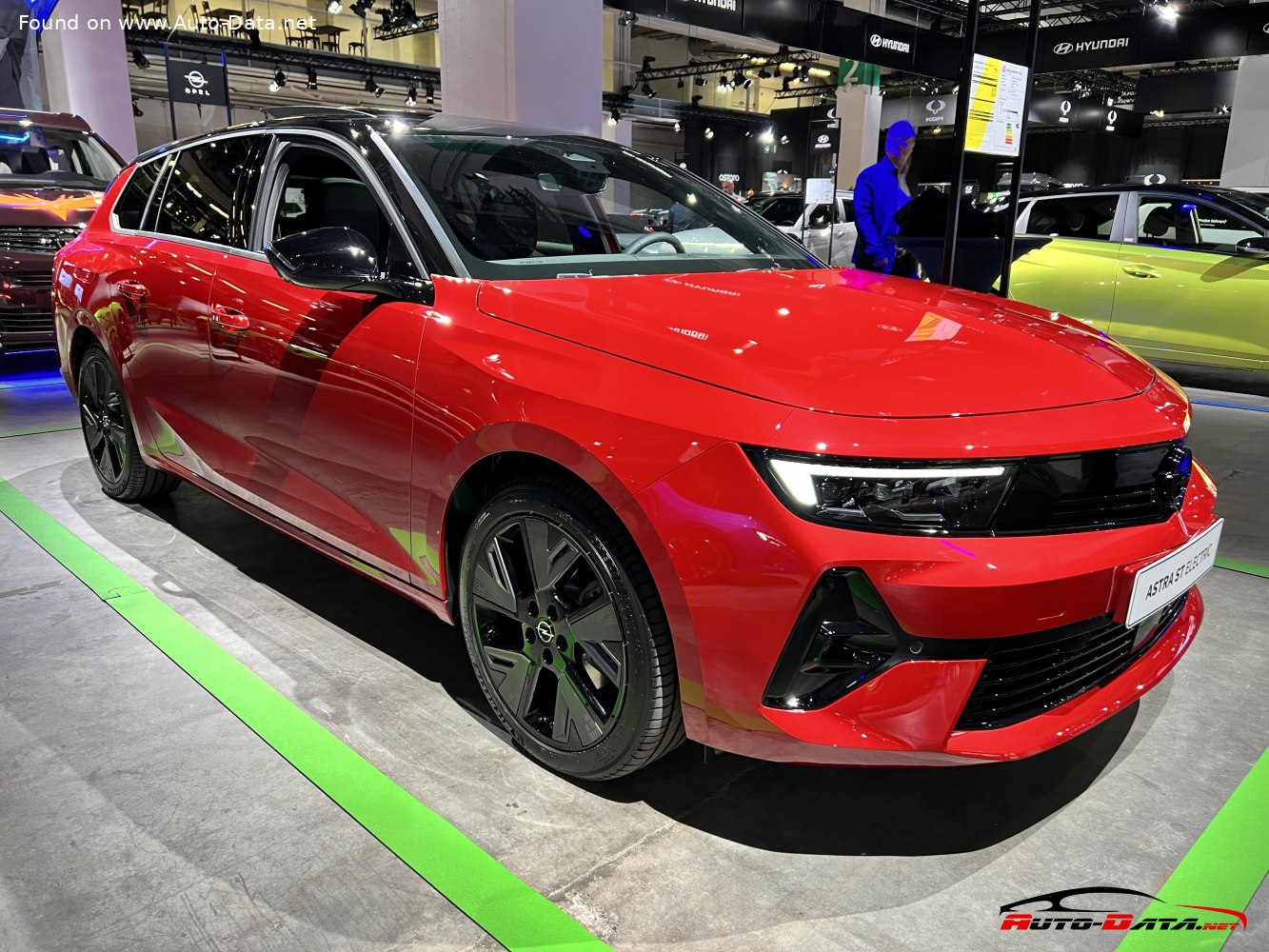

2022 Opel Astra L Sports Tourer - Photo 1

Key specs

Opel Astra L Sports Tourer 54 kWh (156 Hp) Electric /Station wagon (estate) 2023 - 2026/

What is the body type of Opel Astra L Sports Tourer?

Station wagon (estate), 5 Doors, 5 Seats

What is the all-electric range of 54 kWh (156 Hp) Electric?

413 km
257 mi

What is the electricity consumption of Opel Astra L Sports Tourer 54 kWh (156 Hp) Electric?

15-15.8 kWh/100 km
24.14 - 25.43 kWh/100 mi
140 - 133 MPGe
6.7 - 6.3 km/kWh
4.1 - 3.9 mi/kWh

How fast is 2023 Astra L Sports Tourer 54 kWh (156 Hp) Electric?

170 km/h | 106 mph
0-100 km/h: 9.3 sec
0-60 mph: 8.8 sec

What is the power output of Opel Astra Station wagon (estate) 2023 54 kWh (156 Hp) Electric?

156 Hp, 270 Nm
199 lb.-ft.

What is the drivetrain of Opel Astra L Sports Tourer Station wagon (estate) 2023 54 kWh (156 Hp) Electric?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2023 Opel Astra Station wagon (estate)?

4642 mm
182.76 in.

What is the width of 2023 Opel Astra Station wagon (estate)?

1860 mm
73.23 in.

What is the kerb weight of 2023 Opel Astra L Sports Tourer 54 kWh (156 Hp) Electric?

1685-1710 kg
3715 - 3770 lbs.

What is the maximum permissible mass of 2023 Opel Astra L Sports Tourer 54 kWh (156 Hp) Electric?

2200 kg
4850 lbs.

What is the trunk (boot) capacity of 2023 Opel Astra Station wagon (estate)?

516 - 1553 l
18.2 - 54.8 cu. ft.

What is the number of gears in What is the gearbox type of 2023 Opel Astra L Sports Tourer 54 kWh (156 Hp) Electric?

1, automatic transmission

Opel
- Opel Astra
  - Astra L Sports Tourer

Compare

General information

Brand

Opel

Model

Astra

Generation

Astra L Sports Tourer

Modification (Engine)

54 kWh (156 Hp) Electric

Start of production

2023 year

End of production

2026 year

Powertrain Architecture

BEV (Electric Vehicle)

Body type

Station wagon (estate)

Seats

Doors

Looking for Opel Astra on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

9.3 sec

Acceleration 0 - 62 mph

9.3 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.8 sec

Maximum speed

170 km/h 106 mph

Weight-to-power ratio

10.8 kg/Hp, 92.6 Hp/tonne

Weight-to-torque ratio

6.2 kg/Nm, 160.2 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

54 kWh

Net (usable) battery capacity

51 kWh

Battery technology

Lithium-ion (Li-Ion)

Battery weight

339 kg 747 lbs.

Battery location

Below the floor

Electric range (WLTP)

413 km 257 mi

Average Energy consumption (WLTP)

15-15.8 kWh/100 km 24.14 - 25.43 kWh/100 mi
140 - 133 MPGe
6.7 - 6.3 km/kWh
4.1 - 3.9 mi/kWh

Charging ports

Electric motor 1

Electric motor power

156 Hp @ 4070-7500 rpm.

Electric motor Torque

270 Nm @ 500-4060 rpm. 199 lb.-ft. @ 500-4060 rpm.

Electric motor model/code

ZK02

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

156 Hp @ 4070-7500 rpm.

System torque

270 Nm @ 500-4060 rpm. 199 lb.-ft. @ 500-4060 rpm.

Volume and weights

Kerb Weight

1685-1710 kg 3715 - 3770 lbs.

Max. weight

2200 kg 4850 lbs.

Max load

490-515 kg 1080 - 1135 lbs.

Trunk (boot) space - minimum

516 l 18.2 cu. ft.

Trunk (boot) space - maximum

1553 l 54.8 cu. ft.

Permitted towbar download

80 kg 176 lbs.

Dimensions

Length

4642 mm 182.76 in.

Width with mirrors folded

1860 mm 73.23 in.

Width including mirrors

2062 mm 81.18 in.

Height

1481 mm 58.31 in.

Wheelbase

2732 mm 107.56 in.

Front track

1551-1559 mm 61.06 - 61.38 in.

Rear (Back) track

1546-1554 mm 60.87 - 61.18 in.

Front overhang

906 mm 35.67 in.

Rear overhang

1004 mm 39.53 in.

Minimum turning circle (turning diameter)

10.59 m 34.74 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Coil spring, Torsion bar

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

215/45 R18

Wheel rims size

7.5J x 18

Specs of Opel Astra L Sports Tourer 54 kWh (156 Hp) Electric /2023, 2024, 2025, 2026/
