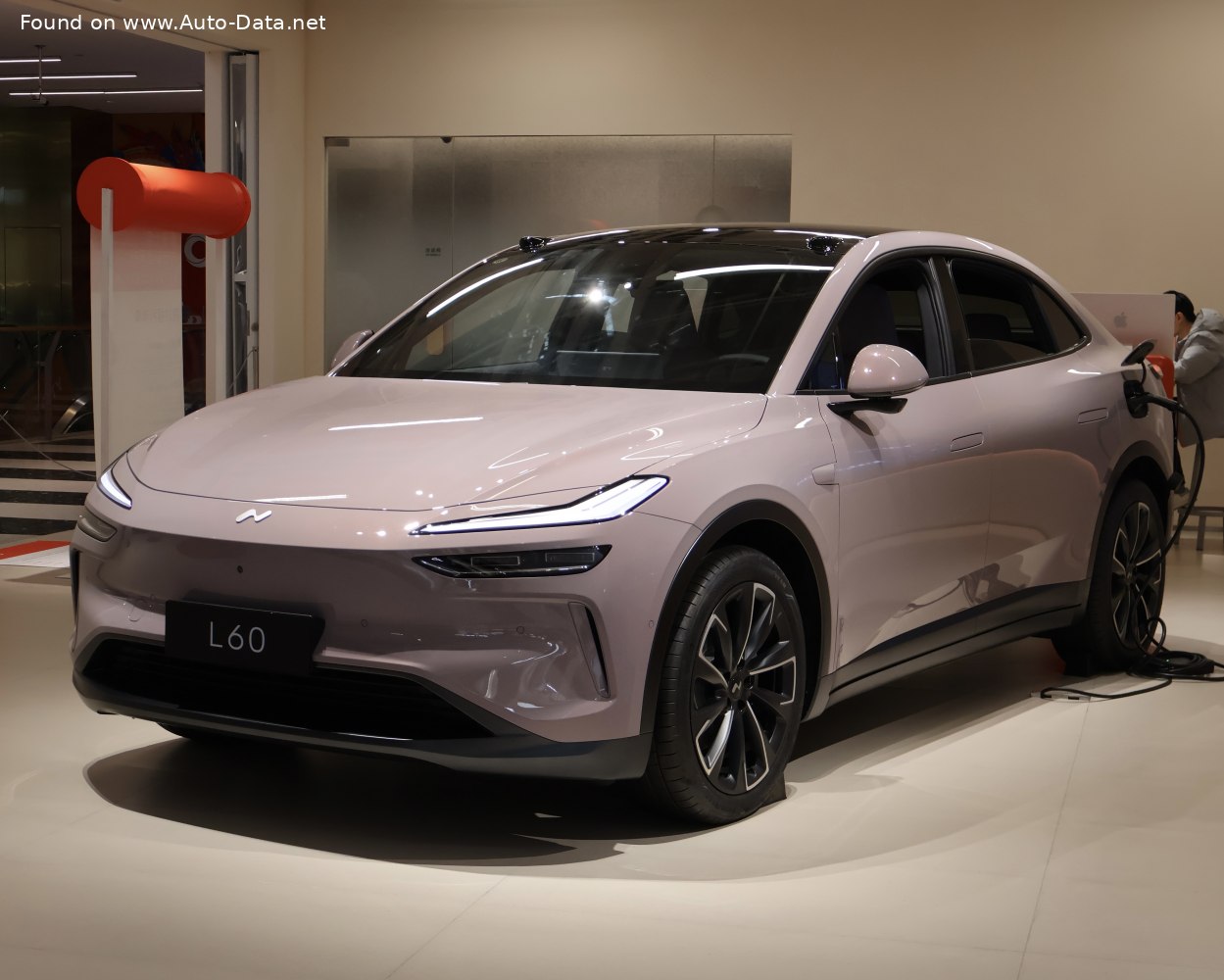

Onvo L60 85 kWh (326 Hp) Long Range | Technical specs, data, battery, electric range, Dimensions

Key specs

Onvo L60 85 kWh (326 Hp) Long Range /SUV 2024 - /

What is the body type of Onvo L60?

SUV, 5 Doors, 5 Seats

What is the all-electric range of 85 kWh (326 Hp) Long Range?

700-730 km
435 - 454 mi

What is the electricity consumption of Onvo L60 85 kWh (326 Hp) Long Range?

12.1-12.7 kWh/100 km
19.47 - 20.44 kWh/100 mi
173 - 165 MPGe
8.3 - 7.9 km/kWh
5.1 - 4.9 mi/kWh

How fast is 2024 L60 85 kWh (326 Hp) Long Range?

200 km/h | 124 mph
0-100 km/h: 5.9 sec
0-60 mph: 5.6 sec

What is the power output of Onvo L60 SUV 2024 85 kWh (326 Hp) Long Range?

326 Hp, 305 Nm
225 lb.-ft.

What is the drivetrain of Onvo L60 SUV 2024 85 kWh (326 Hp) Long Range?

Rear wheel drive. BEV (Electric Vehicle). One electric motor drives the rear wheels.

What is the length of 2024 Onvo L60 SUV?

4828 mm
190.08 in.

What is the width of 2024 Onvo L60 SUV?

1930 mm
75.98 in.

What is the kerb weight of 2024 Onvo L60 85 kWh (326 Hp) Long Range?

1895-1910 kg
4178 - 4211 lbs.

What is the maximum permissible mass of 2024 Onvo L60 85 kWh (326 Hp) Long Range?

2320 kg
5115 lbs.

What is the trunk (boot) capacity of 2024 Onvo L60 SUV?

495 - 1505 l
17.5 - 53.1 cu. ft.

What are the number of gears and the gearbox type of 2024 Onvo L60 85 kWh (326 Hp) Long Range?

1, automatic transmission

Onvo
- Onvo L60
  - L60
    - 85 kWh (462 Hp) 4WD Long Range
    - 85 kWh (326 Hp) Long Range
    - 60 kWh (462 Hp) 4WD Standard Range
    - 60 kWh (326 Hp) Standard Range

Compare

General information

Brand

Onvo

Model

L60

Generation

L60

Modification (Engine)

85 kWh (326 Hp) Long Range

Start of production

September, 2024

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV

Seats

Doors

Looking for Onvo L60 on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

5.9 sec

Acceleration 0 - 62 mph

5.9 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

5.6 sec

Maximum speed

200 km/h 124 mph

100 km/h - 0

36.8 m

Weight-to-power ratio

5.8 kg/Hp, 172 Hp/tonne

Weight-to-torque ratio

6.2 kg/Nm, 160.9 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

85 kWh

Battery voltage

900 V

Battery technology

Lithium nickel manganese cobalt oxides (Li-NMC)

Battery location

Below the floor

Electric range (CLTC)

700-730 km 435 - 454 mi

Average Energy consumption (CLTC)

12.1-12.7 kWh/100 km 19.47 - 20.44 kWh/100 mi
173 - 165 MPGe
8.3 - 7.9 km/kWh
5.1 - 4.9 mi/kWh

Charging ports

Electric motor 1

Electric motor power

326 Hp

Electric motor Torque

305 Nm 225 lb.-ft.

Electric motor model/code

TZ188S001

Maximum electric motor speed

18000 rpm.

Electric motor location

Rear axle, Transverse

Electric motor type

Synchronous

System power

326 Hp

System torque

305 Nm 225 lb.-ft.

Volume and weights

Kerb Weight

1895-1910 kg 4178 - 4211 lbs.

Max. weight

2320 kg 5115 lbs.

Max load

410-425 kg 904 - 937 lbs.

Trunk (boot) space - minimum

495 l 17.5 cu. ft.

Trunk (boot) space - maximum

1505 l 53.1 cu. ft.

Dimensions

Length

4828 mm 190.08 in.

Width

1930 mm 75.98 in.

Height

1616 mm 63.62 in.

Wheelbase

2950 mm 116.14 in.

Front track

1666 mm 65.59 in.

Rear (Back) track

1677 mm 66.02 in.

Front overhang

898 mm 35.35 in.

Rear overhang

980 mm 38.58 in.

Ride height (ground clearance)

175 mm 6.89 in.

Drag coefficient (C_d)

0.229

Minimum turning circle (turning diameter)

10.8 m 35.43 ft.

Approach angle

18°

Departure angle

21°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the rear wheels.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

245/50 R19; 245/45 R20

Wheel rim size

19; 20
