Nissan Sentra VII (B17) 1.8 (130 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

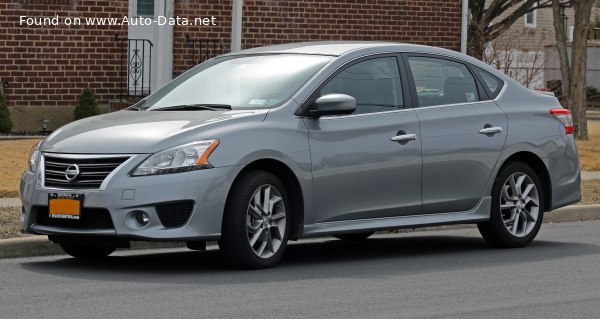

Nissan Sentra VII (B17) 1.8 (130 Hp) /Sedan 2012 - 2015/

What is the body type of Nissan Sentra VII (B17)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Nissan Sentra VII (B17) 1.8 (130 Hp)?

7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l

How environmentally friendly is Nissan Sentra 1.8 (130 Hp)?

LEV2-LEV

What is the power output of Nissan Sentra Sedan 2012 1.8 (130 Hp)?

130 Hp, 174 Nm
128 lb.-ft.

What is the engine displacement of Nissan Sentra Sedan 2012 1.8 (130 Hp)?

1.8 l
1797 cm³
109.66 cu. in.

What is the number of cylinders in 2012 Nissan 1.8 (130 Hp)?

4, Inline

What is the drivetrain of Nissan Sentra VII (B17) Sedan 2012 1.8 (130 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2012 Nissan Sentra Sedan?

4610 mm
181.5 in.

What is the width of 2012 Nissan Sentra Sedan?

1760 mm
69.29 in.

What is the kerb weight of 2012 Nissan Sentra VII (B17) 1.8 (130 Hp)?

1280 kg
2822 lbs.

What is the maximum permissible mass of 2012 Nissan Sentra VII (B17) 1.8 (130 Hp)?

1691 kg
3728 lbs.

What is the trunk (boot) capacity of 2012 Nissan Sentra Sedan?

428 l
15.1 cu. ft.

What is the number of gears in What is the gearbox type of 2012 Nissan Sentra VII (B17) 1.8 (130 Hp)?

6, manual transmission

Nissan
- Nissan Sentra
  - Sentra VII (B17)
    - 1.8 (130 Hp) Xtronic CVT
    - 1.8 (130 Hp)

Compare

General information

Brand

Nissan

Model

Sentra

Generation

Sentra VII (B17)

Modification (Engine)

1.8 (130 Hp)

Start of production

2012 year

End of production

2015 year

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Performance specs

Fuel consumption (economy) - urban (EPA)

8.7 l/100 km 27 US mpg
32.5 UK mpg
11.5 km/l

Fuel consumption (economy) - extra urban (EPA)

6.5 l/100 km 36.2 US mpg
43.5 UK mpg
15.4 km/l

Fuel consumption (economy) - combined (EPA)

7.8 l/100 km 30.2 US mpg
36.2 UK mpg
12.8 km/l

Fuel Type

Petrol (Gasoline)

Emission standard

LEV2-LEV

Weight-to-power ratio

9.8 kg/Hp, 101.6 Hp/tonne

Weight-to-torque ratio

7.4 kg/Nm, 135.9 Nm/tonne

Engine specs

Power

130 Hp @ 6000 rpm.

Power per litre

72.3 Hp/l

Torque

174 Nm @ 3600 rpm. 128 lb.-ft. @ 3600 rpm.

Maximum engine speed

6400 rpm.

Engine layout

Front, Transverse

Engine Model/Code

MRA8DE

Engine displacement

1797 cm³ 109.66 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

79.7 mm 3.14 in.

Piston Stroke

90.1 mm 3.55 in.

Compression ratio

9.9:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, CVTCS

Engine oil capacity

4 l 4.23 US qt | 3.52 UK qt

Engine oil specification

Coolant

6.6 l 6.97 US qt | 5.81 UK qt

Volume and weights

Kerb Weight

1280 kg 2822 lbs.

Max. weight

1691 kg 3728 lbs.

Max load

411 kg 906 lbs.

Trunk (boot) space - minimum

428 l 15.1 cu. ft.

Fuel tank capacity

50 l 13.21 US gal | 11 UK gal

Dimensions

Length

4610 mm 181.5 in.

Width

1760 mm 69.29 in.

Height

1495 mm 58.86 in.

Wheelbase

2700 mm 106.3 in.

Front track

1540 mm 60.63 in.

Rear (Back) track

1540 mm 60.63 in.

Front overhang

895 mm 35.24 in.

Rear overhang

1015 mm 39.96 in.

Ride height (ground clearance)

165 mm 6.5 in.

Drag coefficient (C_d)

0.29

Minimum turning circle (turning diameter)

10.4 m 34.12 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Anti-roll bar, Torsion bar

Front brakes

Ventilated discs, 279.4x22.86 mm

Rear brakes

Drum, 228.6 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

195/60 R16; 205/60 R16; 205/50 R17

Wheel rims size

6.5J x 16; 6.5J x 17

Specs of Nissan Sentra VII (B17) 1.8 (130 Hp) /2012, 2013, 2014, 2015/
