Nissan Navara III (D40 facelift 2010) 3.0 V6 (231 Hp) | Technical specs, data, fuel consumption, Dimensions

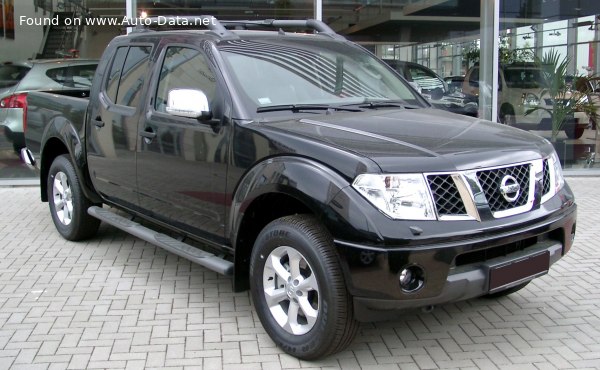

2010 Nissan Navara III (D40 facelift 2010) - Photo 1

Key specs

Nissan Navara III (D40 facelift 2010) 3.0 V6 (231 Hp) /Pick-up 2010 - 2015/

What is the body type of Nissan Navara III (D40 facelift 2010)?

Pick-up, 4 Doors, 5 Seats

What is the fuel consumption and economy of Nissan Navara III (D40 facelift 2010) 3.0 V6 (231 Hp)?

9.5 l/100 km
24.8 US mpg
29.7 UK mpg
10.5 km/l

How environmentally friendly is Nissan Navara 3.0 V6 (231 Hp)?

Euro 5

How fast is 2010 Navara III (D40 facelift 2010) 3.0 V6 (231 Hp)?

195 km/h | 121 mph
0-100 km/h: 9.3 sec
0-60 mph: 8.8 sec

What is the power output of Nissan Navara Pick-up 2010 3.0 V6 (231 Hp)?

231 Hp, 550 Nm
406 lb.-ft.

What is the engine displacement of Nissan Navara Pick-up 2010 3.0 V6 (231 Hp)?

3.0 l
2991 cm³
182.52 cu. in.

What is the number of cylinders in 2010 Nissan 3.0 V6 (231 Hp)?

6, V-engine

What is the drivetrain of Nissan Navara III (D40 facelift 2010) Pick-up 2010 3.0 V6 (231 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2010 Nissan Navara Pick-up?

5222 mm
205.59 in.

What is the width of 2010 Nissan Navara Pick-up?

1848 mm
72.76 in.

What is the kerb weight of 2010 Nissan Navara III (D40 facelift 2010) 3.0 V6 (231 Hp)?

2110 kg
4652 lbs.

What is the maximum permissible mass of 2010 Nissan Navara III (D40 facelift 2010) 3.0 V6 (231 Hp)?

2805 kg
6184 lbs.

What are the number of gears and the gearbox type of 2010 Nissan Navara III (D40 facelift 2010) 3.0 V6 (231 Hp)?

7, automatic transmission

Nissan
- Nissan Navara
  - Navara III (D40 facelift 2010)
    - 3.0 V6 (231 Hp)
    - 2.5 dCi (190 Hp)

Compare

General information

Brand

Nissan

Model

Navara

Generation

Navara III (D40 facelift 2010)

Modification (Engine)

3.0 V6 (231 Hp)

Start of production

2010

End of production

2015

Powertrain Architecture

Internal Combustion engine

Body type

Pick-up

Seats

Doors

Looking for Nissan Navara on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

12.7 l/100 km 18.5 US mpg
22.2 UK mpg
7.9 km/l

Fuel consumption (economy) - extra urban

7.6 l/100 km 30.9 US mpg
37.2 UK mpg
13.2 km/l

Fuel consumption (economy) - combined

9.5 l/100 km 24.8 US mpg
29.7 UK mpg
10.5 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

9.3 sec

Acceleration 0 - 62 mph

9.3 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.8 sec

Maximum speed

195 km/h 121 mph

Emission standard

Euro 5

Weight-to-power ratio

9.1 kg/Hp, 109.5 Hp/tonne

Weight-to-torque ratio

3.8 kg/Nm, 260.7 Nm/tonne

Engine specs

Power

231 Hp @ 3750 rpm.

Power per litre

77.2 Hp/l

Torque

550 Nm @ 1750 rpm. 406 lb.-ft. @ 1750 rpm.

Engine layout

Front, Transverse

Engine Model/Code

V9X

Engine displacement

2991 cm³ 182.52 cu. in.

Number of cylinders

Engine configuration

V-engine

Number of valves per cylinder

Fuel injection system

Precombustion chamber injection

Engine aspiration

Turbocharger, Intercooler

Engine oil capacity

7.1 l 7.5 US qt | 6.25 UK qt

Engine oil specification

Coolant

13.2 l 13.95 US qt | 11.61 UK qt

Engine systems

Particulate filter

Volume and weights

Kerb Weight

2110 kg 4652 lbs.

Max. weight

2805 kg 6184 lbs.

Max load

695 kg 1532 lbs.

Fuel tank capacity

80 l 21.13 US gal | 17.6 UK gal

Dimensions

Length

5222 mm 205.59 in.

Width

1848 mm 72.76 in.

Height

1795 mm 70.67 in.

Wheelbase

3200 mm 125.98 in.

Minimum turning circle (turning diameter)

13.3 m 43.64 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

7 gears, automatic transmission

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

255/65 R17; 255/60 R18

Wheel rim size

17; 18

Specs of Nissan Navara III (D40 facelift 2010) 3.0 V6 (231 Hp) /2010, 2011, 2012, 2013, 2014, 2015/
