Mercedes-Benz W128 Sedan 220 SE (115 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

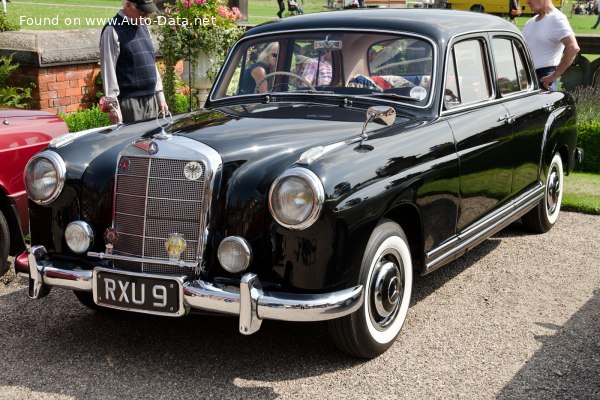

Mercedes-Benz W128 Sedan 220 SE (115 Hp) /Sedan 1958 - 1959/

What is the body type of Mercedes-Benz W128 Sedan?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Mercedes-Benz W128 Sedan 220 SE (115 Hp)?

10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l

How fast is 1958 W128 Sedan 220 SE (115 Hp)?

160 km/h | 99 mph
0-100 km/h: 15 sec
0-60 mph: 14.3 sec

What is the power output of Mercedes-Benz Ponton Sedan 1958 220 SE (115 Hp)?

115 Hp, 186 Nm
137 lb.-ft.

What is the engine displacement of Mercedes-Benz Ponton Sedan 1958 220 SE (115 Hp)?

2.2 l
2195 cm³
133.95 cu. in.

What is the number of cylinders in 1958 Mercedes-Benz 220 SE (115 Hp)?

6, Inline

What is the drivetrain of Mercedes-Benz W128 Sedan Sedan 1958 220 SE (115 Hp)?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1958 Mercedes-Benz Ponton Sedan?

4750 mm
187.01 in.

What is the width of 1958 Mercedes-Benz Ponton Sedan?

1740 mm
68.5 in.

What is the kerb weight of 1958 Mercedes-Benz W128 Sedan 220 SE (115 Hp)?

1345 kg
2965 lbs.

What is the maximum permissible mass of 1958 Mercedes-Benz W128 Sedan 220 SE (115 Hp)?

1810 kg
3990 lbs.

What is the number of gears in What is the gearbox type of 1958 Mercedes-Benz W128 Sedan 220 SE (115 Hp)?

4, manual transmission

Mercedes-Benz
- Mercedes-Benz Ponton
  - W128 Sedan
    - 220 SE (115 Hp) Hydrak
    - 220 SE (115 Hp)

Compare

General information

Brand

Mercedes-Benz

Model

Ponton

Generation

W128 Sedan

Modification (Engine)

220 SE (115 Hp)

Start of production

April, 1958 year

End of production

August, 1959 year

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Mercedes-Benz Ponton on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

10.7 l/100 km 22 US mpg
26.4 UK mpg
9.3 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

15 sec

Acceleration 0 - 62 mph

15 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

14.3 sec

Maximum speed

160 km/h 99 mph

Weight-to-power ratio

11.7 kg/Hp, 85.5 Hp/tonne

Weight-to-torque ratio

7.2 kg/Nm, 138.3 Nm/tonne

Engine specs

Power

115 Hp @ 4800 rpm.

Power per litre

52.4 Hp/l

Torque

186 Nm @ 3800 rpm. 137 lb.-ft. @ 3800 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M 127 I / 127.980

Engine displacement

2195 cm³ 133.95 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

80 mm 3.15 in.

Piston Stroke

72.8 mm 2.87 in.

Compression ratio

8.7:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC

Volume and weights

Kerb Weight

1345 kg 2965 lbs.

Max. weight

1810 kg 3990 lbs.

Max load

465 kg 1025 lbs.

Fuel tank capacity

62 l 16.38 US gal | 13.64 UK gal

Dimensions

Length

4750 mm 187.01 in.

Width

1740 mm 68.5 in.

Height

1560 mm 61.42 in.

Wheelbase

2820 mm 111.02 in.

Front track

1430 mm 56.3 in.

Rear (Back) track

1470 mm 57.87 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Double wishbone, Anti-roll bar

Rear suspension

Trailing arm

Front brakes

Drum

Rear brakes
