Mercedes-Benz W112 Cabriolet 300 SE (170 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

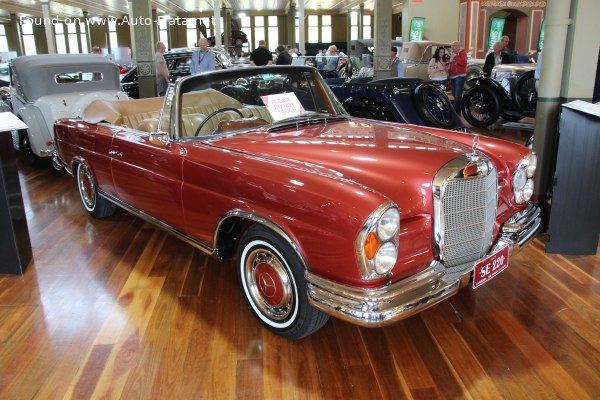

1962 Mercedes-Benz W112 Cabriolet - Photo 1

Key specs

Mercedes-Benz W112 Cabriolet 300 SE (170 Hp) Automatic /Cabriolet 1964 - 1967/

What is the body type of Mercedes-Benz W112 Cabriolet?

Cabriolet, 2 Doors, 5 Seats

What is the fuel consumption and economy of Mercedes-Benz W112 Cabriolet 300 SE (170 Hp) Automatic?

13.0-13.7 l/100 km
18.1 - 17.2 US mpg
21.7 - 20.6 UK mpg
7.7 - 7.3 km/l

How fast is 1964 W112 Cabriolet 300 SE (170 Hp) Automatic?

195 km/h | 121 mph
0-100 km/h: 11.4 sec
0-60 mph: 10.8 sec

What is the power output of Mercedes-Benz W112 Cabriolet 1964 300 SE (170 Hp) Automatic?

170 Hp, 249 Nm
184 lb.-ft.

What is the engine displacement of Mercedes-Benz W112 Cabriolet 1964 300 SE (170 Hp) Automatic?

3.0 l
2996 cm³
182.83 cu. in.

What is the number of cylinders in 1964 Mercedes-Benz 300 SE (170 Hp) Automatic?

6, Inline

What is the drivetrain of Mercedes-Benz W112 Cabriolet Cabriolet 1964 300 SE (170 Hp) Automatic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1964 Mercedes-Benz W112 Cabriolet?

4880 mm
192.13 in.

What is the width of 1964 Mercedes-Benz W112 Cabriolet?

1845 mm
72.64 in.

What is the kerb weight of 1964 Mercedes-Benz W112 Cabriolet 300 SE (170 Hp) Automatic?

1715 kg
3781 lbs.

What is the maximum permissible mass of 1964 Mercedes-Benz W112 Cabriolet 300 SE (170 Hp) Automatic?

2185 kg
4817 lbs.

What is the number of gears in What is the gearbox type of 1964 Mercedes-Benz W112 Cabriolet 300 SE (170 Hp) Automatic?

4, automatic transmission

Mercedes-Benz
- Mercedes-Benz W112
  - W112 Cabriolet
    - 300 SE (170 Hp) Automatic
    - 300 SE (170 Hp)
    - 300 SE (160 Hp) Automatic
    - 300 SE (160 Hp)

Compare

General information

Brand

Mercedes-Benz

Model

W112

Generation

W112 Cabriolet

Modification (Engine)

300 SE (170 Hp) Automatic

Start of production

January, 1964 year

End of production

December, 1967 year

Powertrain Architecture

Internal Combustion engine

Body type

Cabriolet

Seats

Doors

Looking for Mercedes-Benz W112 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined

13.0-13.7 l/100 km 18.1 - 17.2 US mpg
21.7 - 20.6 UK mpg
7.7 - 7.3 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

11.4 sec

Acceleration 0 - 62 mph

11.4 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.8 sec

Maximum speed

195 km/h 121 mph

Weight-to-power ratio

10.1 kg/Hp, 99.1 Hp/tonne

Weight-to-torque ratio

6.9 kg/Nm, 145.2 Nm/tonne

Engine specs

Power

170 Hp @ 5400 rpm.

Power per litre

56.7 Hp/l

Torque

249 Nm @ 4000 rpm. 184 lb.-ft. @ 4000 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M 189 VI / 189.987

Engine displacement

2996 cm³ 182.83 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

85 mm 3.35 in.

Piston Stroke

88 mm 3.46 in.

Compression ratio

8.8:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC

Volume and weights

Kerb Weight

1715 kg 3781 lbs.

Max. weight

2185 kg 4817 lbs.

Max load

470 kg 1036 lbs.

Fuel tank capacity

82 l 21.66 US gal | 18.04 UK gal

Dimensions

Length

4880 mm 192.13 in.

Width

1845 mm 72.64 in.

Height

1400 mm 55.12 in.

Wheelbase

2750 mm 108.27 in.

Front track

1482 mm 58.35 in.

Rear (Back) track

1490 mm 58.66 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Double wishbone, Anti-roll bar, Air suspension

Rear suspension

Air suspension, Anti-roll bar, Trailing arm

Front brakes

Disc

Rear brakes

Disc

Steering type

Cone worm with recirculation balls

Tires size

6J x 14

Specs of Mercedes-Benz W112 Cabriolet 300 SE (170 Hp) Automatic /1964, 1965, 1966, 1967/
