Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC | Technical specs, data, fuel consumption, Dimensions

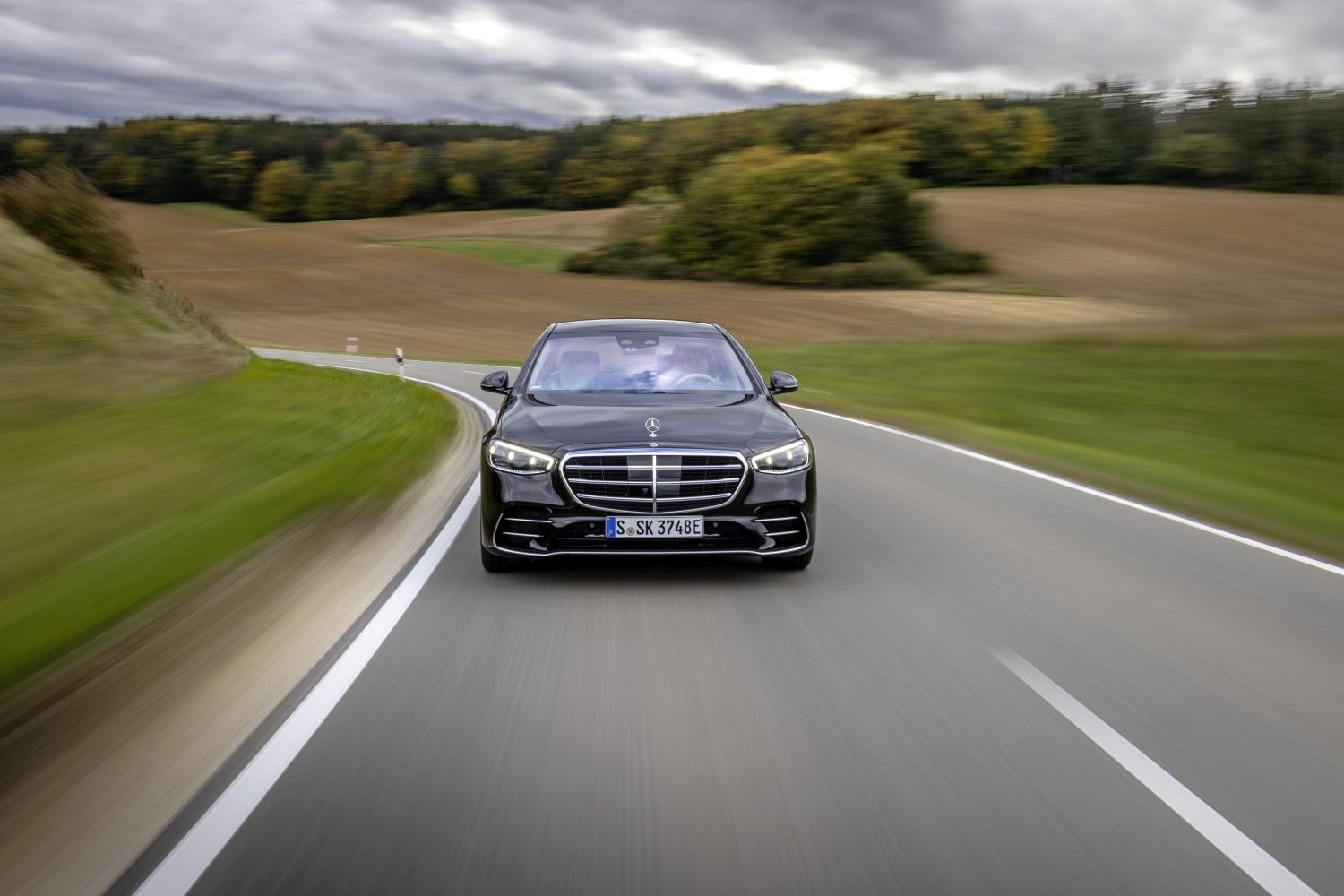

2021 Mercedes-Benz S-class (W223) - Photo 1

Key specs

Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC /Sedan 2021 - 2026/

What is the body type of Mercedes-Benz S-class (W223)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

0.7-1 l/100 km
336 - 235.2 US mpg
403.5 - 282.5 UK mpg
142.9 - 100 km/l

How environmentally friendly is Mercedes-Benz S-class S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

16-23 g/km CO₂
Euro 6D-ISC-FCM

What is the all-electric range of S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

91-109 km
57 - 68 mi

What is the electricity consumption of Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

21.9-25.5 kWh/100 km
35.24 - 41.04 kWh/100 mi
96 - 82 MPGe
4.6 - 3.9 km/kWh
2.8 - 2.4 mi/kWh

How fast is 2021 S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

250 km/h | 155 mph
0-100 km/h: 4.9 sec
0-60 mph: 4.7 sec

What is the power output of Mercedes-Benz S-class Sedan 2021 S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

510 Hp, 750 Nm
553 lb.-ft.

What is the engine displacement of Mercedes-Benz S-class Sedan 2021 S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

3.0 l
2999 cm³
183.01 cu. in.

What is the number of cylinders in 2021 Mercedes-Benz S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

6, Inline

What is the drivetrain of Mercedes-Benz S-class (W223) Sedan 2021 S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

All wheel drive (4x4). PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.

What is the length of 2021 Mercedes-Benz S-class Sedan?

5179 mm
203.9 in.

What is the width of 2021 Mercedes-Benz S-class Sedan?

1954 mm
76.93 in.

What is the kerb weight of 2021 Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

2345 kg
5170 lbs.

What is the maximum permissible mass of 2021 Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

3070 kg
6768 lbs.

What is the trunk (boot) capacity of 2021 Mercedes-Benz S-class Sedan?

350 l
12.4 cu. ft.

What are the number of gears and the gearbox type of 2021 Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC?

9, automatic transmission G-TRONIC

Mercedes-Benz
- Mercedes-Benz S-class
  - S-class (W223)

Compare

General information

Brand

Mercedes-Benz

Model

S-class

Generation

S-class (W223)

Modification (Engine)

S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC

Start of production

November, 2021

End of production

2026

Powertrain Architecture

PHEV (Plug-in Hybrid Electric Vehicle)

Body type

Sedan

Seats

Doors

Looking for Mercedes-Benz S-class on the used-car market?

Check its history →

Performance specs

Combined fuel consumption (WLTP)

0.7-1 l/100 km 336 - 235.2 US mpg
403.5 - 282.5 UK mpg
142.9 - 100 km/l

CO₂ emissions (WLTP)

16-23 g/km

Fuel Type

Petrol / electricity

Acceleration 0 - 100 km/h

4.9 sec

Acceleration 0 - 62 mph

4.9 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

4.7 sec

Maximum speed

250 km/h, Electronically limited 155 mph

Emission standard

Euro 6D-ISC-FCM

Weight-to-power ratio

4.6 kg/Hp, 217.5 Hp/tonne

Weight-to-torque ratio

3.1 kg/Nm, 319.8 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

28.6 kWh

Net (usable) battery capacity

21.5 kWh

Battery technology

Lithium-ion (Li-Ion)

Battery location

Under the trunk

Electric range (WLTP)

91-109 km 57 - 68 mi

Average Energy consumption (WLTP)

21.9-25.5 kWh/100 km 35.24 - 41.04 kWh/100 mi
96 - 82 MPGe
4.6 - 3.9 km/kWh
2.8 - 2.4 mi/kWh

Max speed (electric)

140 km/h 87 mph

Charging ports

Charging times

Electric motor 1

Electric motor power

150 Hp

Electric motor Torque

440 Nm 325 lb.-ft.

Electric motor location

Between the combustion engine and the transmission

System power

510 Hp

System torque

750 Nm 553 lb.-ft.

Internal combustion engine specs

Power

367 Hp @ 5500-6100 rpm.

Power per litre

122.4 Hp/l

Torque

500 Nm @ 1600-4500 rpm. 369 lb.-ft. @ 1600-4500 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M 256.930

Engine displacement

2999 cm³ 183.01 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

83 mm 3.27 in.

Piston Stroke

92.4 mm 3.64 in.

Compression ratio

10.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Twin-scroll turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

7.3 l 7.71 US qt | 6.42 UK qt

Engine oil specification

Coolant

17 l 17.96 US qt | 14.96 UK qt

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

2345 kg 5170 lbs.

Max. weight

3070 kg 6768 lbs.

Max load

725 kg 1598 lbs.

Trunk (boot) space - minimum

350 l 12.4 cu. ft.

Fuel tank capacity

67 l 17.7 US gal | 14.74 UK gal

Max. roof load

100 kg 220 lbs.

Dimensions

Length

5179 mm 203.9 in.

Width

1954 mm 76.93 in.

Width including mirrors

2109 mm 83.03 in.

Height

1503 mm 59.17 in.

Wheelbase

3106 mm 122.28 in.

Front track

1655 mm 65.16 in.

Rear (Back) track

1651 mm 65 in.

Front overhang

877 mm 34.53 in.

Rear overhang

1196 mm 47.09 in.

Ride height (ground clearance)

130 mm 5.12 in.

Minimum turning circle (turning diameter)

10.7 m 35.1 ft.

Approach angle

14.7°

Departure angle

15.9°

Ramp-over (breakover) angle

10.8°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

9 gears, automatic transmission G-TRONIC

Front suspension

Independent multi-link suspension, Air suspension

Rear suspension

Independent multi-link suspension, Air suspension

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)
4-wheel steering (4WS, active rear steering)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

255/50 R18; 255/45 R19

Wheel rim size

8J x 18; 8.5J x 19

Specs of Mercedes-Benz S-class (W223) S 580e (510 Hp) Plug-in Hybrid 4MATIC 9G-TRONIC /2021, 2022, 2023, 2024, 2025, 2026/
