Mercedes-Benz E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC | Technical specs, data, fuel consumption, Dimensions

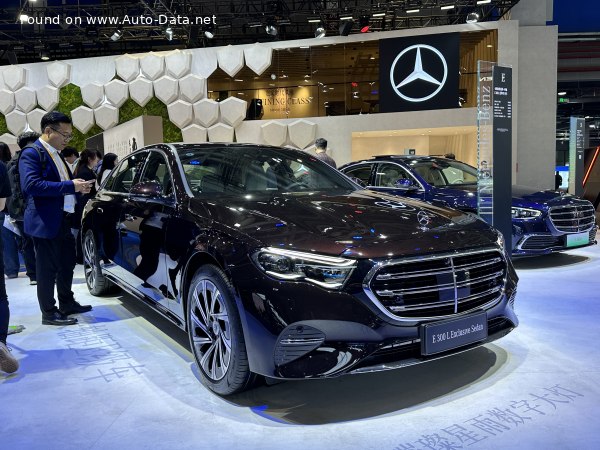

2024 Mercedes-Benz E-class Long (V214) - Photo 1

Key specs

Mercedes-Benz E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC /Sedan 2023 - /

What is the body type of Mercedes-Benz E-class Long (V214)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Mercedes-Benz E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

6.65 l/100 km
35.4 US mpg
42.5 UK mpg
15 km/l

How fast is 2023 E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

245 km/h | 152 mph
0-100 km/h: 6.6 sec
0-60 mph: 6.3 sec

What is the power output of Mercedes-Benz E-class Sedan 2023 E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

258 Hp, 400 Nm
295 lb.-ft.

What is the engine displacement of Mercedes-Benz E-class Sedan 2023 E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

2.0 l
1999 cm³
121.99 cu. in.

What is the number of cylinders in 2023 Mercedes-Benz E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

4, Inline

What is the drivetrain of Mercedes-Benz E-class Long (V214) Sedan 2023 E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

Rear wheel drive. MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV). The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work only in mixed mode.

What is the length of 2023 Mercedes-Benz E-class Sedan?

5092 mm
200.47 in.

What is the width of 2023 Mercedes-Benz E-class Sedan?

1880 mm
74.02 in.

What is the kerb weight of 2023 Mercedes-Benz E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

1920-1940 kg
4233 - 4277 lbs.

What is the maximum permissible mass of 2023 Mercedes-Benz E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

2520 kg
5556 lbs.

What is the trunk (boot) capacity of 2023 Mercedes-Benz E-class Sedan?

510 l
18 cu. ft.

What are the number of gears and the gearbox type of 2023 Mercedes-Benz E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC?

9, automatic transmission G-TRONIC

Mercedes-Benz
- Mercedes-Benz E-class
  - E-class Long (V214)
    - E 300 (258 Hp) Mild Hybrid 9G-TRONIC
    - E 260 (204 Hp) Mild Hybrid 9G-TRONIC
    - E 260 (204 Hp) Mild Hybrid 4MATIC 9G-TRONIC

Compare

General information

Brand

Mercedes-Benz

Model

E-class

Generation

E-class Long (V214)

Modification (Engine)

E 300 (258 Hp) Mild Hybrid 9G-TRONIC

Start of production

December, 2023

Powertrain Architecture

MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)

Body type

Sedan

Seats

Doors

Looking for Mercedes-Benz E-class on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - combined (WLTC)

6.65 l/100 km 35.4 US mpg
42.5 UK mpg
15 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

6.6 sec

Acceleration 0 - 62 mph

6.6 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

6.3 sec

Maximum speed

245 km/h 152 mph

Weight-to-power ratio

7.4 kg/Hp, 134.4 Hp/tonne

Weight-to-torque ratio

4.8 kg/Nm, 208.3 Nm/tonne

Electric and hybrid car specs

Battery voltage

48 V

Battery technology

Lithium-ion (Li-Ion)

Electric motor 1

Electric motor power

23 Hp

Electric motor Torque

200 Nm 148 lb.-ft.

Electric motor location

Between the combustion engine and the transmission

Internal combustion engine specs

Power

258 Hp @ 5800 rpm.

Power per litre

129.1 Hp/l

Torque

400 Nm @ 2000-3200 rpm. 295 lb.-ft. @ 2000-3200 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M 254.920

Engine displacement

1999 cm³ 121.99 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

83 mm 3.27 in.

Piston Stroke

92.4 mm 3.64 in.

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Twin-scroll turbocharger, Intercooler

Valvetrain

DOHC, CAMTRONIC

Engine oil capacity

6 l 6.34 US qt | 5.28 UK qt

Engine oil specification

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1920-1940 kg 4233 - 4277 lbs.

Max. weight

2520 kg 5556 lbs.

Max load

580-600 kg 1279 - 1323 lbs.

Trunk (boot) space - minimum

510 l 18 cu. ft.

Fuel tank capacity

66 l 17.44 US gal | 14.52 UK gal

Dimensions

Length

5092 mm 200.47 in.

Width

1880 mm 74.02 in.

Height

1493 mm 58.78 in.

Wheelbase

3094 mm 121.81 in.

Front track

1622 mm 63.86 in.

Rear (Back) track

1604 mm 63.15 in.

Drag coefficient (C_d)

0.23

Approach angle

15°

Departure angle

17°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work only in mixed mode.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

9 gears, automatic transmission G-TRONIC

Front suspension

Coil spring, Independent multi-link suspension, Anti-roll bar, Air suspension - optional

Rear suspension

Independent multi-link spring suspension with anti-roll bar, Air suspension - optional

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

Front wheel tires: 245/45 R19; 245/40 R20
Rear wheel tires: 275/40 R19; 275/35 R20

Wheel rim size

Front wheel rims: 8.5J x 19; 8.5J x 20
Rear wheel rims: 9.5J x 19; 9.5J x 20

Specs of Mercedes-Benz E-class Long (V214) E 300 (258 Hp) Mild Hybrid 9G-TRONIC /2023, 2024, 2025, 2026/
