Mercedes-Benz 190 (W201, facelift 1988) E (118 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

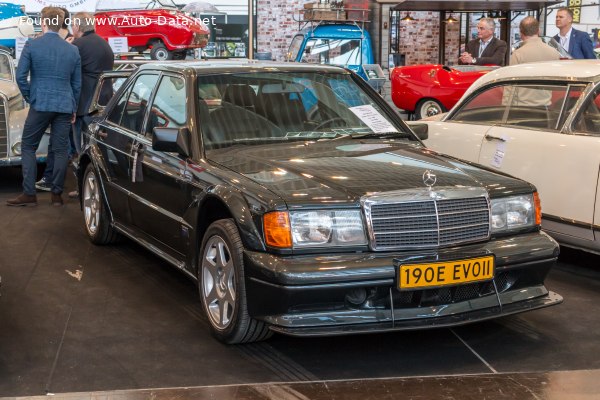

1988 Mercedes-Benz 190 (W201, facelift 1988) - Photo 1

Key specs

Mercedes-Benz 190 (W201, facelift 1988) E (118 Hp) Automatic /Sedan 1988 - 1991/

What is the body type of Mercedes-Benz 190 (W201, facelift 1988)?

Sedan, 4 Doors, 5 Seats

How fast is 1988 190 (W201, facelift 1988) E (118 Hp) Automatic?

190 km/h | 118 mph
0-100 km/h: 11 sec
0-60 mph: 10.5 sec

What is the power output of Mercedes-Benz 190 Sedan 1988 E (118 Hp) Automatic?

118 Hp, 172 Nm
127 lb.-ft.

What is the engine displacement of Mercedes-Benz 190 Sedan 1988 E (118 Hp) Automatic?

2.0 l
1996 cm³
121.8 cu. in.

What is the number of cylinders in 1988 Mercedes-Benz E (118 Hp) Automatic?

4, Inline

What is the drivetrain of Mercedes-Benz 190 (W201, facelift 1988) Sedan 1988 E (118 Hp) Automatic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1988 Mercedes-Benz 190 Sedan?

4448 mm
175.12 in.

What is the width of 1988 Mercedes-Benz 190 Sedan?

1690 mm
66.54 in.

What is the kerb weight of 1988 Mercedes-Benz 190 (W201, facelift 1988) E (118 Hp) Automatic?

1170 kg
2579 lbs.

What is the maximum permissible mass of 1988 Mercedes-Benz 190 (W201, facelift 1988) E (118 Hp) Automatic?

1670 kg
3682 lbs.

What is the trunk (boot) capacity of 1988 Mercedes-Benz 190 Sedan?

410 l
14.5 cu. ft.

What are the number of gears and the gearbox type of 1988 Mercedes-Benz 190 (W201, facelift 1988) E (118 Hp) Automatic?

4, automatic transmission

Mercedes-Benz
- Mercedes-Benz 190
  - 190 (W201, facelift 1988)

Compare

General information

Brand

Mercedes-Benz

Model

190

Generation

190 (W201, facelift 1988)

Modification (Engine)

E (118 Hp) Automatic

Start of production

September, 1988

End of production

January, 1991

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Mercedes-Benz 190 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

10.6 l/100 km 22.2 US mpg
26.6 UK mpg
9.4 km/l

Fuel consumption (economy) - extra urban

6.9 l/100 km 34.1 US mpg
40.9 UK mpg
14.5 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

11 sec

Acceleration 0 - 62 mph

11 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.5 sec

Maximum speed

190 km/h 118 mph

Weight-to-power ratio

9.9 kg/Hp, 100.9 Hp/tonne

Weight-to-torque ratio

6.8 kg/Nm, 147 Nm/tonne

Engine specs

Power

118 Hp @ 5100 rpm.

Power per litre

59.1 Hp/l

Torque

172 Nm @ 3500 rpm. 127 lb.-ft. @ 3500 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M 102 E 20 / 102.962

Engine displacement

1996 cm³ 121.8 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

89 mm 3.5 in.

Piston Stroke

80.2 mm 3.16 in.

Compression ratio

9.1:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC

Engine oil capacity

5 l 5.28 US qt | 4.4 UK qt

Engine oil specification

Coolant

8.5 l 8.98 US qt | 7.48 UK qt

Volume and weights

Kerb Weight

1170 kg 2579 lbs.

Max. weight

1670 kg 3682 lbs.

Max load

500 kg 1102 lbs.

Trunk (boot) space - minimum

410 l 14.5 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4448 mm 175.12 in.

Width

1690 mm 66.54 in.

Height

1375 mm 54.13 in.

Wheelbase

2665 mm 104.92 in.

Front track

1441 mm 56.73 in.

Rear (Back) track

1421 mm 55.94 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Wishbone, Anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Disc

Rear brakes

Disc

Steering type

Recirculating-ball steering

Power steering

Hydraulic Steering

Tire size

185/65 R15

Wheel rim size

6J x 15

Specs of Mercedes-Benz 190 (W201, facelift 1988) E (118 Hp) Automatic /1988, 1989, 1990, 1991/
