Specs of McLaren GTS 4.0 V8 (635 Hp) SSG /2023, 2024, 2025, 2026/

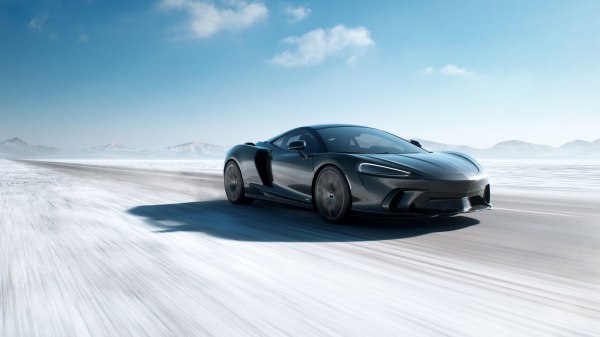

2024 McLaren GTS - Photo 1
McLaren GTS - Photo 2McLaren GTS - Photo 3McLaren GTS - Photo 4McLaren GTS - Photo 5McLaren GTS - Photo 6McLaren GTS - Photo 7McLaren GTS - Photo 8McLaren GTS - Photo 9McLaren GTS - Photo 10

Key specs:
McLaren GTS 4.0 V8 (635 Hp) SSG
/Coupe 2023 - /

What is the body type of McLaren GTS?Coupe, 2 Doors, 2 Seats
What is the fuel consumption and economy of McLaren GTS 4.0 V8 (635 Hp) SSG?11.9 l/100 km
19.8 US mpg
23.7 UK mpg
8.4 km/l
How environmentally friendly is McLaren GTS 4.0 V8 (635 Hp) SSG?270 g/km CO2
How fast is 2023 GTS 4.0 V8 (635 Hp) SSG?326 km/h | 202.57 mph
0-100 km/h: 3.2 sec
0-60 mph: 3.1 sec
What is the power output of McLaren GTS Coupe 2023 4.0 V8 (635 Hp) SSG?635 Hp, 630 Nm
464.66 lb.-ft.
What is the engine displacement of McLaren GTS Coupe 2023 4.0 V8 (635 Hp) SSG?4.0 l
3994 cm3
243.73 cu. in.
What is the number of cylinders in 2023 McLaren 4.0 V8 (635 Hp) SSG?8, V-engine
What is the drivetrain of McLaren GTS Coupe 2023 4.0 V8 (635 Hp) SSG?Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
What is the length of 2023 McLaren GTS Coupe?4683 mm
184.37 in.
What is the width of 2023 McLaren GTS Coupe?2045 mm
80.51 in.
What is the kerb weight of 2023 McLaren GTS 4.0 V8 (635 Hp) SSG?1520 kg
3351.03 lbs.
What is the trunk (boot) capacity of 2023 McLaren GTS Coupe?570 l
20.13 cu. ft.
What is the number of gears in What is the gearbox type of 2023 McLaren GTS 4.0 V8 (635 Hp) SSG?7, automatic transmission SSG

McLaren GTS 4.0 V8 (635 Hp) SSG - Full specifications

General information

BrandMcLaren
Model GTS
Generation GTS
Modification (Engine) 4.0 V8 (635 Hp) SSG
Start of production December, 2023 year
Powertrain Architecture Internal Combustion engine
Body typeCoupe
Seats 2
Doors 2

Performance specs

Fuel consumption at Low speed (WLTP) 22.2 l/100 km 10.6 US mpg
12.7 UK mpg
4.5 km/l
Fuel consumption at Medium speed (WLTP) 11.9 l/100 km 19.8 US mpg
23.7 UK mpg
8.4 km/l
Fuel consumption at high speed (WLTP) 9.3 l/100 km 25.3 US mpg
30.4 UK mpg
10.8 km/l
Fuel consumption at very high speed (WLTP) 10.2 l/100 km 23.1 US mpg
27.7 UK mpg
9.8 km/l
Combined fuel consumption (WLTP) 11.9 l/100 km 19.8 US mpg
23.7 UK mpg
8.4 km/l
CO2 emissions (WLTP)270 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 - 100 km/h3.2 sec
Acceleration 0 - 62 mph3.2 sec
Acceleration 0 - 60 mph 3.1 sec
Acceleration 0 - 200 km/h 8.9 sec
Maximum speed 326 km/h 202.57 mph
100 km/h - 0 32 m
200 km/h - 0 127 m
Weight-to-power ratio 2.4 kg/Hp, 417.8 Hp/tonne
Weight-to-torque ratio 2.4 kg/Nm, 414.5 Nm/tonne

Engine specs

Power 635 Hp @ 7500 rpm.
Power per litre 159 Hp/l
Torque 630 Nm @ 5500-6500 rpm. 464.66 lb.-ft. @ 5500-6500 rpm.
Engine layout Middle, Longitudinal
Engine Model/Code M840TE
Engine displacement 3994 cm3 243.73 cu. in.
Number of cylinders 8
Engine configuration V-engine
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin Turbo, Intercooler
Engine oil capacity 8 l 8.45 US qt | 7.04 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 24.5 l 25.89 US qt | 21.56 UK qt
Engine systemsStart & Stop System

Space, Volume and weights

Kerb Weight 1520 kg 3351.03 lbs.
Trunk (boot) space - maximum 570 l 20.13 cu. ft.
Fuel tank capacity 72 l 19.02 US gal | 15.84 UK gal

Dimensions

Length 4683 mm 184.37 in.
Width with mirrors folded 2045 mm 80.51 in.
Width including mirrors 2095 mm 82.48 in.
Height 1213 mm 47.76 in.
Wheelbase 2675 mm 105.31 in.
Front track 1663 mm 65.47 in.
Rear (Back) track 1617 mm 63.66 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission SSG
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakesVentilated discs, 390 mm
Rear brakesVentilated discs, 380 mm
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 225/35 R20
Rear wheel tires: 295/30 R21
Wheel rims sizeFront wheel rims: 8J x 20
Rear wheel rims: 10.5J x 21
