McLaren 570S Spider 3.8 V8 (570 Hp) SSG | Technical specs, data, fuel consumption, Dimensions

Key specs

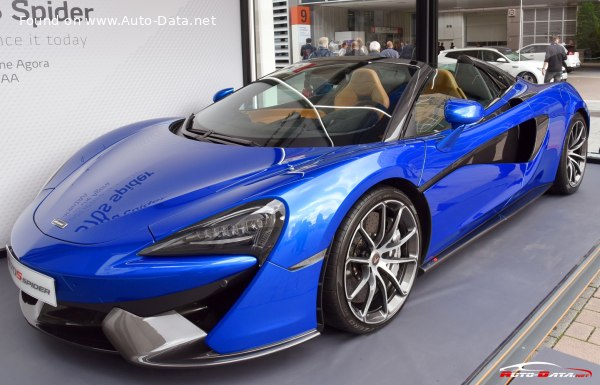

McLaren 570S Spider 3.8 V8 (570 Hp) SSG /Roadster 2017 - 2021/

What is the body type of McLaren 570S Spider?

Roadster, 2 Doors, 2 Seats

What is the fuel consumption and economy of McLaren 570S Spider 3.8 V8 (570 Hp) SSG?

10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l

How environmentally friendly is McLaren 570S 3.8 V8 (570 Hp) SSG?

249 g/km CO₂
Euro 6

How fast is 2017 570S Spider 3.8 V8 (570 Hp) SSG?

328 km/h | 204 mph
0-100 km/h: 3.2 sec
0-60 mph: 3 sec

What is the power output of McLaren 570S Roadster 2017 3.8 V8 (570 Hp) SSG?

570 Hp, 600 Nm
443 lb.-ft.

What is the engine displacement of McLaren 570S Roadster 2017 3.8 V8 (570 Hp) SSG?

3.8 l
3799 cm³
231.83 cu. in.

What is the number of cylinders in 2017 McLaren 3.8 V8 (570 Hp) SSG?

8, V-engine

What is the drivetrain of McLaren 570S Spider Roadster 2017 3.8 V8 (570 Hp) SSG?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2017 McLaren 570S Roadster?

4530 mm
178.35 in.

What is the width of 2017 McLaren 570S Roadster?

1930 mm
75.98 in.

What is the kerb weight of 2017 McLaren 570S Spider 3.8 V8 (570 Hp) SSG?

1498 kg
3303 lbs.

What is the trunk (boot) capacity of 2017 McLaren 570S Roadster?

202 l
7.1 cu. ft.

What are the number of gears and the gearbox type of 2017 McLaren 570S Spider 3.8 V8 (570 Hp) SSG?

7, automatic transmission SSG

McLaren
- McLaren 570S
  - 570S Spider
    - 3.8 V8 (570 Hp) SSG

Compare

General information

Brand

McLaren

Model

570S

Generation

570S Spider

Modification (Engine)

3.8 V8 (570 Hp) SSG

Start of production

2017

End of production

2021

Powertrain Architecture

Internal Combustion engine

Body type

Roadster

Seats

Doors

Looking for McLaren 570S on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

17.2 l/100 km 13.7 US mpg
16.4 UK mpg
5.8 km/l

Fuel consumption (economy) - extra urban

7.4 l/100 km 31.8 US mpg
38.2 UK mpg
13.5 km/l

Fuel consumption (economy) - combined

10.7 l/100 km 22 US mpg
26.4 UK mpg
9.3 km/l

CO₂ emissions

249 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

3.2 sec

Acceleration 0 - 62 mph

3.2 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

3 sec

Acceleration 0 - 200 km/h

9.6 sec

Maximum speed

328 km/h 204 mph

100 km/h - 0

32 m

200 km/h - 0

130 m

Emission standard

Euro 6

Weight-to-power ratio

2.6 kg/Hp, 380.5 Hp/tonne

Weight-to-torque ratio

2.5 kg/Nm, 400.5 Nm/tonne

Engine specs

Power

570 Hp @ 7500 rpm.

Power per litre

150 Hp/l

Torque

600 Nm @ 5000-6500 rpm. 443 lb.-ft. @ 5000-6500 rpm.

Maximum engine speed

8500 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

M838TE

Engine displacement

3799 cm³ 231.83 cu. in.

Number of cylinders

Engine configuration

V-engine

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Twin Turbo, Intercooler

Valvetrain

DOHC. VVT

Engine oil capacity

9 l 9.51 US qt | 7.92 UK qt

Engine oil specification

Coolant

23.4 l 24.73 US qt | 20.59 UK qt

Volume and weights

Kerb Weight

1498 kg 3303 lbs.

Trunk (boot) space - minimum

202 l 7.1 cu. ft.

Dimensions

Length

4530 mm 178.35 in.

Width

1930 mm 75.98 in.

Width with mirrors folded

2045 mm 80.51 in.

Width including mirrors

2095 mm 82.48 in.

Height

1202 mm 47.32 in.

Wheelbase

2670 mm 105.12 in.

Front track

1673 mm 65.87 in.

Rear (Back) track

1618 mm 63.7 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

7 gears, automatic transmission SSG

Front suspension

Double wishbone

Rear suspension

Double wishbone

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

225/35 R19; 285/35 R20

Wheel rim size

8.0J x 19; 10.0J x 20

Specs of McLaren 570S Spider 3.8 V8 (570 Hp) SSG /2017, 2018, 2019, 2020, 2021/
