Specs of Mazda 3 I Sedan (BK) 1.6 CD (109 Hp) /2004, 2005, 2006, 2007, 2008, 2009/

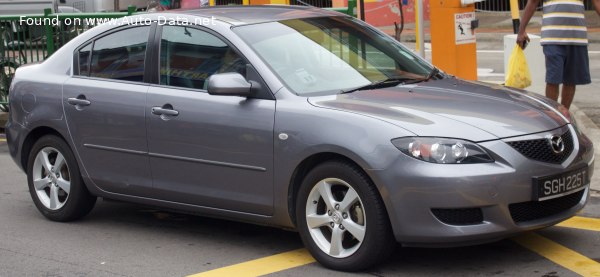

2004 Mazda 3 I Sedan (BK) - Photo 1
Mazda 3 I Sedan (BK) - Photo 2

Key specs

Mazda 3 I Sedan (BK) 1.6 CD (109 Hp) /Sedan 2004 - 2009/

What is the body type of Mazda 3 I Sedan (BK)?
Sedan, 4 Doors, 5 Seats
What is the fuel consumption and economy of Mazda 3 I Sedan (BK) 1.6 CD (109 Hp)?
5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
How environmentally friendly is Mazda 3 1.6 CD (109 Hp)?
138 g/km CO2
Euro 3
How fast is 2004 3 I Sedan (BK) 1.6 CD (109 Hp)?
185 km/h | 115 mph
0-100 km/h: 11.3 sec
0-60 mph: 10.7 sec
What is the power output of Mazda 3 Sedan 2004 1.6 CD (109 Hp)?
109 Hp, 240 Nm
177 lb.-ft.
What is the engine displacement of Mazda 3 Sedan 2004 1.6 CD (109 Hp)?
1.6 l
1560 cm3
95.2 cu. in.
What is the number of cylinders in 2004 Mazda 1.6 CD (109 Hp)?
4, Inline
What is the drivetrain of Mazda 3 I Sedan (BK) Sedan 2004 1.6 CD (109 Hp)?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2004 Mazda 3 Sedan?
4490 mm
176.77 in.
What is the width of 2004 Mazda 3 Sedan?
1755 mm
69.09 in.
What is the kerb weight of 2004 Mazda 3 I Sedan (BK) 1.6 CD (109 Hp)?
1260 kg
2778 lbs.
What is the maximum permissible mass of 2004 Mazda 3 I Sedan (BK) 1.6 CD (109 Hp)?
1770 kg
3902 lbs.
What is the trunk (boot) capacity of 2004 Mazda 3 Sedan?
413 - 675 l
14.6 - 23.8 cu. ft.
What is the number of gears in What is the gearbox type of 2004 Mazda 3 I Sedan (BK) 1.6 CD (109 Hp)?
5, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Mazda
Model
3
Generation
3 I Sedan (BK)
Modification (Engine)
1.6 CD (109 Hp)
Start of production
2004 year
End of production
2009 year
Powertrain Architecture
Internal Combustion engine
Body type
Sedan
Seats
5
Doors
4
Looking for Mazda 3 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
6.2 l/100 km 37.9 US mpg
45.6 UK mpg
16.1 km/l
Fuel consumption (economy) - extra urban
4.3 l/100 km 54.7 US mpg
65.7 UK mpg
23.3 km/l
Fuel consumption (economy) - combined
5 l/100 km 47 US mpg
56.5 UK mpg
20 km/l
CO2 emissions
138 g/km
Fuel Type
Diesel
Acceleration 0 - 100 km/h
11.3 sec
Acceleration 0 - 62 mph
11.3 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
10.7 sec
Maximum speed
185 km/h 115 mph
Emission standard
Euro 3
Weight-to-power ratio
11.6 kg/Hp, 86.5 Hp/tonne
Weight-to-torque ratio
5.3 kg/Nm, 190.5 Nm/tonne

Engine specs

Power
109 Hp @ 4000 rpm.
Power per litre
69.9 Hp/l
Torque
240 Nm @ 1750 rpm. 177 lb.-ft. @ 1750 rpm.
Engine layout
Front, Transverse
Engine Model/Code
Y6
Engine displacement
1560 cm3 95.2 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
75 mm 2.95 in.
Piston Stroke
88.3 mm 3.48 in.
Compression ratio
18.3:1
Number of valves per cylinder
4
Fuel injection system
Diesel Commonrail
Engine aspiration
Turbocharger, Intercooler
Valvetrain
DOHC
Engine oil capacity
3.8 l 4.02 US qt | 3.34 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
8.5 l 8.98 US qt | 7.48 UK qt

Volume and weights

Kerb Weight
1260 kg 2778 lbs.
Max. weight
1770 kg 3902 lbs.
Max load
510 kg 1124 lbs.
Trunk (boot) space - minimum
413 l 14.6 cu. ft.
Trunk (boot) space - maximum
675 l 23.8 cu. ft.
Fuel tank capacity
55 l 14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%)
1300 kg 2866 lbs.
Permitted trailer load without brakes
600 kg 1323 lbs.

Dimensions

Length
4490 mm 176.77 in.
Width
1755 mm 69.09 in.
Height
1465 mm 57.68 in.
Wheelbase
2640 mm 103.94 in.
Front track
1530 mm 60.24 in.
Rear (Back) track
1515 mm 59.65 in.
Drag coefficient (Cd)
0.34
Minimum turning circle (turning diameter)
10.3 m 33.79 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
5 gears, manual transmission
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Tires size
195/65 R15
Wheel rims size
15
