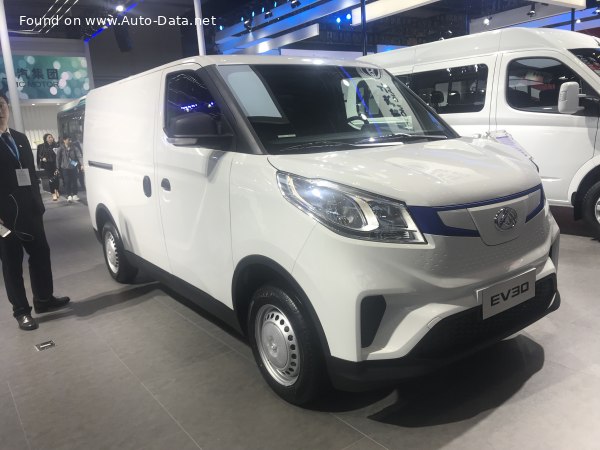

Maxus eDeliver 3 L1 35 kWh (122 Hp) Electric | Technical specs, data, battery, electric range, Dimensions

Key specs

Maxus eDeliver 3 L1 35 kWh (122 Hp) Electric /Van 2020 - 2023/

What is the body type of Maxus eDeliver 3 L1?

Van, 4 Doors, 2 Seats

What is the all-electric range of 35 kWh (122 Hp) Electric?

159 km
99 mi

What is the electricity consumption of Maxus eDeliver 3 L1 35 kWh (122 Hp) Electric?

24.36 kWh/100 km
39.2 kWh/100 mi
86 MPGe
4.1 km/kWh
2.6 mi/kWh

How fast is 2020 eDeliver 3 L1 35 kWh (122 Hp) Electric?

120 km/h | 75 mph
0-100 km/h: 11 sec
0-60 mph: 10.5 sec

What is the power output of Maxus Deliver 3 Van 2020 35 kWh (122 Hp) Electric?

122 Hp, 255 Nm
188 lb.-ft.

What is the drivetrain of Maxus eDeliver 3 L1 Van 2020 35 kWh (122 Hp) Electric?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2020 Maxus Deliver 3 Van?

4555 mm
179.33 in.

What is the width of 2020 Maxus Deliver 3 Van?

1780 mm
70.08 in.

What is the kerb weight of 2020 Maxus eDeliver 3 L1 35 kWh (122 Hp) Electric?

1445 kg
3186 lbs.

What is the maximum permissible mass of 2020 Maxus eDeliver 3 L1 35 kWh (122 Hp) Electric?

2310 kg
5093 lbs.

What is the trunk (boot) capacity of 2020 Maxus Deliver 3 Van?

4800 l
169.5 cu. ft.

What is the number of gears in 2020 Maxus eDeliver 3 L1 35 kWh (122 Hp) Electric?

1, automatic transmission

Maxus
- Maxus Deliver 3
  - eDeliver 3 L1
    - 50.23 kWh (122 Hp) Electric
    - 50 kWh (160 Hp) Electric
    - 35 kWh (122 Hp) Electric

Compare

General information

Brand

Maxus

Model

Deliver 3

Generation

eDeliver 3 L1

Modification (Engine)

35 kWh (122 Hp) Electric

Start of production

2020 year

End of production

2023 year

Powertrain Architecture

BEV (Electric Vehicle)

Body type

Van

Seats

Doors

Looking for Maxus Deliver 3 on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

11 sec

Acceleration 0 - 62 mph

11 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10.5 sec

Maximum speed

120 km/h 75 mph

Weight-to-power ratio

11.8 kg/Hp, 84.4 Hp/tonne

Weight-to-torque ratio

5.7 kg/Nm, 176.5 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

35 kWh

Battery technology

Lithium iron phosphate (LiFePO₄)

Battery location

Below the floor

Electric range (WLTP)

159 km 99 mi

Average Energy consumption (WLTP)

24.36 kWh/100 km 39.2 kWh/100 mi
86 MPGe
4.1 km/kWh
2.6 mi/kWh

Charging ports

Electric motor 1

Electric motor power

122 Hp

Electric motor Torque

255 Nm 188 lb.-ft.

Electric motor model/code

TZ204XS85K05

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

122 Hp

System torque

255 Nm 188 lb.-ft.

Volume and weights

Kerb Weight

1445 kg 3186 lbs.

Max. weight

2310 kg 5093 lbs.

Max load

865 kg 1907 lbs.

Trunk (boot) space - maximum

4800 l 169.5 cu. ft.

Max. roof load

75 kg 165 lbs.

Permitted trailer load with brakes (12%)

1200 kg 2646 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Dimensions

Length

4555 mm 179.33 in.

Width

1780 mm 70.08 in.

Height

1895 mm 74.61 in.

Wheelbase

2910 mm 114.57 in.

Minimum turning circle (turning diameter)

11.74 m 38.52 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front brakes

Disc

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

185/65 R15C

Wheel rims size

Specs of Maxus eDeliver 3 L1 35 kWh (122 Hp) Electric /2020, 2021, 2022, 2023/
