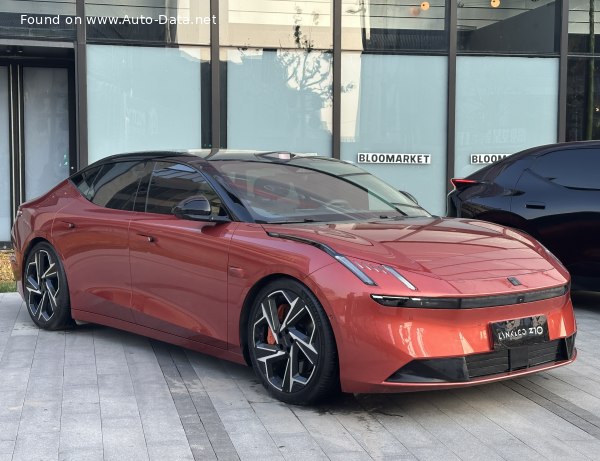

Lynk & Co Z10 95 kWh (272 Hp) | Technical specs, data, battery, electric range, Dimensions

Key specs

Lynk & Co Z10 95 kWh (272 Hp) /Sedan 2024 - /

What is the body type of Lynk & Co Z10?

Sedan, 4 Doors, 5 Seats

What is the all-electric range of 95 kWh (272 Hp)?

766 km
476 mi

What is the electricity consumption of Lynk & Co Z10 95 kWh (272 Hp)?

14.3 kWh/100 km
23.01 kWh/100 mi
146 MPGe
7 km/kWh
4.3 mi/kWh

How fast is 2024 Z10 95 kWh (272 Hp)?

210 km/h | 130 mph
0-100 km/h: 6.8 sec
0-60 mph: 6.5 sec

What is the power output of Lynk & Co Z10 Sedan 2024 95 kWh (272 Hp)?

272 Hp, 343 Nm
253 lb.-ft.

What is the drivetrain of Lynk & Co Z10 Sedan 2024 95 kWh (272 Hp)?

Rear wheel drive. BEV (Electric Vehicle). One electric motor drives the rear wheels.

What is the length of 2024 Lynk & Co Z10 Sedan?

5028 mm
197.95 in.

What is the width of 2024 Lynk & Co Z10 Sedan?

1966 mm
77.4 in.

What is the kerb weight of 2024 Lynk & Co Z10 95 kWh (272 Hp)?

2275 kg
5016 lbs.

What is the maximum permissible mass of 2024 Lynk & Co Z10 95 kWh (272 Hp)?

2669 kg
5884 lbs.

What is the trunk (boot) capacity of 2024 Lynk & Co Z10 Sedan?

616 l
21.8 cu. ft.

What is the number of gears in What is the gearbox type of 2024 Lynk & Co Z10 95 kWh (272 Hp)?

1, automatic transmission

Lynk & Co
- Lynk & Co Z10
  - Z10
    - 95 kWh (789 Hp) 4WD
    - 95 kWh (422 Hp)
    - 95 kWh (272 Hp)
    - 71 kWh (272 Hp)

Compare

General information

Brand

Lynk & Co

Model

Z10

Generation

Z10

Modification (Engine)

95 kWh (272 Hp)

Start of production

September, 2024 year

Powertrain Architecture

BEV (Electric Vehicle)

Body type

Sedan

Seats

Doors

Looking for Lynk & Co Z10 on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

6.8 sec

Acceleration 0 - 62 mph

6.8 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

6.5 sec

Maximum speed

210 km/h 130 mph

Weight-to-power ratio

8.4 kg/Hp, 119.6 Hp/tonne

Weight-to-torque ratio

6.6 kg/Nm, 150.8 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

95 kWh

Battery voltage

400 V

Battery technology

Lithium iron phosphate (LiFePO₄)

Battery location

Below the floor

Electric range (CLTC)

766 km 476 mi

Average Energy consumption (CLTC)

14.3 kWh/100 km 23.01 kWh/100 mi
146 MPGe
7 km/kWh
4.3 mi/kWh

Charging ports

Electric motor 1

Electric motor power

272 Hp

Electric motor Torque

343 Nm 253 lb.-ft.

Electric motor model/code

TZ220XSA01

Electric motor location

Rear axle, Transverse

Electric motor type

Synchronous

System power

272 Hp

System torque

343 Nm 253 lb.-ft.

Volume and weights

Kerb Weight

2275 kg 5016 lbs.

Max. weight

2669 kg 5884 lbs.

Max load

394 kg 869 lbs.

Trunk (boot) space - minimum

616 l 21.8 cu. ft.

Dimensions

Length

5028 mm 197.95 in.

Width

1966 mm 77.4 in.

Height

1468 mm 57.8 in.

Wheelbase

3005 mm 118.31 in.

Front track

1703 mm 67.05 in.

Rear (Back) track

1713 mm 67.44 in.

Ride height (ground clearance)

129 mm 5.08 in.

Drag coefficient (C_d)

0.198

Minimum turning circle (turning diameter)

11.4 m 37.4 ft.

Approach angle

14°

Departure angle

15°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the rear wheels.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Coil spring, Double wishbone, Anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

245/50 R19; 255/40 R21

Wheel rims size

19; 21

Specs of Lynk & Co Z10 95 kWh (272 Hp) /2024, 2025, 2026/
