Lancia Lybra (839) 2.4 JTD (150 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

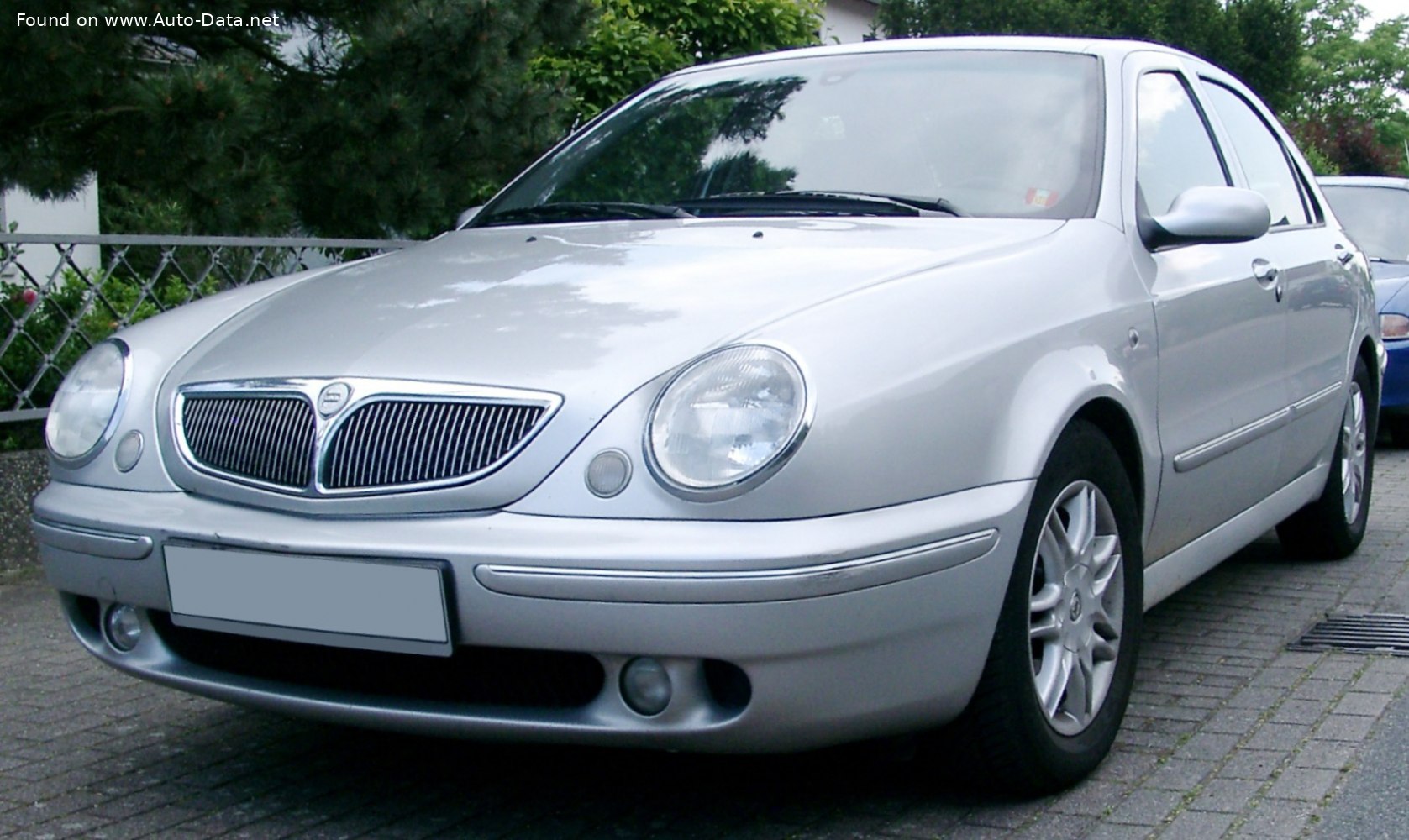

Lancia Lybra (839) 2.4 JTD (150 Hp) /Sedan 2002 - 2004/

What is the body type of Lancia Lybra (839)?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Lancia Lybra (839) 2.4 JTD (150 Hp)?

6.7 l/100 km
35.1 US mpg
42.2 UK mpg
14.9 km/l

How fast is 2002 Lybra (839) 2.4 JTD (150 Hp)?

205 km/h | 127 mph
0-100 km/h: 9.5 sec
0-60 mph: 9 sec

What is the power output of Lancia Lybra Sedan 2002 2.4 JTD (150 Hp)?

150 Hp, 304 Nm
224 lb.-ft.

What is the engine displacement of Lancia Lybra Sedan 2002 2.4 JTD (150 Hp)?

2.4 l
2387 cm³
145.66 cu. in.

What is the number of cylinders in 2002 Lancia 2.4 JTD (150 Hp)?

5, Inline

What is the drivetrain of Lancia Lybra (839) Sedan 2002 2.4 JTD (150 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2002 Lancia Lybra Sedan?

4466 mm
175.83 in.

What is the width of 2002 Lancia Lybra Sedan?

1743 mm
68.62 in.

What is the kerb weight of 2002 Lancia Lybra (839) 2.4 JTD (150 Hp)?

1460 kg
3219 lbs.

What is the maximum permissible mass of 2002 Lancia Lybra (839) 2.4 JTD (150 Hp)?

1935 kg
4266 lbs.

What is the trunk (boot) capacity of 2002 Lancia Lybra Sedan?

420 l
14.8 cu. ft.

What is the number of gears in 2002 Lancia Lybra (839) 2.4 JTD (150 Hp)?

5, manual transmission

Lancia
- Lancia Lybra
  - Lybra (839)

Compare

General information

Brand

Lancia

Model

Lybra

Generation

Lybra (839)

Modification (Engine)

2.4 JTD (150 Hp)

Start of production

August, 2002 year

End of production

December, 2004 year

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Lancia Lybra on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

9 l/100 km 26.1 US mpg
31.4 UK mpg
11.1 km/l

Fuel consumption (economy) - extra urban

5.4 l/100 km 43.6 US mpg
52.3 UK mpg
18.5 km/l

Fuel consumption (economy) - combined

6.7 l/100 km 35.1 US mpg
42.2 UK mpg
14.9 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

9.5 sec

Acceleration 0 - 62 mph

9.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

9 sec

Maximum speed

205 km/h 127 mph

Weight-to-power ratio

9.7 kg/Hp, 102.7 Hp/tonne

Weight-to-torque ratio

4.8 kg/Nm, 208.2 Nm/tonne

Engine specs

Power

150 Hp @ 4000 rpm.

Power per litre

62.8 Hp/l

Torque

304 Nm @ 1800 rpm. 224 lb.-ft. @ 1800 rpm.

Engine layout

Front, Transverse

Engine Model/Code

841 C.000

Engine displacement

2387 cm³ 145.66 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

82 mm 3.23 in.

Piston Stroke

90.4 mm 3.56 in.

Compression ratio

18.45:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

OHC

Engine oil capacity

5.5 l 5.81 US qt | 4.84 UK qt

Engine oil specification

Coolant

8.5 l 8.98 US qt | 7.48 UK qt

Volume and weights

Kerb Weight

1460 kg 3219 lbs.

Max. weight

1935 kg 4266 lbs.

Max load

475 kg 1047 lbs.

Trunk (boot) space - minimum

420 l 14.8 cu. ft.

Fuel tank capacity

60 l 15.85 US gal | 13.2 UK gal

Dimensions

Length

4466 mm 175.83 in.

Width

1743 mm 68.62 in.

Height

1462 mm 57.56 in.

Wheelbase

2593 mm 102.09 in.

Front track

1497 mm 58.94 in.

Rear (Back) track

1459 mm 57.44 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Suspension strut

Rear suspension

Coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tires size

195/65 R15

Specs of Lancia Lybra (839) 2.4 JTD (150 Hp) /2002, 2003, 2004/
