Specs of Kia Sedona I 3.5i V6 (198 Hp) Automatic /2002, 2003, 2004, 2005/

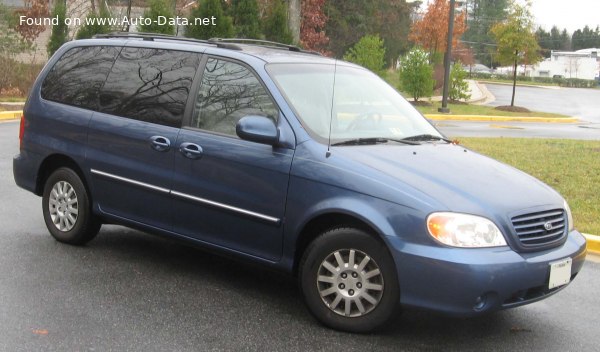

2002 Kia Sedona I - Photo 1
Kia Sedona I - Photo 2Kia Sedona I - Photo 3

Key specs

Kia Sedona I 3.5i V6 (198 Hp) Automatic /Minivan 2002 - 2005/

What is the body type of Kia Sedona I?
Minivan, 5 Doors, 7 Seats
What is the fuel consumption and economy of Kia Sedona I 3.5i V6 (198 Hp) Automatic?
13.8 l/100 km
17 US mpg
20.5 UK mpg
7.2 km/l
How fast is 2002 Sedona I 3.5i V6 (198 Hp) Automatic?
176 km/h | 109 mph
0-100 km/h: 12.5 sec
0-60 mph: 11.9 sec
What is the power output of Kia Sedona Minivan 2002 3.5i V6 (198 Hp) Automatic?
198 Hp, 296 Nm
218 lb.-ft.
What is the engine displacement of Kia Sedona Minivan 2002 3.5i V6 (198 Hp) Automatic?
3.5 l
3497 cm3
213.4 cu. in.
What is the number of cylinders in 2002 Kia 3.5i V6 (198 Hp) Automatic?
6, V-engine
What is the drivetrain of Kia Sedona I Minivan 2002 3.5i V6 (198 Hp) Automatic?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2002 Kia Sedona Minivan?
4930 mm
194.09 in.
What is the width of 2002 Kia Sedona Minivan?
1895 mm
74.61 in.
What is the kerb weight of 2002 Kia Sedona I 3.5i V6 (198 Hp) Automatic?
2136 kg
4709 lbs.
What is the maximum permissible mass of 2002 Kia Sedona I 3.5i V6 (198 Hp) Automatic?
2674 kg
5895 lbs.
What is the trunk (boot) capacity of 2002 Kia Sedona Minivan?
617 - 3610 l
21.8 - 127.5 cu. ft.
What are the number of gears and the gearbox type of 2002 Kia Sedona I 3.5i V6 (198 Hp) Automatic?
5, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Kia
Model
Sedona
Generation
Sedona I
Modification (Engine)
3.5i V6 (198 Hp) Automatic
Start of production
2002
End of production
2005
Powertrain Architecture
Internal Combustion engine
Body type
Minivan
Seats
7
Doors
5
Looking for Kia Sedona on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
15.7 l/100 km 15 US mpg
18 UK mpg
6.4 km/l
Fuel consumption (economy) - extra urban
11.8 l/100 km 19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) - combined
13.8 l/100 km 17 US mpg
20.5 UK mpg
7.2 km/l
Fuel Type
Petrol (Gasoline)
Acceleration 0 - 100 km/h
12.5 sec
Acceleration 0 - 62 mph
12.5 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net)
11.9 sec
Maximum speed
176 km/h 109 mph
Weight-to-power ratio
10.8 kg/Hp, 92.7 Hp/tonne
Weight-to-torque ratio
7.2 kg/Nm, 138.6 Nm/tonne

Engine specs

Power
198 Hp @ 5500 rpm.
Power per litre
56.6 Hp/l
Torque
296 Nm @ 3500 rpm. 218 lb.-ft. @ 3500 rpm.
Engine layout
Front, Transverse
Engine Model/Code
Sigma / G6CU
Engine displacement
3497 cm3 213.4 cu. in.
Number of cylinders
6
Engine configuration
V-engine
Cylinder Bore
93 mm 3.66 in.
Piston Stroke
85.8 mm 3.38 in.
Compression ratio
10:1
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
DOHC
Engine oil capacity
4.3 l 4.54 US qt | 3.78 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
8.2 l 8.66 US qt | 7.21 UK qt

Volume and weights

Kerb Weight
2136 kg 4709 lbs.
Max. weight
2674 kg 5895 lbs.
Max load
538 kg 1186 lbs.
Trunk (boot) space - minimum
617 l 21.8 cu. ft.
Trunk (boot) space - maximum
3610 l 127.5 cu. ft.
Fuel tank capacity
75 l 19.81 US gal | 16.5 UK gal

Dimensions

Length
4930 mm 194.09 in.
Width
1895 mm 74.61 in.
Height
1760 mm 69.29 in.
Wheelbase
2910 mm 114.57 in.
Front track
1635 mm 64.37 in.
Rear (Back) track
1610 mm 63.39 in.
Ride height (ground clearance)
170 mm 6.69 in.
Drag coefficient (Cd)
0.40
Minimum turning circle (turning diameter)
12.6 m 41.34 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
5 gears, automatic transmission
Front suspension
Suspension strut
Rear suspension
Coil spring
Front brakes
Ventilated discs
Rear brakes
Disc
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Tire size
215/70 R15
Wheel rim size
15
