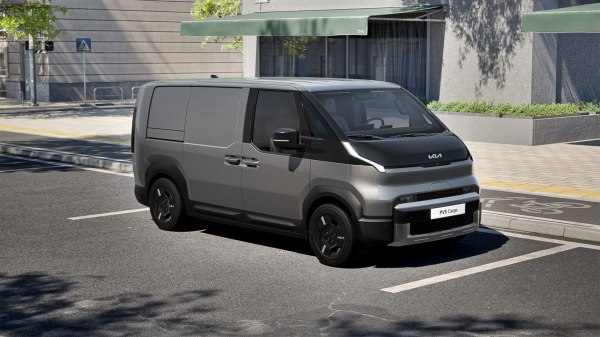

Kia PV5 Cargo L2/H1 51.5 kWh (122 Hp) Standard Range | Technical specs, data, battery, electric range, Dimensions

Key specs

Kia PV5 Cargo L2/H1 51.5 kWh (122 Hp) Standard Range /Minivan 2025 - /

What is the body type of Kia PV5 Cargo L2/H1?

Minivan, 5 Doors, 2 Seats

What is the all-electric range of 51.5 kWh (122 Hp) Standard Range?

291.3 km
181 mi

How fast is 2025 PV5 Cargo L2/H1 51.5 kWh (122 Hp) Standard Range?

135 km/h | 84 mph
0-100 km/h: 16.3 sec
0-60 mph: 15.5 sec

What is the power output of Kia PV5 Minivan 2025 51.5 kWh (122 Hp) Standard Range?

122 Hp, 250 Nm
184 lb.-ft.

What is the drivetrain of Kia PV5 Cargo L2/H1 Minivan 2025 51.5 kWh (122 Hp) Standard Range?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2025 Kia PV5 Minivan?

4695 mm
184.84 in.

What is the width of 2025 Kia PV5 Minivan?

1895 mm
74.61 in.

What is the kerb weight of 2025 Kia PV5 Cargo L2/H1 51.5 kWh (122 Hp) Standard Range?

1860 kg
4101 lbs.

What is the maximum permissible mass of 2025 Kia PV5 Cargo L2/H1 51.5 kWh (122 Hp) Standard Range?

2650 kg
5842 lbs.

What is the trunk (boot) capacity of 2025 Kia PV5 Minivan?

4400 l
155.4 cu. ft.

What are the number of gears and the gearbox type of 2025 Kia PV5 Cargo L2/H1 51.5 kWh (122 Hp) Standard Range?

1, automatic transmission

Kia
- Kia PV5
  - PV5 Cargo L2/H1
    - 71.2 kWh (163 Hp) Long Range
    - 51.5 kWh (122 Hp) Standard Range

Compare

General information

Brand

Kia

Model

PV5

Generation

PV5 Cargo L2/H1

Modification (Engine)

51.5 kWh (122 Hp) Standard Range

Start of production

May, 2025

Powertrain Architecture

BEV (Electric Vehicle)

Body type

Minivan

Seats

Doors

Looking for Kia PV5 on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

16.3 sec

Acceleration 0 - 62 mph

16.3 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

15.5 sec

Maximum speed

135 km/h 84 mph

Weight-to-power ratio

15.2 kg/Hp, 65.6 Hp/tonne

Weight-to-torque ratio

7.4 kg/Nm, 134.4 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

51.5 kWh

Battery voltage

400 V

Battery technology

Lithium nickel manganese cobalt oxides (Li-NMC)

Battery location

Below the floor

Electric range (WLTP)

291.3 km 181 mi

Charging ports

Charging times

Electric motor 1

Electric motor power

122 Hp

Electric motor Torque

250 Nm 184 lb.-ft.

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

122 Hp

System torque

250 Nm 184 lb.-ft.

Volume and weights

Kerb Weight

1860 kg 4101 lbs.

Max. weight

2650 kg 5842 lbs.

Max load

790 kg 1742 lbs.

Trunk (boot) space - maximum

4400 l 155.4 cu. ft.

Max. roof load

100 kg 220 lbs.

Permitted trailer load with brakes (12%)

450 kg 992 lbs.

Dimensions

Length

4695 mm 184.84 in.

Width

1895 mm 74.61 in.

Height

1923 mm 75.71 in.

Wheelbase

2995 mm 117.91 in.

Minimum turning circle (turning diameter)

10.8 m 35.43 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Double wishbone

Rear suspension

Torsion bar

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

215/65 R16

Wheel rim size

Specs of Kia PV5 Cargo L2/H1 51.5 kWh (122 Hp) Standard Range /2025, 2026/
