Kia Magentis I 2.5 V6 (169 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

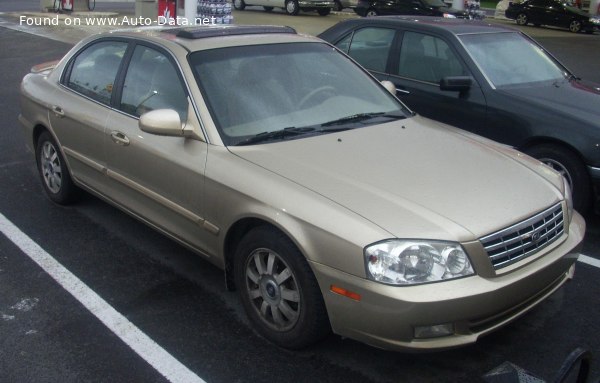

Kia Magentis I 2.5 V6 (169 Hp) Automatic /Sedan 2000 - 2005/

What is the body type of Kia Magentis I?

Sedan, 4 Doors, 5 Seats

What is the fuel consumption and economy of Kia Magentis I 2.5 V6 (169 Hp) Automatic?

10.4 l/100 km
22.6 US mpg
27.2 UK mpg
9.6 km/l

How environmentally friendly is Kia Magentis 2.5 V6 (169 Hp) Automatic?

Euro 3

How fast is 2000 Magentis I 2.5 V6 (169 Hp) Automatic?

209 km/h | 130 mph
0-100 km/h: 8.8 sec
0-60 mph: 8.4 sec

What is the power output of Kia Magentis Sedan 2000 2.5 V6 (169 Hp) Automatic?

169 Hp, 230 Nm
170 lb.-ft.

What is the engine displacement of Kia Magentis Sedan 2000 2.5 V6 (169 Hp) Automatic?

2.5 l
2493 cm³
152.13 cu. in.

What is the number of cylinders in 2000 Kia 2.5 V6 (169 Hp) Automatic?

6, V-engine

What is the drivetrain of Kia Magentis I Sedan 2000 2.5 V6 (169 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2000 Kia Magentis Sedan?

4730 mm
186.22 in.

What is the width of 2000 Kia Magentis Sedan?

1820 mm
71.65 in.

What is the kerb weight of 2000 Kia Magentis I 2.5 V6 (169 Hp) Automatic?

1500 kg
3307 lbs.

What is the maximum permissible mass of 2000 Kia Magentis I 2.5 V6 (169 Hp) Automatic?

2000 kg
4409 lbs.

What is the trunk (boot) capacity of 2000 Kia Magentis Sedan?

479 - 810 l
16.9 - 28.6 cu. ft.

What are the number of gears and the gearbox type of 2000 Kia Magentis I 2.5 V6 (169 Hp) Automatic?

4, automatic transmission

Kia
- Kia Magentis
  - Magentis I
    - 2.5 V6 (169 Hp) Automatic
    - 2.5 V6 (169 Hp)
    - 2.0 (136 Hp) Automatic
    - 2.0 (136 Hp)

Compare

General information

Brand

Kia

Model

Magentis

Generation

Magentis I

Modification (Engine)

2.5 V6 (169 Hp) Automatic

Start of production

2000

End of production

2005

Powertrain Architecture

Internal Combustion engine

Body type

Sedan

Seats

Doors

Looking for Kia Magentis on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

15.2 l/100 km 15.5 US mpg
18.6 UK mpg
6.6 km/l

Fuel consumption (economy) - extra urban

7.6 l/100 km 30.9 US mpg
37.2 UK mpg
13.2 km/l

Fuel consumption (economy) - combined

10.4 l/100 km 22.6 US mpg
27.2 UK mpg
9.6 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

8.8 sec

Acceleration 0 - 62 mph

8.8 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.4 sec

Maximum speed

209 km/h 130 mph

Emission standard

Euro 3

Weight-to-power ratio

8.9 kg/Hp, 112.7 Hp/tonne

Weight-to-torque ratio

6.5 kg/Nm, 153.3 Nm/tonne

Engine specs

Power

169 Hp @ 6000 rpm.

Power per litre

67.8 Hp/l

Torque

230 Nm @ 4000 rpm. 170 lb.-ft. @ 4000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

Delta / G6BV

Engine displacement

2493 cm³ 152.13 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

84 mm 3.31 in.

Piston Stroke

75 mm 2.95 in.

Compression ratio

10:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

5.5 l 5.81 US qt | 4.84 UK qt

Volume and weights

Kerb Weight

1500 kg 3307 lbs.

Max. weight

2000 kg 4409 lbs.

Max load

500 kg 1102 lbs.

Trunk (boot) space - minimum

479 l 16.9 cu. ft.

Trunk (boot) space - maximum

810 l 28.6 cu. ft.

Fuel tank capacity

65 l 17.17 US gal | 14.3 UK gal

Max. roof load

100 kg 220 lbs.

Permitted trailer load with brakes (12%)

1700 kg 3748 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Dimensions

Length

4730 mm 186.22 in.

Width

1820 mm 71.65 in.

Height

1410 mm 55.51 in.

Wheelbase

2700 mm 106.3 in.

Front track

1540 mm 60.63 in.

Rear (Back) track

1530 mm 60.24 in.

Minimum turning circle (turning diameter)

11.6 m 38.06 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

4 gears, automatic transmission

Front suspension

Double wishbone

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

205/60 R15

Wheel rim size

Specs of Kia Magentis I 2.5 V6 (169 Hp) Automatic /2000, 2001, 2002, 2003, 2004, 2005/
