Kia Grand Carnival III (facelift 2018) 3.3 V6 (270 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

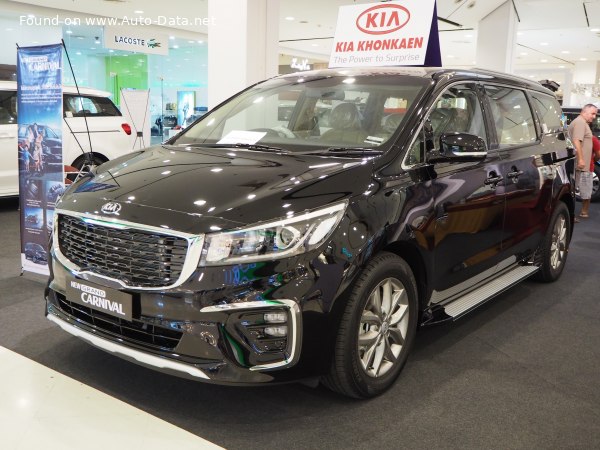

2018 Kia Grand Carnival III (facelift 2018) - Photo 1

Key specs

Kia Grand Carnival III (facelift 2018) 3.3 V6 (270 Hp) Automatic /Minivan 2018 - 2020/

What is the body type of Kia Grand Carnival III (facelift 2018)?

Minivan, 5 Doors, 8-11 Seats

What is the power output of Kia Carnival Minivan 2018 3.3 V6 (270 Hp) Automatic?

270 Hp

What is the engine displacement of Kia Carnival Minivan 2018 3.3 V6 (270 Hp) Automatic?

3.3 l
3342 cm³
203.94 cu. in.

What is the number of cylinders in 2018 Kia 3.3 V6 (270 Hp) Automatic?

6, V-engine

What is the drivetrain of Kia Grand Carnival III (facelift 2018) Minivan 2018 3.3 V6 (270 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2018 Kia Carnival Minivan?

5115 mm
201.38 in.

What is the width of 2018 Kia Carnival Minivan?

1985 mm
78.15 in.

What are the number of gears and the gearbox type of 2018 Kia Grand Carnival III (facelift 2018) 3.3 V6 (270 Hp) Automatic?

6, automatic transmission Sportmatic

Kia
- Kia Carnival
  - Grand Carnival III (facelift 2018)
    - 3.3 V6 (270 Hp) Automatic

Compare

General information

Brand

Kia

Model

Carnival

Generation

Grand Carnival III (facelift 2018)

Modification (Engine)

3.3 V6 (270 Hp) Automatic

Start of production

2018

End of production

2020

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

8-11

Doors

Looking for Kia Carnival on the used-car market?

Check its history →

Performance specs

Fuel Type

Petrol (Gasoline)

Engine specs

Power

270 Hp @ 6400 rpm.

Power per litre

80.8 Hp/l

Engine layout

Front, Longitudinal

Engine Model/Code

G6DF

Engine displacement

3342 cm³ 203.94 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

92 mm 3.62 in.

Piston Stroke

83.8 mm 3.3 in.

Compression ratio

10.69:1

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Engine oil capacity

6 l 6.34 US qt | 5.28 UK qt

Engine oil specification

Coolant

11.5 l 12.15 US qt | 10.12 UK qt

Volume and weights

Fuel tank capacity

80 l 21.13 US gal | 17.6 UK gal

Dimensions

Length

5115 mm 201.38 in.

Width

1985 mm 78.15 in.

Height

1740 mm 68.5 in.

Wheelbase

3060 mm 120.47 in.

Front track

1740-1745 mm 68.5 - 68.7 in.

Rear (Back) track

1747-1752 mm 68.78 - 68.98 in.

Ride height (ground clearance)

171 mm 6.73 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission Sportmatic

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Tire size

235/65 R17; 235/60 R18

Wheel rim size

17; 18

Specs of Kia Grand Carnival III (facelift 2018) 3.3 V6 (270 Hp) Automatic /2018, 2019, 2020/
