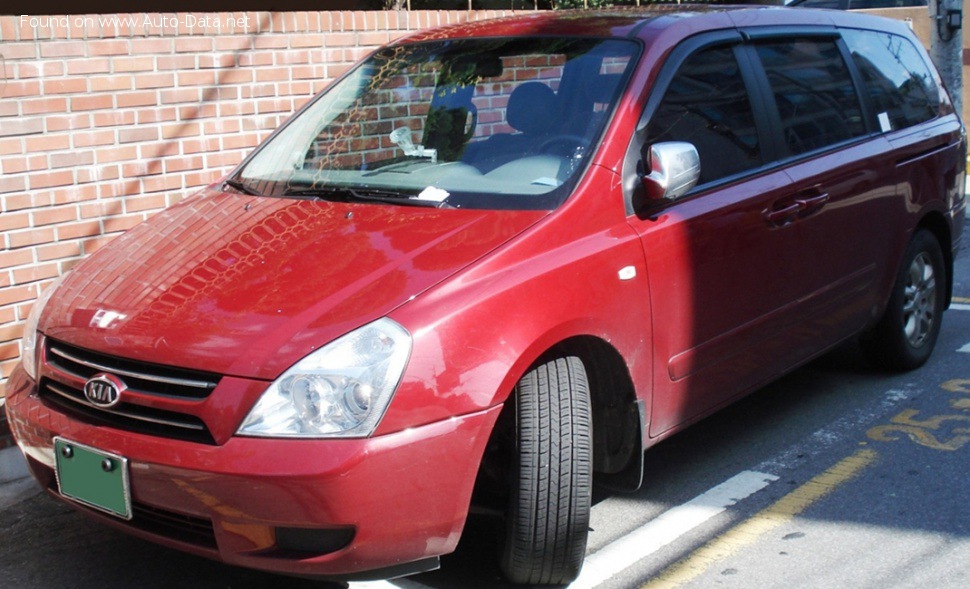

Kia Grand Carnival II 2.9 CRDi (170 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

Kia Grand Carnival II 2.9 CRDi (170 Hp) /Minivan 2006 - 2010/

What is the body type of Kia Grand Carnival II?

Minivan, 5 Doors, 7 Seats

What is the power output of Kia Carnival Minivan 2006 2.9 CRDi (170 Hp)?

170 Hp, 353 Nm
260 lb.-ft.

What is the engine displacement of Kia Carnival Minivan 2006 2.9 CRDi (170 Hp)?

2.9 l
2902 cm³
177.09 cu. in.

What is the number of cylinders in 2006 Kia 2.9 CRDi (170 Hp)?

4, Inline

What is the drivetrain of Kia Grand Carnival II Minivan 2006 2.9 CRDi (170 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2006 Kia Carnival Minivan?

5130 mm
201.97 in.

What is the width of 2006 Kia Carnival Minivan?

1985 mm
78.15 in.

What is the kerb weight of 2006 Kia Grand Carnival II 2.9 CRDi (170 Hp)?

2211 kg
4874 lbs.

What is the trunk (boot) capacity of 2006 Kia Carnival Minivan?

912 - 4007 l
32.2 - 141.5 cu. ft.

What are the number of gears and the gearbox type of 2006 Kia Grand Carnival II 2.9 CRDi (170 Hp)?

5, manual transmission

Kia
- Kia Carnival
  - Grand Carnival II
    - 3.8 V6 (248 Hp) Automatic
    - 2.9 CRDi (192 Hp) Automatic
    - 2.9 CRDi (185 Hp) Automatic
    - 2.9 CRDi (170 Hp) Automatic
    - 2.9 CRDi (170 Hp)

Compare

General information

Brand

Kia

Model

Carnival

Generation

Grand Carnival II

Modification (Engine)

2.9 CRDi (170 Hp)

Start of production

2006

End of production

2010

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

Doors

Looking for Kia Carnival on the used-car market?

Check its history →

Performance specs

Fuel Type

Diesel

Weight-to-power ratio

13 kg/Hp, 76.9 Hp/tonne

Weight-to-torque ratio

6.3 kg/Nm, 159.7 Nm/tonne

Engine specs

Power

170 Hp @ 3700 rpm.

Power per litre

58.6 Hp/l

Torque

353 Nm @ 2000-3000 rpm. 260 lb.-ft. @ 2000-3000 rpm.

Engine layout

Front, Transverse

Engine displacement

2902 cm³ 177.09 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

97.1 mm 3.82 in.

Piston Stroke

98 mm 3.86 in.

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

6.6 l 6.97 US qt | 5.81 UK qt

Engine oil specification

Coolant

10 l 10.57 US qt | 8.8 UK qt

Volume and weights

Kerb Weight

2211 kg 4874 lbs.

Trunk (boot) space - minimum

912 l 32.2 cu. ft.

Trunk (boot) space - maximum

4007 l 141.5 cu. ft.

Fuel tank capacity

80 l 21.13 US gal | 17.6 UK gal

Dimensions

Length

5130 mm 201.97 in.

Width

1985 mm 78.15 in.

Height

1780 mm 70.08 in.

Wheelbase

3020 mm 118.9 in.

Front track

1685 mm 66.34 in.

Rear (Back) track

1685 mm 66.34 in.

Drag coefficient (C_d)

0.34

Minimum turning circle (turning diameter)

12.1 m 39.7 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

5 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Dependent spring suspension with transverse rod

Front brakes

Ventilated discs

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

235/60 R17

Wheel rim size

Specs of Kia Grand Carnival II 2.9 CRDi (170 Hp) /2006, 2007, 2008, 2009, 2010/
