KGM Korando e-Motion 61.5 kWh (190 Hp) | Technical specs, data, battery, electric range, Dimensions

Key specs

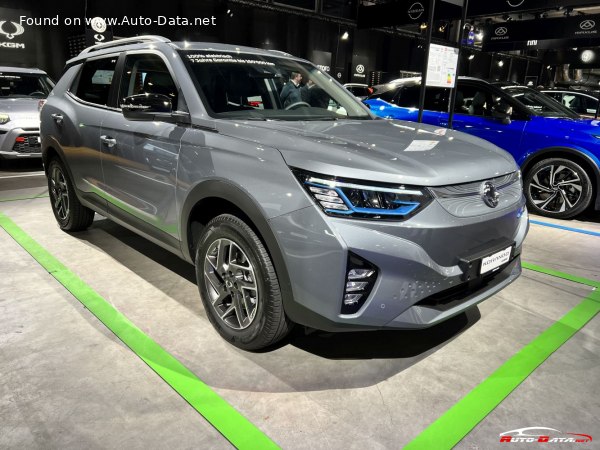

KGM Korando e-Motion 61.5 kWh (190 Hp) /SUV 2023 - /

What is the body type of KGM Korando?

SUV, 5 Doors, 5 Seats

What is the all-electric range of e-Motion 61.5 kWh (190 Hp)?

339-346 km
211 - 215 mi

What is the electricity consumption of KGM Korando e-Motion 61.5 kWh (190 Hp)?

16.8-19.4 kWh/100 km
27.04 - 31.22 kWh/100 mi
125 - 108 MPGe
6 - 5.2 km/kWh
3.7 - 3.2 mi/kWh

How fast is 2023 Korando e-Motion 61.5 kWh (190 Hp)?

156 km/h | 97 mph
0-100 km/h: 8.5 sec
0-60 mph: 8.1 sec

What is the power output of KGM Korando SUV 2023 e-Motion 61.5 kWh (190 Hp)?

190 Hp, 360 Nm
266 lb.-ft.

What is the drivetrain of KGM Korando SUV 2023 e-Motion 61.5 kWh (190 Hp)?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2023 KGM Korando SUV?

4465 mm
175.79 in.

What is the width of 2023 KGM Korando SUV?

1870 mm
73.62 in.

What is the kerb weight of 2023 KGM Korando e-Motion 61.5 kWh (190 Hp)?

1765-1822 kg
3891 - 4017 lbs.

What is the maximum permissible mass of 2023 KGM Korando e-Motion 61.5 kWh (190 Hp)?

2250 kg
4960 lbs.

What is the trunk (boot) capacity of 2023 KGM Korando SUV?

551 - 1248 l
19.5 - 44.1 cu. ft.

What is the number of gears in What is the gearbox type of 2023 KGM Korando e-Motion 61.5 kWh (190 Hp)?

1, automatic transmission

KGM
- KGM Korando
  - Korando
    - e-Motion 61.5 kWh (190 Hp)
    - 1.5 T-GDI (163 Hp) Automatic
    - 1.5 T-GDI (163 Hp) 4WD Automatic
    - 1.5 T-GDI (163 Hp) 4WD
    - 1.5 T-GDI (163 Hp)

Compare

General information

Brand

KGM

Model

Korando

Generation

Korando

Modification (Engine)

e-Motion 61.5 kWh (190 Hp)

Start of production

2023 year

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV

Seats

Doors

Looking for KGM Korando on the used-car market?

Check its history →

Performance specs

Fuel Type

Electricity

Acceleration 0 - 100 km/h

8.5 sec

Acceleration 0 - 62 mph

8.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.1 sec

Maximum speed

156 km/h 97 mph

Weight-to-power ratio

9.3 kg/Hp, 107.6 Hp/tonne

Weight-to-torque ratio

4.9 kg/Nm, 204 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

61.5 kWh

Net (usable) battery capacity

55.3 kWh

Battery voltage

400 V

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor

Electric range (WLTP)

339-346 km 211 - 215 mi

Average Energy consumption (WLTP)

16.8-19.4 kWh/100 km 27.04 - 31.22 kWh/100 mi
125 - 108 MPGe
6 - 5.2 km/kWh
3.7 - 3.2 mi/kWh

Charging ports

Electric motor 1

Electric motor power

190 Hp

Electric motor Torque

360 Nm 266 lb.-ft.

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

190 Hp

System torque

360 Nm 266 lb.-ft.

Volume and weights

Kerb Weight

1765-1822 kg 3891 - 4017 lbs.

Max. weight

2250 kg 4960 lbs.

Max load

428-485 kg 944 - 1069 lbs.

Trunk (boot) space - minimum

551 l 19.5 cu. ft.

Trunk (boot) space - maximum

1248 l 44.1 cu. ft.

Permitted trailer load with brakes (12%)

1500 kg 3307 lbs.

Permitted trailer load without brakes

500 kg 1102 lbs.

Dimensions

Length

4465 mm 175.79 in.

Width

1870 mm 73.62 in.

Height

1635 mm 64.37 in.

Wheelbase

2675 mm 105.31 in.

Front track

1590 mm 62.6 in.

Rear (Back) track

1610 mm 63.39 in.

Front overhang

922 mm 36.3 in.

Rear overhang

868 mm 34.17 in.

Ride height (ground clearance)

169 mm 6.65 in.

Minimum turning circle (turning diameter)

10.7 m 35.1 ft.

Approach angle

19.5°

Departure angle

25°

Ramp-over (brakeover) angle

15°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

215/65 R17

Wheel rims size

6.5J x 17

Specs of KGM Korando e-Motion 61.5 kWh (190 Hp) /2023, 2024, 2025, 2026/
