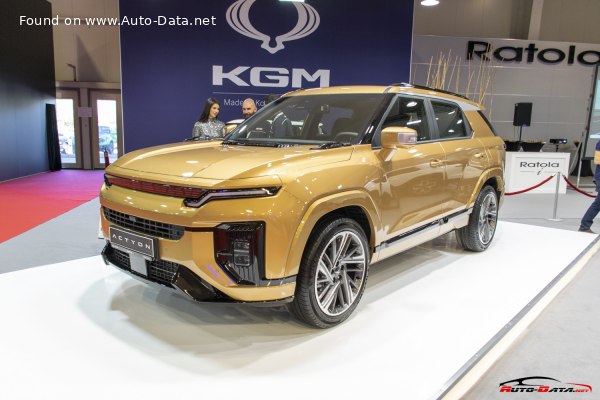

KGM Actyon 1.5 GDI (163 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

KGM Actyon 1.5 GDI (163 Hp) /Coupe, SUV 2024 - /

What is the body type of KGM Actyon?

Coupe, SUV, 5 Doors, 5 Seats

What is the fuel consumption and economy of KGM Actyon 1.5 GDI (163 Hp)?

7.95 l/100 km
29.6 US mpg
35.5 UK mpg
12.6 km/l

How environmentally friendly is KGM Actyon 1.5 GDI (163 Hp)?

181 g/km CO₂
Euro 6e

How fast is 2024 Actyon 1.5 GDI (163 Hp)?

194 km/h | 121 mph

What is the power output of KGM Actyon Coupe, SUV 2024 1.5 GDI (163 Hp)?

163 Hp, 280 Nm
207 lb.-ft.

What is the engine displacement of KGM Actyon Coupe, SUV 2024 1.5 GDI (163 Hp)?

1.5 l
1497 cm³
91.35 cu. in.

What is the number of cylinders in 2024 KGM 1.5 GDI (163 Hp)?

4, Inline

What is the drivetrain of KGM Actyon Coupe, SUV 2024 1.5 GDI (163 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2024 KGM Actyon Coupe, SUV?

4740 mm
186.61 in.

What is the width of 2024 KGM Actyon Coupe, SUV?

1910 mm
75.2 in.

What is the kerb weight of 2024 KGM Actyon 1.5 GDI (163 Hp)?

1550 kg
3417 lbs.

What is the maximum permissible mass of 2024 KGM Actyon 1.5 GDI (163 Hp)?

2050 kg
4519 lbs.

What is the trunk (boot) capacity of 2024 KGM Actyon Coupe, SUV?

668 - 1568 l
23.6 - 55.4 cu. ft.

What is the number of gears in What is the gearbox type of 2024 KGM Actyon 1.5 GDI (163 Hp)?

6, manual transmission

KGM
- KGM Actyon
  - Actyon
    - 1.5 T-GDI (204 Hp) Hybrid DHT
    - 1.5 GDI (163 Hp) Automatic
    - 1.5 GDI (163 Hp) 4WD Automatic
    - 1.5 GDI (163 Hp)

Compare

General information

Brand

KGM

Model

Actyon

Generation

Actyon

Modification (Engine)

1.5 GDI (163 Hp)

Start of production

2024 year

Powertrain Architecture

Internal Combustion engine

Body type

Coupe, SUV

Seats

Doors

Looking for KGM Actyon on the used-car market?

Check its history →

Performance specs

Combined fuel consumption (WLTP)

7.95 l/100 km 29.6 US mpg
35.5 UK mpg
12.6 km/l

CO₂ emissions (WLTP)

181 g/km

Fuel Type

Petrol (Gasoline)

Maximum speed

194 km/h 121 mph

Emission standard

Euro 6e

Weight-to-power ratio

9.5 kg/Hp, 105.2 Hp/tonne

Weight-to-torque ratio

5.5 kg/Nm, 180.6 Nm/tonne

Engine specs

Power

163 Hp @ 5000-5500 rpm.

Power per litre

108.9 Hp/l

Torque

280 Nm @ 1500-4000 rpm. 207 lb.-ft. @ 1500-4000 rpm.

Engine layout

Front, Transverse

Engine Model/Code

G15DTF

Engine displacement

1497 cm³ 91.35 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

76 mm 2.99 in.

Piston Stroke

82.5 mm 3.25 in.

Compression ratio

9.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

7 l 7.4 US qt | 6.16 UK qt

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

1550 kg 3417 lbs.

Max. weight

2050 kg 4519 lbs.

Max load

500 kg 1102 lbs.

Trunk (boot) space - minimum

668 l 23.6 cu. ft.

Trunk (boot) space - maximum

1568 l 55.4 cu. ft.

Fuel tank capacity

50 l 13.21 US gal | 11 UK gal

Max. roof load

75 kg 165 lbs.

Permitted trailer load with brakes (12%)

1500 kg 3307 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

85 kg 187 lbs.

Dimensions

Length

4740 mm 186.61 in.

Width

1910 mm 75.2 in.

Height

1680 mm 66.14 in.

Wheelbase

2680 mm 105.51 in.

Front track

1610-1635 mm 63.39 - 64.37 in.

Rear (Back) track

1630-1655 mm 64.17 - 65.16 in.

Front overhang

915 mm 36.02 in.

Rear overhang

1145 mm 45.08 in.

Ride height (ground clearance)

206 mm 8.11 in.

Minimum turning circle (turning diameter)

10.86 m 35.63 ft.

Approach angle

17.6°

Departure angle

21.4°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Disc

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

245/45 R20

Wheel rims size

8J x 20

Specs of KGM Actyon 1.5 GDI (163 Hp) /2024, 2025, 2026/
