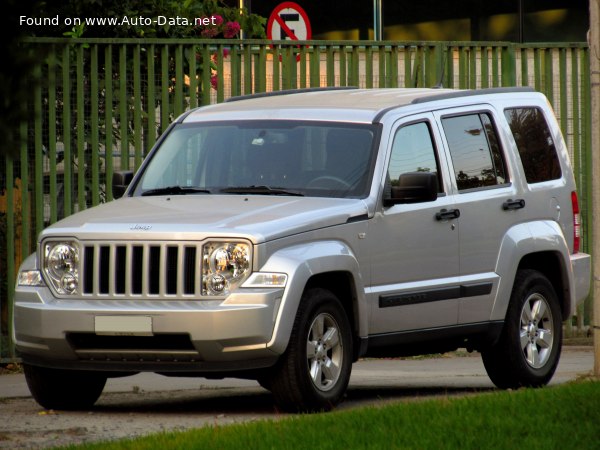

Jeep Cherokee IV (KK) 2.8 CRD (177 Hp) | Technical Specs, Fuel consumption, Dimensions

Key specs

Jeep Cherokee IV (KK) 2.8 CRD (177 Hp) /SUV 2008 - 2012/

What is the body type of Jeep Cherokee IV (KK)?

SUV, 5 Doors, 5 Seats

What is the fuel consumption and economy of Jeep Cherokee IV (KK) 2.8 CRD (177 Hp)?

9.4 l/100 km
25 US mpg
30.1 UK mpg
10.6 km/l

How environmentally friendly is Jeep Cherokee 2.8 CRD (177 Hp)?

Euro 4

How fast is 2008 Cherokee IV (KK) 2.8 CRD (177 Hp)?

179 km/h | 111 mph
0-100 km/h: 10.5 sec
0-60 mph: 10 sec

What is the power output of Jeep Cherokee SUV 2008 2.8 CRD (177 Hp)?

177 Hp, 460 Nm
339 lb.-ft.

What is the engine displacement of Jeep Cherokee SUV 2008 2.8 CRD (177 Hp)?

2.8 l
2778 cm³
169.52 cu. in.

What is the number of cylinders in 2008 Jeep 2.8 CRD (177 Hp)?

4, Inline

What is the drivetrain of Jeep Cherokee IV (KK) SUV 2008 2.8 CRD (177 Hp)?

All wheel drive (4x4). ICE.

What is the length of 2008 Jeep Cherokee SUV?

4493 mm
176.89 in.

What is the width of 2008 Jeep Cherokee SUV?

1839 mm
72.4 in.

What is the kerb weight of 2008 Jeep Cherokee IV (KK) 2.8 CRD (177 Hp)?

1980 kg
4365 lbs.

What is the maximum permissible mass of 2008 Jeep Cherokee IV (KK) 2.8 CRD (177 Hp)?

2520 kg
5556 lbs.

What is the trunk (boot) capacity of 2008 Jeep Cherokee SUV?

419 - 1404 l
14.8 - 49.6 cu. ft.

What are the number of gears and the gearbox type of 2008 Jeep Cherokee IV (KK) 2.8 CRD (177 Hp)?

5, automatic transmission

Jeep Cherokee IV (KK) 2.8 CRD (177 Hp)

Jeep
- Jeep Cherokee
  - Cherokee IV (KK)
    - 3.7 V6 (205 Hp)
    - 2.8 CRD (177 Hp)

Compare

General information

Brand

Jeep

Model

Cherokee

Generation

Cherokee IV (KK)

Modification (Engine)

2.8 CRD (177 Hp)

Start of production

2008

End of production

2012

Powertrain Architecture

Internal Combustion engine

Body type

SUV (Sport Utility Vehicle)

Seats

Doors

Looking for Jeep Cherokee on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

12.2 l/100 km 19.3 US mpg
23.2 UK mpg
8.2 km/l

Fuel consumption (economy) - extra urban

7.8 l/100 km 30.2 US mpg
36.2 UK mpg
12.8 km/l

Fuel consumption (economy) - combined

9.4 l/100 km 25 US mpg
30.1 UK mpg
10.6 km/l

Fuel Type

Diesel

Acceleration 0 - 100 km/h

10.5 sec

Acceleration 0 - 62 mph

10.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

10 sec

Maximum speed

179 km/h 111 mph

Emission standard

Euro 4

Weight-to-power ratio

11.2 kg/Hp, 89.4 Hp/tonne

Weight-to-torque ratio

4.3 kg/Nm, 232.3 Nm/tonne

Engine specs

Power

177 Hp @ 3800 rpm.

Power per litre

63.7 Hp/l

Torque

460 Nm @ 2000 rpm. 339 lb.-ft. @ 2000 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

ENS

Engine displacement

2778 cm³ 169.52 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

94 mm 3.7 in.

Piston Stroke

100 mm 3.94 in.

Compression ratio

17.5:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

6.6 l 6.97 US qt | 5.81 UK qt

Engine oil specification

Coolant

12 l 12.68 US qt | 10.56 UK qt

Volume and weights

Kerb Weight

1980 kg 4365 lbs.

Max. weight

2520 kg 5556 lbs.

Max load

540 kg 1190 lbs.

Trunk (boot) space - minimum

419 l 14.8 cu. ft.

Trunk (boot) space - maximum

1404 l 49.6 cu. ft.

Fuel tank capacity

70 l 18.49 US gal | 15.4 UK gal

Dimensions

Length

4493 mm 176.89 in.

Width

1839 mm 72.4 in.

Height

1797 mm 70.75 in.

Wheelbase

2694 mm 106.06 in.

Front track

1549 mm 60.98 in.

Rear (Back) track

1549 mm 60.98 in.

Drivetrain, brakes and suspension specs

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

5 gears, automatic transmission

Front suspension

Independent coil spring

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Tire size

235/65 R17; 235/60 R18

Jeep Cherokee IV (KK) 2.8 CRD (177 Hp)2008, 2009, 2010, 2011, 2012: specs, Fuel consumption, Dimensions
