Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic | Technical specs, data, fuel consumption, Dimensions

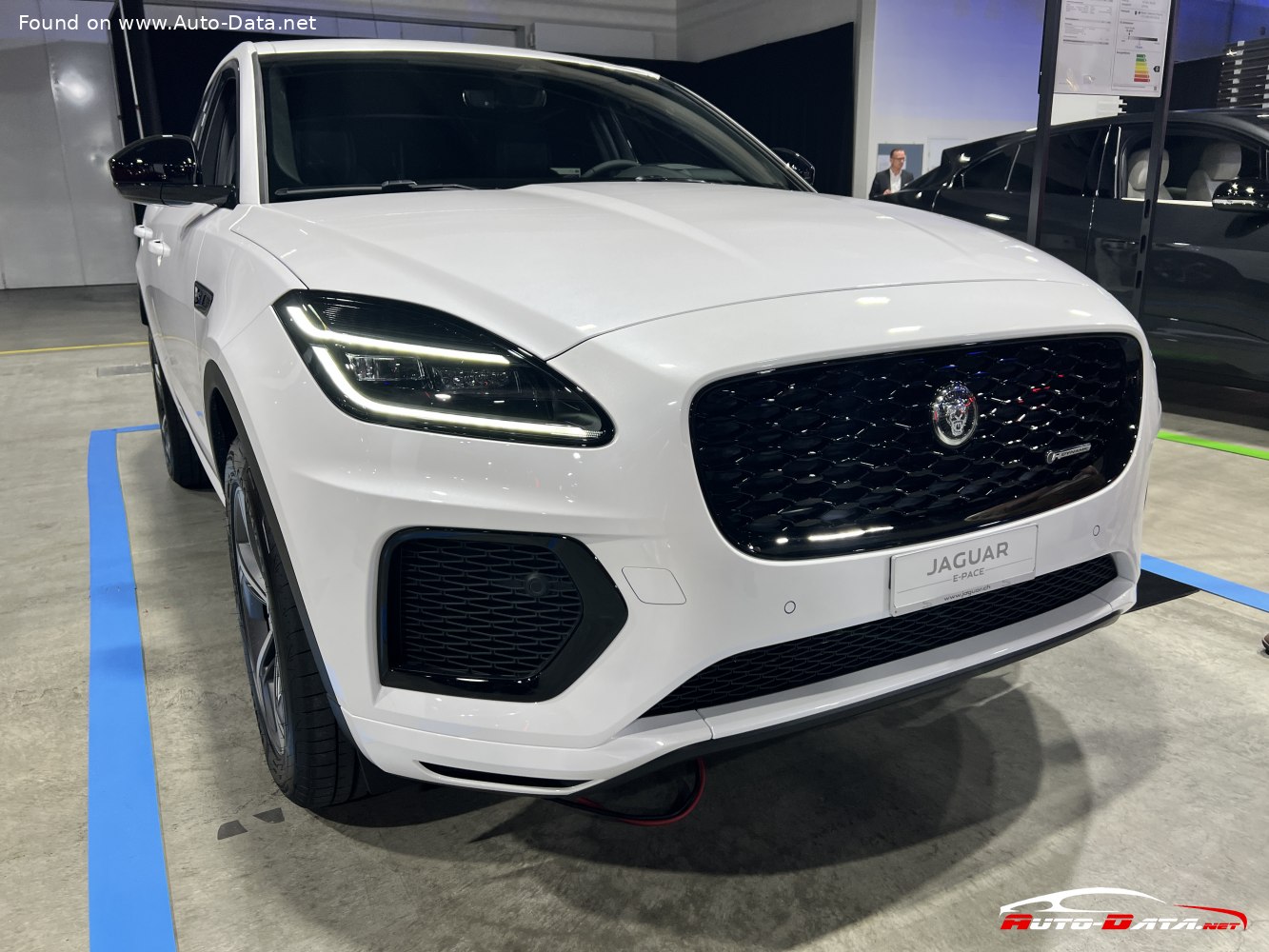

2021 Jaguar E-Pace (facelift 2020) - Photo 1

Key specs

Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic /SUV 2020 - 2023/

What is the body type of Jaguar E-Pace (facelift 2020)?

SUV, 5 Doors, 5 Seats

What is the fuel consumption and economy of Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

1.4-2 l/100 km
168 - 117.6 US mpg
201.8 - 141.2 UK mpg
71.4 - 50 km/l

How environmentally friendly is Jaguar E-Pace 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

31-44 g/km CO₂
Euro 6d

What is the all-electric range of 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

55-62 km
34 - 39 mi

What is the electricity consumption of Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

20 kWh/100 km
32.19 kWh/100 mi
105 MPGe
5 km/kWh
3.1 mi/kWh

How fast is 2020 E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

216 km/h | 134 mph
0-100 km/h: 6.5 sec
0-60 mph: 6.1 sec

What is the power output of Jaguar E-Pace SUV 2020 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

309 Hp, 540 Nm
398 lb.-ft.

What is the engine displacement of Jaguar E-Pace SUV 2020 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

1.5 l
1498 cm³
91.41 cu. in.

What is the number of cylinders in 2020 Jaguar 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

3, Inline

What is the drivetrain of Jaguar E-Pace (facelift 2020) SUV 2020 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

All wheel drive (4x4). PHEV (Plug-in Hybrid Electric Vehicle). The Internal combustion engine (ICE) permanently drives the front wheels of the vehicle, the electric motor drives the rear wheels of the vehicle, capable of running in full electric mode, only by the Internal combustion engine (ICE) or in mixed mode.

What is the length of 2020 Jaguar E-Pace SUV?

4395 mm
173.03 in.

What is the width of 2020 Jaguar E-Pace SUV?

1984 mm
78.11 in.

What is the kerb weight of 2020 Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

2098 kg
4625 lbs.

What is the maximum permissible mass of 2020 Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

2670 kg
5886 lbs.

What is the trunk (boot) capacity of 2020 Jaguar E-Pace SUV?

494 - 1170 l
17.4 - 41.3 cu. ft.

What are the number of gears and the gearbox type of 2020 Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic?

8, automatic transmission

Jaguar
- Jaguar E-Pace
  - E-Pace (facelift 2020)

Compare

General information

Brand

Jaguar

Model

E-Pace

Generation

E-Pace (facelift 2020)

Modification (Engine)

1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic

Start of production

October, 2020

End of production

October, 2023

Powertrain Architecture

PHEV (Plug-in Hybrid Electric Vehicle)

Body type

SUV

Seats

Doors

Looking for Jaguar E-Pace on the used-car market?

Check its history →

Performance specs

Combined fuel consumption (WLTP)

1.4-2 l/100 km 168 - 117.6 US mpg
201.8 - 141.2 UK mpg
71.4 - 50 km/l

CO₂ emissions (WLTP)

31-44 g/km

Fuel Type

Petrol / electricity

Acceleration 0 - 100 km/h

6.5 sec

Acceleration 0 - 62 mph

6.5 sec

Acceleration 0 - 60 mph

6.1 sec

Maximum speed

216 km/h 134 mph

Emission standard

Euro 6d

Weight-to-power ratio

6.8 kg/Hp, 147.3 Hp/tonne

Weight-to-torque ratio

3.9 kg/Nm, 257.4 Nm/tonne

Electric and hybrid car specs

Gross battery capacity

15 kWh

Net (usable) battery capacity

11.6 kWh

Battery technology

Lithium-ion (Li-Ion)

Battery location

Below the floor, under the rear seats

Electric range (WLTP)

55-62 km 34 - 39 mi

Average Energy consumption (WLTP)

20 kWh/100 km 32.19 kWh/100 mi
105 MPGe
5 km/kWh
3.1 mi/kWh

Charging ports

Charging times

Electric motor 1

Electric motor power

109 Hp

Electric motor Torque

260 Nm 192 lb.-ft.

Electric motor location

Rear axle, Transverse

System power

309 Hp @ 5500 rpm.

System torque

540 Nm @ 1600-4500 rpm. 398 lb.-ft. @ 1600-4500 rpm.

Internal combustion engine specs

Power

200 Hp

Power per litre

133.5 Hp/l

Torque

280 Nm 207 lb.-ft.

Engine layout

Front, Transverse

Engine Model/Code

Ingenium / AJ20P3

Engine displacement

1498 cm³ 91.41 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

83 mm 3.27 in.

Piston Stroke

92.29 mm 3.63 in.

Compression ratio

10.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

5.9 l 6.23 US qt | 5.19 UK qt

Engine oil specification

Coolant

14.6 l 15.43 US qt | 12.85 UK qt

Engine systems

Start & Stop System
Particulate filter

Volume and weights

Kerb Weight

2098 kg 4625 lbs.

Max. weight

2670 kg 5886 lbs.

Max load

572 kg 1261 lbs.

Trunk (boot) space - minimum

494 l 17.4 cu. ft.

Trunk (boot) space - maximum

1170 l 41.3 cu. ft.

Fuel tank capacity

57.6 l 15.22 US gal | 12.67 UK gal

Max. roof load

75 kg 165 lbs.

Permitted trailer load with brakes (12%)

1600 kg 3527 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

100 kg 220 lbs.

Dimensions

Length

4395 mm 173.03 in.

Width with mirrors folded

1984 mm 78.11 in.

Width including mirrors

2088 mm 82.2 in.

Height

1648 mm 64.88 in.

Wheelbase

2681 mm 105.55 in.

Front track

1625 mm 63.98 in.

Rear (Back) track

1624 mm 63.94 in.

Front overhang

882 mm 34.72 in.

Rear overhang

832 mm 32.76 in.

Ride height (ground clearance)

212 mm 8.35 in.

Drag coefficient (C_d)

0.34

Minimum turning circle (turning diameter)

12 m 39.37 ft.

Approach angle

22°

Departure angle

28°

Ramp-over (breakover) angle

20.7°

Wading depth

500 mm 19.69 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) permanently drives the front wheels of the vehicle, the electric motor drives the rear wheels of the vehicle, capable of running in full electric mode, only by the Internal combustion engine (ICE) or in mixed mode.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

8 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 349 mm

Rear brakes

Ventilated discs, 325 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

235/60 R18; 235/55 R19; 235/50 R20

Wheel rim size

18; 19; 20

Specs of Jaguar E-Pace (facelift 2020) 1.5i P300e (309 Hp) Plug-in Hybrid AWD Automatic /2020, 2021, 2022, 2023/
