Iveco Massif 4x4 3.0 HPT (176 Hp) | Technical Specs, Fuel consumption, Dimensions

Key specs

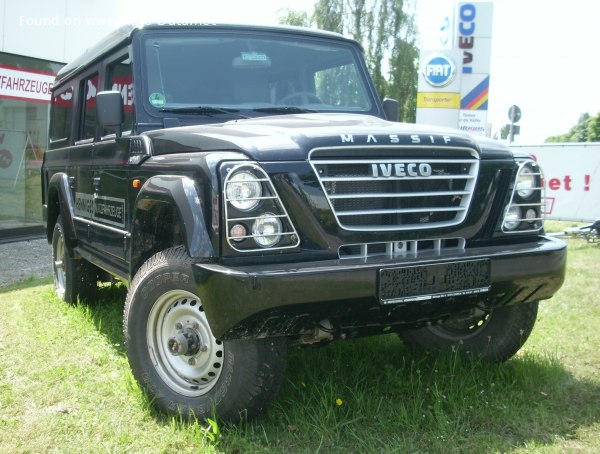

Iveco Massif 4x4 3.0 HPT (176 Hp) /Off-road 2008 - 2011/

What is the body type of Iveco Massif 4x4?

Off-road, 5 Doors, 5 Seats

What is the fuel consumption and economy of Iveco Massif 4x4 3.0 HPT (176 Hp)?

10.4 l/100 km
22.6 US mpg
27.2 UK mpg
9.6 km/l

How fast is 2008 Massif 4x4 3.0 HPT (176 Hp)?

140 km/h | 87 mph

What is the power output of Iveco Massif 4x4 Off-road 2008 3.0 HPT (176 Hp)?

176 Hp, 400 Nm
295 lb.-ft.

What is the drivetrain of Iveco Massif 4x4 Off-road 2008 3.0 HPT (176 Hp)?

All wheel drive (4x4). ICE.

What is the length of 2008 Iveco Massif 4x4 Off-road?

4720 mm
185.83 in.

What is the width of 2008 Iveco Massif 4x4 Off-road?

1750 mm
68.9 in.

What is the kerb weight of 2008 Iveco Massif 4x4 3.0 HPT (176 Hp)?

2140 kg
4718 lbs.

What is the maximum permissible mass of 2008 Iveco Massif 4x4 3.0 HPT (176 Hp)?

3050 kg
6724 lbs.

What are the number of gears and the gearbox type of 2008 Iveco Massif 4x4 3.0 HPT (176 Hp)?

6, manual transmission

Iveco Massif 4x4 3.0 HPT (176 Hp)

Iveco
- Iveco Massif 4x4
  - Massif 4x4
    - 3.0 HPT (176 Hp)
    - 3.0 HPT (146 Hp)

Compare

General information

Brand

Iveco

Model

Massif 4x4

Generation

Massif 4x4

Modification (Engine)

3.0 HPT (176 Hp)

Start of production

2008

End of production

2011

Powertrain Architecture

Internal Combustion engine

Body type

Off-road

Seats

Doors

Looking for Iveco Massif 4x4 on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

11.4 l/100 km 20.6 US mpg
24.8 UK mpg
8.8 km/l

Fuel consumption (economy) - extra urban

9.9 l/100 km 23.8 US mpg
28.5 UK mpg
10.1 km/l

Fuel consumption (economy) - combined

10.4 l/100 km 22.6 US mpg
27.2 UK mpg
9.6 km/l

Fuel Type

Diesel

Maximum speed

140 km/h 87 mph

Weight-to-power ratio

12.2 kg/Hp, 82.2 Hp/tonne

Weight-to-torque ratio

5.4 kg/Nm, 186.9 Nm/tonne

Engine specs

Power

176 Hp @ 3500 rpm.

Torque

400 Nm @ 2000 rpm. 295 lb.-ft. @ 2000 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

F1C HPI

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Engine oil capacity

7.6 l 8.03 US qt | 6.69 UK qt

Engine oil specification

Coolant

9 l 9.51 US qt | 7.92 UK qt

Volume and weights

Kerb Weight

2140 kg 4718 lbs.

Max. weight

3050 kg 6724 lbs.

Max load

910 kg 2006 lbs.

Fuel tank capacity

100 l 26.42 US gal | 22 UK gal

Dimensions

Length

4720 mm 185.83 in.

Width

1750 mm 68.9 in.

Height

2050 mm 80.71 in.

Wheelbase

2768 mm 108.98 in.

Drivetrain, brakes and suspension specs

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Leaf spring

Rear suspension

Leaf spring

Front brakes

Disc

Rear brakes
