Isuzu MU-X II (facelift 2024) 3.0 Ddi (190 Hp) Rev Tronic | Technical specs, data, fuel consumption, Dimensions

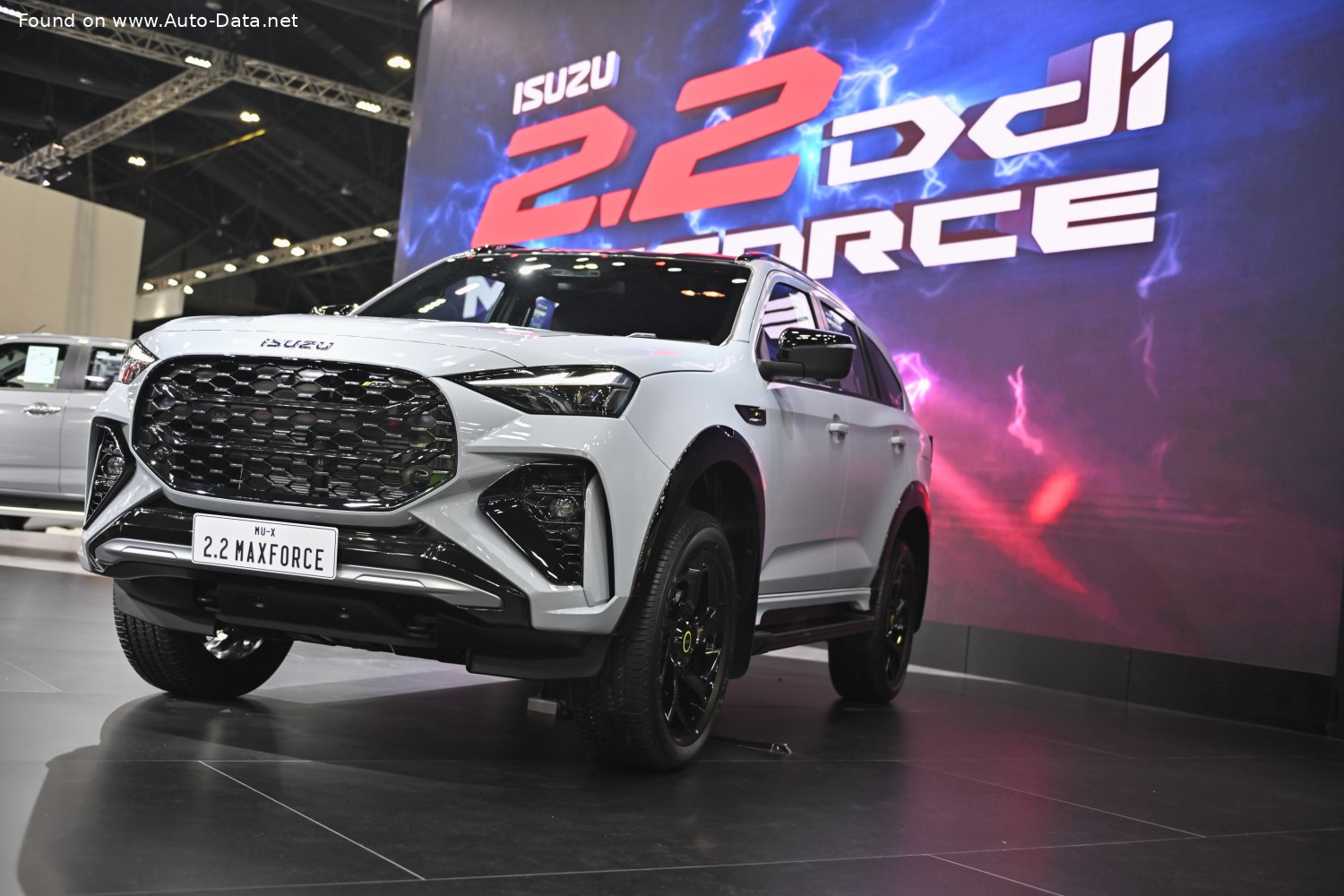

2025 Isuzu MU-X II (facelift 2024) - Photo 1

Key specs

Isuzu MU-X II (facelift 2024) 3.0 Ddi (190 Hp) Rev Tronic /SUV 2024 - /

What is the body type of Isuzu MU-X II (facelift 2024)?

SUV, 5 Doors, 7 Seats

What is the fuel consumption and economy of Isuzu MU-X II (facelift 2024) 3.0 Ddi (190 Hp) Rev Tronic?

7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l

How environmentally friendly is Isuzu MU-X 3.0 Ddi (190 Hp) Rev Tronic?

206 g/km CO₂
Euro 5

What is the power output of Isuzu MU-X SUV 2024 3.0 Ddi (190 Hp) Rev Tronic?

190 Hp, 450 Nm
332 lb.-ft.

What is the engine displacement of Isuzu MU-X SUV 2024 3.0 Ddi (190 Hp) Rev Tronic?

3.0 l
2999 cm³
183.01 cu. in.

What is the number of cylinders in 2024 Isuzu 3.0 Ddi (190 Hp) Rev Tronic?

4, Inline

What is the drivetrain of Isuzu MU-X II (facelift 2024) SUV 2024 3.0 Ddi (190 Hp) Rev Tronic?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 2024 Isuzu MU-X SUV?

4860 mm
191.34 in.

What is the width of 2024 Isuzu MU-X SUV?

1870 mm
73.62 in.

What is the kerb weight of 2024 Isuzu MU-X II (facelift 2024) 3.0 Ddi (190 Hp) Rev Tronic?

2050-2095 kg
4519 - 4619 lbs.

What is the maximum permissible mass of 2024 Isuzu MU-X II (facelift 2024) 3.0 Ddi (190 Hp) Rev Tronic?

2700 kg
5952 lbs.

What is the trunk (boot) capacity of 2024 Isuzu MU-X SUV?

311 - 2138 l
11 - 75.5 cu. ft.

What is the number of gears in What is the gearbox type of 2024 Isuzu MU-X II (facelift 2024) 3.0 Ddi (190 Hp) Rev Tronic?

6, automatic transmission Rev Tronic

Isuzu
- Isuzu MU-X
  - MU-X II (facelift 2024)
    - 3.0 Ddi (190 Hp) Rev Tronic
    - 3.0 Ddi (190 Hp) 4WD Rev Tronic
    - 2.2 Ddi (163 Hp) Rev Tronic
    - 1.9 Ddi (150 Hp) Rev Tronic
    - 1.9 Ddi (150 Hp) 4WD Rev Tronic

Compare

General information

Brand

Isuzu

Model

MU-X

Generation

MU-X II (facelift 2024)

Modification (Engine)

3.0 Ddi (190 Hp) Rev Tronic

Start of production

June, 2024 year

Powertrain Architecture

Internal Combustion engine

Body type

SUV

Seats

Doors

Looking for Isuzu MU-X on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

9.6 l/100 km 24.5 US mpg
29.4 UK mpg
10.4 km/l

Fuel consumption (economy) - extra urban

6.8 l/100 km 34.6 US mpg
41.5 UK mpg
14.7 km/l

Fuel consumption (economy) - combined

7.8 l/100 km 30.2 US mpg
36.2 UK mpg
12.8 km/l

CO₂ emissions

206 g/km

Fuel Type

Diesel

Emission standard

Euro 5

Weight-to-power ratio

10.8 kg/Hp, 92.7 Hp/tonne

Weight-to-torque ratio

4.6 kg/Nm, 219.5 Nm/tonne

Engine specs

Power

190 Hp @ 3600 rpm.

Power per litre

63.4 Hp/l

Torque

450 Nm @ 1600-2600 rpm. 332 lb.-ft. @ 1600-2600 rpm.

Engine layout

Front, Longitudinal

Engine Model/Code

4JJ3-TCX

Engine displacement

2999 cm³ 183.01 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

95.4 mm 3.76 in.

Piston Stroke

104.9 mm 4.13 in.

Compression ratio

16.3:1

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil specification

Engine systems

Particulate filter

Volume and weights

Kerb Weight

2050-2095 kg 4519 - 4619 lbs.

Max. weight

2700 kg 5952 lbs.

Max load

605-650 kg 1334 - 1433 lbs.

Trunk (boot) space - minimum

311 l 11 cu. ft.

Trunk (boot) space - maximum

2138 l 75.5 cu. ft.

Fuel tank capacity

80 l 21.13 US gal | 17.6 UK gal

Permitted trailer load with brakes (12%)

3500 kg 7716 lbs.

Permitted trailer load without brakes

750 kg 1653 lbs.

Permitted towbar download

350 kg 772 lbs.

Dimensions

Length

4860 mm 191.34 in.

Width

1870 mm 73.62 in.

Height

1815-1825 mm 71.46 - 71.85 in.

Wheelbase

2855 mm 112.4 in.

Front track

1570 mm 61.81 in.

Rear (Back) track

1570 mm 61.81 in.

Front overhang

905 mm 35.63 in.

Rear overhang

1100 mm 43.31 in.

Ride height (ground clearance)

230-235 mm 9.06 - 9.25 in.

Minimum turning circle (turning diameter)

11.6 m 38.06 ft.

Approach angle

28.6-29.2°

Departure angle

26.4-27.6°

Ramp-over (brakeover) angle

22.6-23.1°

Wading depth

800 mm 31.5 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission Rev Tronic

Front suspension

Double wishbone, Independent coil spring, Anti-roll bar

Rear suspension

Rigid axle suspension, Anti-roll bar, Coil spring

Front brakes

Ventilated discs, 320 mm

Rear brakes

Ventilated discs, 318 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

255/65 R17; 265/60 R18; 265/50 R20

Wheel rims size

7J x 17; 7.5J x 18; 7.5J x 20

Specs of Isuzu MU-X II (facelift 2024) 3.0 Ddi (190 Hp) Rev Tronic /2024, 2025, 2026/
