Hyundai Tiburon II (GK, facelift 2006) 2.7 V6 (172 Hp) Manual 6-speed | Technical specs, data, fuel consumption, Dimensions

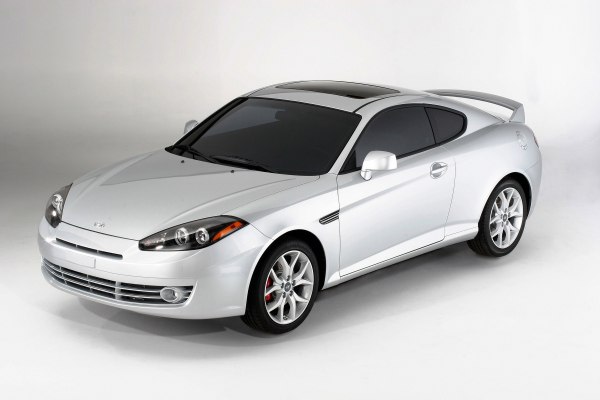

2007 Hyundai Tiburon II (GK, facelift 2006) - Photo 1

Key specs

Hyundai Tiburon II (GK, facelift 2006) 2.7 V6 (172 Hp) Manual 6-speed /Coupe 2006 - 2008/

What is the body type of Hyundai Tiburon II (GK, facelift 2006)?

Coupe, 3 Doors, 4 Seats

What is the power output of Hyundai Tiburon Coupe 2006 2.7 V6 (172 Hp) Manual 6-speed?

172 Hp, 245 Nm
181 lb.-ft.

What is the engine displacement of Hyundai Tiburon Coupe 2006 2.7 V6 (172 Hp) Manual 6-speed?

2.7 l
2656 cm³
162.08 cu. in.

What is the number of cylinders in 2006 Hyundai 2.7 V6 (172 Hp) Manual 6-speed?

6, V-engine

What is the drivetrain of Hyundai Tiburon II (GK, facelift 2006) Coupe 2006 2.7 V6 (172 Hp) Manual 6-speed?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2006 Hyundai Tiburon Coupe?

4395 mm
173.03 in.

What is the width of 2006 Hyundai Tiburon Coupe?

1760 mm
69.29 in.

What is the kerb weight of 2006 Hyundai Tiburon II (GK, facelift 2006) 2.7 V6 (172 Hp) Manual 6-speed?

1354 kg
2985 lbs.

What is the trunk (boot) capacity of 2006 Hyundai Tiburon Coupe?

419 l
14.8 cu. ft.

What are the number of gears and the gearbox type of 2006 Hyundai Tiburon II (GK, facelift 2006) 2.7 V6 (172 Hp) Manual 6-speed?

6, manual transmission

Hyundai
- Hyundai Tiburon
  - Tiburon II (GK, facelift 2006)
    - 2.7 V6 (172 Hp) Shiftronic
    - 2.7 V6 (172 Hp) Manual 6-speed
    - 2.7 V6 (172 Hp) Manual 5-speed
    - 2.0 (138 Hp) Shiftronic
    - 2.0 (138 Hp)

Compare

General information

Brand

Hyundai

Model

Tiburon

Generation

Tiburon II (GK, facelift 2006)

Modification (Engine)

2.7 V6 (172 Hp) Manual 6-speed

Start of production

November, 2006

End of production

2008

Powertrain Architecture

Internal Combustion engine

Body type

Coupe

Seats

Doors

Looking for Hyundai Tiburon on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)

13.1-14.7 l/100 km 18 - 16 US mpg
21.6 - 19.2 UK mpg
7.6 - 6.8 km/l

Fuel consumption (economy) - extra urban (EPA)

9-9.8 l/100 km 26.1 - 24 US mpg
31.4 - 28.8 UK mpg
11.1 - 10.2 km/l

Fuel Type

Petrol (Gasoline)

Weight-to-power ratio

7.9 kg/Hp, 127 Hp/tonne

Weight-to-torque ratio

5.5 kg/Nm, 180.9 Nm/tonne

Engine specs

Power

172 Hp @ 6000 rpm.

Power per litre

64.8 Hp/l

Torque

245 Nm @ 3800 rpm. 181 lb.-ft. @ 3800 rpm.

Engine layout

Front, Transverse

Engine Model/Code

Delta / G6BA

Engine displacement

2656 cm³ 162.08 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

86.7 mm 3.41 in.

Piston Stroke

75 mm 2.95 in.

Compression ratio

10:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC

Engine oil capacity

4.5 l 4.76 US qt | 3.96 UK qt

Engine oil specification

Coolant

8 l 8.45 US qt | 7.04 UK qt

Volume and weights

Kerb Weight

1354 kg 2985 lbs.

Trunk (boot) space - minimum

419 l 14.8 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4395 mm 173.03 in.

Width

1760 mm 69.29 in.

Height

1330 mm 52.36 in.

Wheelbase

2530 mm 99.61 in.

Front track

1500 mm 59.06 in.

Rear (Back) track

1500 mm 59.06 in.

Minimum turning circle (turning diameter)

10.9 m 35.76 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Hydraulic Steering

Tire size

215/45 R17

Wheel rim size

7J x 17

Specs of Hyundai Tiburon II (GK, facelift 2006) 2.7 V6 (172 Hp) Manual 6-speed /2006, 2007, 2008/
