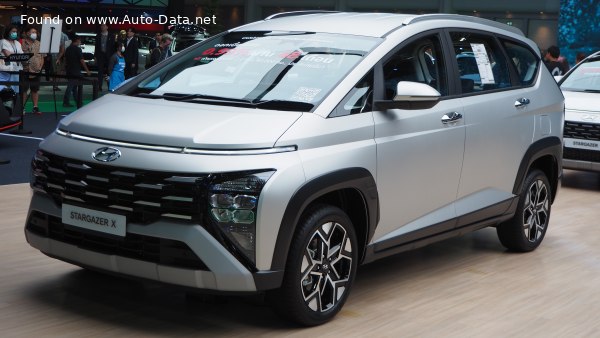

Hyundai Stargazer X 1.5 (115 Hp) IVT | Technical specs, data, fuel consumption, Dimensions

Key specs

Hyundai Stargazer X 1.5 (115 Hp) IVT /Crossover, MPV 2023 - 2025/

What is the body type of Hyundai Stargazer X?

Crossover, MPV, 5 Doors, 6-7 Seats

What is the fuel consumption and economy of Hyundai Stargazer X 1.5 (115 Hp) IVT?

6.3 l/100 km
37.3 US mpg
44.8 UK mpg
15.9 km/l

How environmentally friendly is Hyundai Stargazer 1.5 (115 Hp) IVT?

Euro 4

What is the power output of Hyundai Stargazer Crossover, MPV 2023 1.5 (115 Hp) IVT?

115 Hp, 144 Nm
106 lb.-ft.

What is the engine displacement of Hyundai Stargazer Crossover, MPV 2023 1.5 (115 Hp) IVT?

1.5 l
1497 cm³
91.35 cu. in.

What is the number of cylinders in 2023 Hyundai 1.5 (115 Hp) IVT?

4, Inline

What is the drivetrain of Hyundai Stargazer X Crossover, MPV 2023 1.5 (115 Hp) IVT?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2023 Hyundai Stargazer Crossover, MPV?

4495 mm
176.97 in.

What is the width of 2023 Hyundai Stargazer Crossover, MPV?

1815 mm
71.46 in.

What is the maximum permissible mass of 2023 Hyundai Stargazer X 1.5 (115 Hp) IVT?

1850 kg
4079 lbs.

What is the trunk (boot) capacity of 2023 Hyundai Stargazer Crossover, MPV?

200 - 1892 l
7.1 - 66.8 cu. ft.

What are the number of gears and the gearbox type of 2023 Hyundai Stargazer X 1.5 (115 Hp) IVT?

automatic transmission IVT

Hyundai
- Hyundai Stargazer
  - Stargazer X
    - 1.5 (115 Hp) IVT

Compare

General information

Brand

Hyundai

Model

Stargazer

Generation

Stargazer X

Modification (Engine)

1.5 (115 Hp) IVT

Start of production

August, 2023

End of production

July, 2025

Powertrain Architecture

Internal Combustion engine

Body type

Crossover, MPV

Seats

6-7

Doors

Looking for Hyundai Stargazer on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

7.8 l/100 km 30.2 US mpg
36.2 UK mpg
12.8 km/l

Fuel consumption (economy) - extra urban

5.4 l/100 km 43.6 US mpg
52.3 UK mpg
18.5 km/l

Fuel consumption (economy) - combined

6.3 l/100 km 37.3 US mpg
44.8 UK mpg
15.9 km/l

Fuel Type

Petrol (Gasoline)

Emission standard

Euro 4

Engine specs

Power

115 Hp @ 6300 rpm.

Power per litre

76.8 Hp/l

Torque

144 Nm @ 4500 rpm. 106 lb.-ft. @ 4500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

Smartstream / G4FL

Engine displacement

1497 cm³ 91.35 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

75.6 mm 2.98 in.

Piston Stroke

83.4 mm 3.28 in.

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, D-CVVT

Engine oil capacity

3.8 l 4.02 US qt | 3.34 UK qt

Engine oil specification

Coolant

5.2 l 5.49 US qt | 4.58 UK qt

Volume and weights

Max. weight

1850 kg 4079 lbs.

Trunk (boot) space - minimum

200 l 7.1 cu. ft.

Trunk (boot) space - maximum

1892 l 66.8 cu. ft.

Fuel tank capacity

40 l 10.57 US gal | 8.8 UK gal

Dimensions

Length

4495 mm 176.97 in.

Width

1815 mm 71.46 in.

Height

1710 mm 67.32 in.

Wheelbase

2780 mm 109.45 in.

Front track

1559 mm 61.38 in.

Rear (Back) track

1572 mm 61.89 in.

Ride height (ground clearance)

200 mm 7.87 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

automatic transmission IVT

Front suspension

Independent, McPherson type

Rear suspension

Torsion bar

Front brakes

Disc

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

205/50 R17

Wheel rim size

6.5J x 17

Specs of Hyundai Stargazer X 1.5 (115 Hp) IVT /2023, 2024, 2025/
