Hyundai Palisade I (facelift 2022) R 2.2 CRDi (200 Hp) AWD Automatic | Technical Specs, Fuel consumption, Dimensions

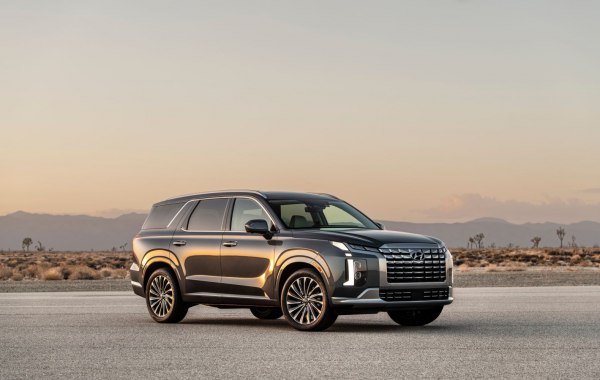

2023 Hyundai Palisade I (facelift 2022) - Photo 1

Key specs

Hyundai Palisade I (facelift 2022) R 2.2 CRDi (200 Hp) AWD Automatic /SUV, Crossover 2022 - 2025/

What is the body type of Hyundai Palisade I (facelift 2022)?

SUV, Crossover, 5 Doors, 7 Seats

What is the power output of Hyundai Palisade SUV, Crossover 2022 R 2.2 CRDi (200 Hp) AWD Automatic?

200 Hp, 440 Nm
325 lb.-ft.

What is the engine displacement of Hyundai Palisade SUV, Crossover 2022 R 2.2 CRDi (200 Hp) AWD Automatic?

2.2 l
2199 cm³
134.19 cu. in.

What is the number of cylinders in 2022 Hyundai R 2.2 CRDi (200 Hp) AWD Automatic?

4, Inline

What is the drivetrain of Hyundai Palisade I (facelift 2022) SUV, Crossover 2022 R 2.2 CRDi (200 Hp) AWD Automatic?

All wheel drive (4x4). ICE. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.

What is the length of 2022 Hyundai Palisade SUV, Crossover?

4995 mm
196.65 in.

What is the width of 2022 Hyundai Palisade SUV, Crossover?

1975 mm
77.76 in.

What is the trunk (boot) capacity of 2022 Hyundai Palisade SUV, Crossover?

311 - 704 l
11 - 24.9 cu. ft.

What are the number of gears and the gearbox type of 2022 Hyundai Palisade I (facelift 2022) R 2.2 CRDi (200 Hp) AWD Automatic?

8, automatic transmission

Hyundai Palisade I (facelift 2022) R 2.2 CRDi (200 Hp) AWD Automatic

Hyundai
- Hyundai Palisade
  - Palisade I (facelift 2022)
    - R 2.2 CRDi (200 Hp) AWD Automatic
    - R 2.2 CRDi (200 Hp) Automatic
    - 3.8 GDI V6 (291 Hp) HTRAC AWD Automatic
    - 3.8 GDI V6 (291 Hp) Automatic

Compare

General information

Brand

Hyundai

Model

Palisade

Generation

Palisade I (facelift 2022)

Modification (Engine)

R 2.2 CRDi (200 Hp) AWD Automatic

Start of production

2022

End of production

April, 2025

Powertrain Architecture

Internal Combustion engine

Body type

SUV (Sport Utility Vehicle), Crossover

Seats

Doors

Looking for Hyundai Palisade on the used-car market?

Check its history →

Performance specs

Fuel Type

Diesel

Engine specs

Power

200 Hp @ 3800 rpm.

Power per litre

91 Hp/l

Torque

440 Nm @ 1750-2750 rpm. 325 lb.-ft. @ 1750-2750 rpm.

Engine layout

Front, Transverse

Engine Model/Code

R II / D4HB

Engine displacement

2199 cm³ 134.19 cu. in.

Number of cylinders

Engine configuration

Inline

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Engine oil capacity

6.5 l 6.87 US qt | 5.72 UK qt

Engine oil specification

Coolant

8.8 l 9.3 US qt | 7.74 UK qt

Engine systems

Start & Stop System

Volume and weights

Trunk (boot) space - minimum

311 l 11 cu. ft.

Trunk (boot) space - maximum

704 l 24.9 cu. ft.

Dimensions

Length

4995 mm 196.65 in.

Width

1975 mm 77.76 in.

Height

1750 mm 68.9 in.

Wheelbase

2900 mm 114.17 in.

Front track

1708 mm 67.24 in.

Rear (Back) track

1716 mm 67.56 in.

Ride height (ground clearance)

203 mm 7.99 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

8 gears, automatic transmission

Front suspension

Independent, McPherson type

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs

Rear brakes

Ventilated discs

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

245/60 R18; 245/50 R20

Wheel rim size

7.5J x 18; 7.5J x 20
