Specs of Hyundai IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV /2022, 2023, 2024, 2025, 2026/

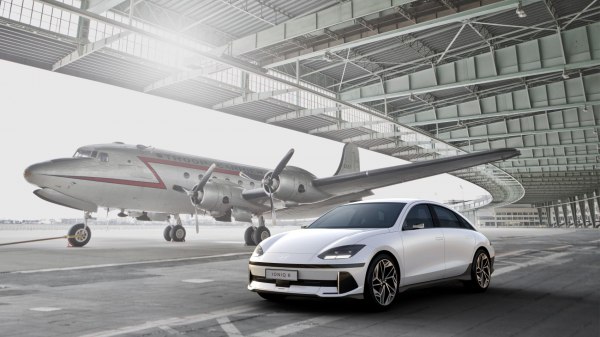

2023 Hyundai IONIQ 6 - Photo 1
Hyundai IONIQ 6 - Photo 2Hyundai IONIQ 6 - Photo 3Hyundai IONIQ 6 - Photo 4Hyundai IONIQ 6 - Photo 5Hyundai IONIQ 6 - Photo 6Hyundai IONIQ 6 - Photo 7Hyundai IONIQ 6 - Photo 8Hyundai IONIQ 6 - Photo 9Hyundai IONIQ 6 - Photo 10

Key specs:
Hyundai IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV
/Sedan, Fastback 2022 - 2026/

What is the body type of Hyundai IONIQ 6?Sedan, Fastback, 4 Doors, 5 Seats
What is the all-electric range of LongRange 77.4 kWh (229 Hp) BEV?545-614 km
338.65 - 381.52 mi
What is the electricity consumption of Hyundai IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV?14.3-16 kWh/100 km
23.01 - 25.75 kWh/100 mi
146 - 131 MPGe
7 - 6.3 km/kWh
4.3 - 3.9 mi/kWh
How fast is 2022 IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV?185 km/h | 114.95 mph
0-100 km/h: 7.4 sec
0-60 mph: 7 sec
What is the power output of Hyundai IONIQ 6 Sedan, Fastback 2022 LongRange 77.4 kWh (229 Hp) BEV?229 Hp, 350 Nm
258.15 lb.-ft.
What is the drivetrain of Hyundai IONIQ 6 Sedan, Fastback 2022 LongRange 77.4 kWh (229 Hp) BEV?Rear wheel drive. BEV (Electric Vehicle). One electric motor drives the rear wheels.
What is the length of 2022 Hyundai IONIQ 6 Sedan, Fastback?4855 mm
191.14 in.
What is the width of 2022 Hyundai IONIQ 6 Sedan, Fastback?1880 mm
74.02 in.
What is the kerb weight of 2022 Hyundai IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV?1930-1950 kg
4254.92 - 4299.01 lbs.
What is the maximum permissible mass of 2022 Hyundai IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV?2410 kg
5313.14 lbs.
What is the trunk (boot) capacity of 2022 Hyundai IONIQ 6 Sedan, Fastback?401 l
14.16 cu. ft.
What is the number of gears in What is the gearbox type of 2022 Hyundai IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV?1, automatic transmission

Hyundai IONIQ 6 LongRange 77.4 kWh (229 Hp) BEV - Full specifications

General information

BrandHyundai
Model IONIQ 6
Generation IONIQ 6
Modification (Engine) LongRange 77.4 kWh (229 Hp) BEV
Start of production July, 2022 year
End of production January, 2026 year
Powertrain Architecture BEV (Electric Vehicle)
Body typeSedan, Fastback
Seats 5
Doors 4

Performance specs

Fuel Type Electricity
Acceleration 0 - 100 km/h7.4 sec
Acceleration 0 - 62 mph7.4 sec
Acceleration 0 - 60 mph (Calculated by Auto-Data.net) 7 sec
Maximum speed 185 km/h 114.95 mph
Weight-to-power ratio 8.4 kg/Hp, 118.7 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 181.3 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity 77.4 kWh
Battery voltage 697 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery location Below the floor
Electric range (WLTP) 545-614 km 338.65 - 381.52 mi
Electric range 452-524 km 280.86 - 325.6 mi
Average Energy consumption (WLTP) 14.3-16 kWh/100 km 23.01 - 25.75 kWh/100 mi
146 - 131 MPGe
7 - 6.3 km/kWh
4.3 - 3.9 mi/kWh
Average Energy consumption 16.6-19.6 kWh/100 km 26.72 - 31.54 kWh/100 mi
126 - 107 MPGe
6 - 5.1 km/kWh
3.7 - 3.2 mi/kWh
Charging portsLog in to see.Log in to see.
Electric motor 1
Electric motor power 229 Hp
Electric motor Torque 350 Nm 258.15 lb.-ft.
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 229 Hp
System torque 350 Nm 258.15 lb.-ft.

Space, Volume and weights

Kerb Weight 1930-1950 kg 4254.92 - 4299.01 lbs.
Max. weight 2410 kg 5313.14 lbs.
Max load 460-480 kg 1014.13 - 1058.22 lbs.
Trunk (boot) space - minimum 401 l 14.16 cu. ft.
Max. roof load 80 kg 176.37 lbs.
Permitted trailer load with brakes (12%) 1500 kg 3306.93 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Permitted towbar download 100 kg 220.46 lbs.

Dimensions

Length 4855 mm 191.14 in.
Width 1880 mm 74.02 in.
Height 1495 mm 58.86 in.
Wheelbase 2950 mm 116.14 in.
Front track 1630-1635 mm 64.17 - 64.37 in.
Rear (Back) track 1639-1644 mm 64.53 - 64.72 in.
Front overhang 850 mm 33.46 in.
Rear overhang 1055 mm 41.54 in.
Ride height (ground clearance) 141 mm 5.55 in.
Drag coefficient (Cd) 0.21

Drivetrain, brakes and suspension specs

Drivetrain Architecture One electric motor drives the rear wheels.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent, McPherson type with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with anti-roll bar
Front brakesVentilated discs
Rear brakesVentilated discs
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R18; 245/40 R20
Wheel rims size7.5J x 18; 8.5J x 20
