Specs of Hyundai i30 II 1.8 (150 Hp) /2011, 2012, 2013, 2014, 2015/

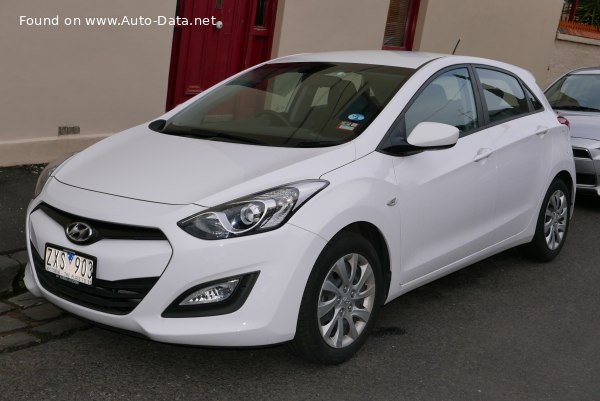

2012 Hyundai i30 II - Photo 1
Hyundai i30 II - Photo 2Hyundai i30 II - Photo 3Hyundai i30 II - Photo 4Hyundai i30 II - Photo 5Hyundai i30 II - Photo 6Hyundai i30 II - Photo 7Hyundai i30 II - Photo 8Hyundai i30 II - Photo 9Hyundai i30 II - Photo 10

Key specs

Hyundai i30 II 1.8 (150 Hp) /Hatchback 2011 - 2015/

What is the body type of Hyundai i30 II?
Hatchback, 5 Doors, 5 Seats
What is the fuel consumption and economy of Hyundai i30 II 1.8 (150 Hp)?
6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
How environmentally friendly is Hyundai i30 1.8 (150 Hp)?
156 g/km CO2
What is the power output of Hyundai i30 Hatchback 2011 1.8 (150 Hp)?
150 Hp, 178 Nm
131 lb.-ft.
What is the engine displacement of Hyundai i30 Hatchback 2011 1.8 (150 Hp)?
1.8 l
1797 cm3
109.66 cu. in.
What is the number of cylinders in 2011 Hyundai 1.8 (150 Hp)?
4, Inline
What is the drivetrain of Hyundai i30 II Hatchback 2011 1.8 (150 Hp)?
Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.
What is the length of 2011 Hyundai i30 Hatchback?
4300 mm
169.29 in.
What is the width of 2011 Hyundai i30 Hatchback?
1780 mm
70.08 in.
What is the kerb weight of 2011 Hyundai i30 II 1.8 (150 Hp)?
1225-1329 kg
2701 - 2930 lbs.
What is the maximum permissible mass of 2011 Hyundai i30 II 1.8 (150 Hp)?
1840 kg
4057 lbs.
What is the trunk (boot) capacity of 2011 Hyundai i30 Hatchback?
378 - 1316 l
13.3 - 46.5 cu. ft.
What are the number of gears and the gearbox type of 2011 Hyundai i30 II 1.8 (150 Hp)?
6, manual transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPolestarPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
Hyundai
Model
i30
Generation
i30 II
Modification (Engine)
1.8 (150 Hp)
Start of production
2011
End of production
2015
Powertrain Architecture
Internal Combustion engine
Body type
Hatchback
Seats
5
Doors
5
Looking for Hyundai i30 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
8.9 l/100 km 26.4 US mpg
31.7 UK mpg
11.2 km/l
Fuel consumption (economy) - extra urban
5.1 l/100 km 46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) - combined
6.5 l/100 km 36.2 US mpg
43.5 UK mpg
15.4 km/l
CO2 emissions
156 g/km
Fuel Type
Petrol (Gasoline)
Weight-to-power ratio
8.2 kg/Hp, 122.4 Hp/tonne
Weight-to-torque ratio
6.9 kg/Nm, 145.3 Nm/tonne

Engine specs

Power
150 Hp @ 6500 rpm.
Power per litre
83.5 Hp/l
Torque
178 Nm @ 4700 rpm. 131 lb.-ft. @ 4700 rpm.
Engine layout
Front, Transverse
Engine Model/Code
Nu / G4NB
Engine displacement
1797 cm3 109.66 cu. in.
Number of cylinders
4
Engine configuration
Inline
Cylinder Bore
81 mm 3.19 in.
Piston Stroke
87.2 mm 3.43 in.
Compression ratio
10.3:1
Number of valves per cylinder
4
Fuel injection system
Multi-port manifold injection
Engine aspiration
Naturally aspirated engine
Valvetrain
DOHC D-CVVT
Engine oil capacity
4 l 4.23 US qt | 3.52 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
5.9 l 6.23 US qt | 5.19 UK qt

Volume and weights

Kerb Weight
1225-1329 kg 2701 - 2930 lbs.
Max. weight
1840 kg 4057 lbs.
Max load
511-615 kg 1127 - 1356 lbs.
Trunk (boot) space - minimum
378 l 13.3 cu. ft.
Trunk (boot) space - maximum
1316 l 46.5 cu. ft.
Fuel tank capacity
53 l 14 US gal | 11.66 UK gal

Dimensions

Length
4300 mm 169.29 in.
Width
1780 mm 70.08 in.
Height
1470 mm 57.87 in.
Wheelbase
2650 mm 104.33 in.
Front track
1549-1555 mm 60.98 - 61.22 in.
Rear (Back) track
1562-1568 mm 61.5 - 61.73 in.
Ride height (ground clearance)
140 mm 5.51 in.
Minimum turning circle (turning diameter)
10.6 m 34.78 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel
Front wheel drive
Number of gears and type of gearbox
6 gears, manual transmission
Front suspension
Independent, McPherson type
Rear suspension
Torsion bar
Front brakes
Ventilated discs, 280 mm
Rear brakes
Disc, 262 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Tire size
205/55 R16; 225/45 R17
Wheel rim size
6.5J x 16; 7.0J x 17
