Hyundai Creta I 1.6 CRDi (128 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

Key specs

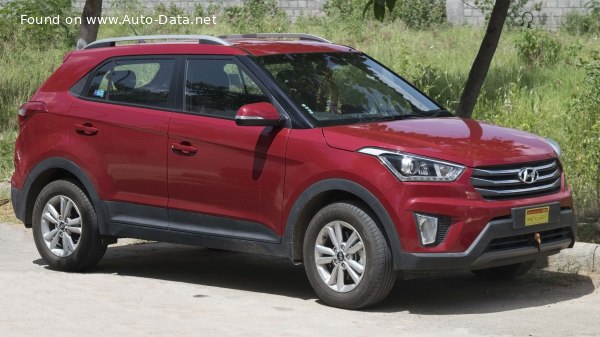

Hyundai Creta I 1.6 CRDi (128 Hp) Automatic /SUV 2015 - 2019/

What is the body type of Hyundai Creta I?

SUV, 5 Doors, 5 Seats

How environmentally friendly is Hyundai Creta 1.6 CRDi (128 Hp) Automatic?

Euro 6

What is the power output of Hyundai Creta SUV 2015 1.6 CRDi (128 Hp) Automatic?

128 Hp, 260 Nm
192 lb.-ft.

What is the engine displacement of Hyundai Creta SUV 2015 1.6 CRDi (128 Hp) Automatic?

1.6 l
1582 cm³
96.54 cu. in.

What is the number of cylinders in 2015 Hyundai 1.6 CRDi (128 Hp) Automatic?

4, Inline

What is the drivetrain of Hyundai Creta I SUV 2015 1.6 CRDi (128 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2015 Hyundai Creta SUV?

4270 mm
168.11 in.

What is the width of 2015 Hyundai Creta SUV?

1780 mm
70.08 in.

What is the trunk (boot) capacity of 2015 Hyundai Creta SUV?

402 l
14.2 cu. ft.

What is the number of gears in What is the gearbox type of 2015 Hyundai Creta I 1.6 CRDi (128 Hp) Automatic?

6, automatic transmission

Hyundai
- Hyundai Creta
  - Creta I
    - 2.0 (150 Hp) Automatic
    - 2.0 (150 Hp) 4WD Automatic
    - 1.6 CRDi (128 Hp) Automatic
    - 1.6 CRDi (128 Hp)
    - 1.6 (123 Hp) Automatic
    - 1.6 (123 Hp)
    - 1.4 CRDi (90 Hp)

Compare

General information

Brand

Hyundai

Model

Creta

Generation

Creta I

Modification (Engine)

1.6 CRDi (128 Hp) Automatic

Start of production

2015 year

End of production

2019 year

Powertrain Architecture

Internal Combustion engine

Body type

SUV

Seats

Doors

Looking for Hyundai Creta on the used-car market?

Check its history →

Performance specs

Fuel Type

Diesel

Emission standard

Euro 6

Engine specs

Power

128 Hp @ 4000 rpm.

Power per litre

80.9 Hp/l

Torque

260 Nm @ 1900-2750 rpm. 192 lb.-ft. @ 1900-2750 rpm.

Engine layout

Front, Transverse

Engine Model/Code

U II / D4FB

Engine displacement

1582 cm³ 96.54 cu. in.

Number of cylinders

Engine configuration

Inline

Number of valves per cylinder

Fuel injection system

Diesel Commonrail

Engine aspiration

Turbocharger, Intercooler

Valvetrain

DOHC

Engine oil capacity

5.3 l 5.6 US qt | 4.66 UK qt

Engine oil specification

Coolant

7 l 7.4 US qt | 6.16 UK qt

Engine systems

Particulate filter

Volume and weights

Trunk (boot) space - minimum

402 l 14.2 cu. ft.

Fuel tank capacity

55 l 14.53 US gal | 12.1 UK gal

Dimensions

Length

4270 mm 168.11 in.

Width

1780 mm 70.08 in.

Height

1630 mm 64.17 in.

Wheelbase

2590 mm 101.97 in.

Front track

1557 mm 61.3 in.

Rear (Back) track

1570 mm 61.81 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Semi-independent, coil spring

Front brakes

Disc

Rear brakes

Drum

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

215/60 R17

Wheel rims size

Specs of Hyundai Creta I 1.6 CRDi (128 Hp) Automatic /2015, 2016, 2017, 2018, 2019/
