Honda S800 0.8 (70 Hp) | Technical specs, data, fuel consumption, Dimensions

Key specs

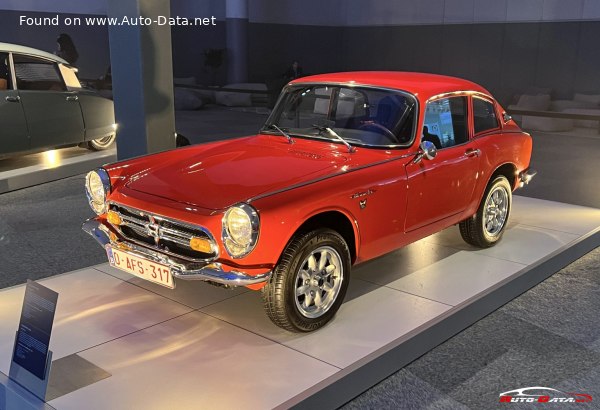

Honda S800 0.8 (70 Hp) /Coupe 1966 - 1970/

What is the body type of Honda S800?

Coupe, 3 Doors, 2 Seats

What is the fuel consumption and economy of Honda S800 0.8 (70 Hp)?

9 l/100 km
26.1 US mpg
31.4 UK mpg
11.1 km/l

How fast is 1966 S800 0.8 (70 Hp)?

160 km/h | 99 mph
0-100 km/h: 12.5 sec
0-60 mph: 11.9 sec

What is the power output of Honda S800 Coupe 1966 0.8 (70 Hp)?

70 Hp, 66 Nm
49 lb.-ft.

What is the engine displacement of Honda S800 Coupe 1966 0.8 (70 Hp)?

0.8 l
791 cm³
48.27 cu. in.

What is the number of cylinders in 1966 Honda 0.8 (70 Hp)?

4, Inline

What is the drivetrain of Honda S800 Coupe 1966 0.8 (70 Hp)?

Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

What is the length of 1966 Honda S800 Coupe?

3335 mm
131.3 in.

What is the width of 1966 Honda S800 Coupe?

1400 mm
55.12 in.

What is the kerb weight of 1966 Honda S800 0.8 (70 Hp)?

755 kg
1664 lbs.

What is the number of gears in What is the gearbox type of 1966 Honda S800 0.8 (70 Hp)?

4, manual transmission

Honda
- Honda S800
  - S800
    - 0.8 (70 Hp)

Compare

General information

Brand

Honda

Model

S800

Generation

S800

Modification (Engine)

0.8 (70 Hp)

Start of production

1966 year

End of production

1970 year

Powertrain Architecture

Internal Combustion engine

Body type

Coupe

Seats

Doors

Performance specs

Fuel consumption (economy) - combined

9 l/100 km 26.1 US mpg
31.4 UK mpg
11.1 km/l

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

12.5 sec

Acceleration 0 - 62 mph

12.5 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

11.9 sec

Maximum speed

160 km/h 99 mph

Weight-to-power ratio

10.8 kg/Hp, 92.7 Hp/tonne

Weight-to-torque ratio

11.4 kg/Nm, 87.4 Nm/tonne

Engine specs

Power

70 Hp @ 8500 rpm.

Power per litre

88.5 Hp/l

Torque

66 Nm @ 6000 rpm. 49 lb.-ft. @ 6000 rpm.

Engine layout

Front, Longitudinal

Engine displacement

791 cm³ 48.27 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

60 mm 2.36 in.

Piston Stroke

70 mm 2.76 in.

Compression ratio

9.2:1

Fuel injection system

Carburettor

Engine aspiration

Naturally aspirated engine

Engine oil capacity

3.7 l 3.91 US qt | 3.26 UK qt

Volume and weights

Kerb Weight

755 kg 1664 lbs.

Fuel tank capacity

30 l 7.93 US gal | 6.6 UK gal

Dimensions

Length

3335 mm 131.3 in.

Width

1400 mm 55.12 in.

Height

1215 mm 47.83 in.

Wheelbase

2000 mm 78.74 in.

Ride height (ground clearance)

160 mm 6.3 in.

Minimum turning circle (turning diameter)

8.8 m 28.87 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the rear wheels of the vehicle.

Drive wheel

Rear wheel drive

Number of gears and type of gearbox

4 gears, manual transmission

Front suspension

Independent torsion bar, double wishbone

Rear suspension

Rigid axle suspension, Coil spring

Front brakes

Disc

Rear brakes

Drum

Steering type

Steering rack and pinion

Specs of Honda S800 0.8 (70 Hp) /1966, 1967, 1968, 1969, 1970/
