Honda Ridgeline I (facelift 2009) 3.5 V6 24V (250 Hp) 4WD Automatic | Technical specs, data, fuel consumption, Dimensions

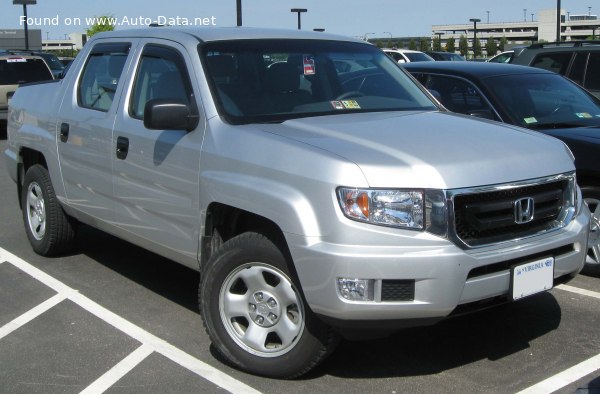

2009 Honda Ridgeline I (facelift 2009) - Photo 1

Key specs

Honda Ridgeline I (facelift 2009) 3.5 V6 24V (250 Hp) 4WD Automatic /Pick-up 2009 - 2014/

What is the body type of Honda Ridgeline I (facelift 2009)?

Pick-up, 4 Doors, 5 Seats

What is the fuel consumption and economy of Honda Ridgeline I (facelift 2009) 3.5 V6 24V (250 Hp) 4WD Automatic?

13.8 l/100 km
17 US mpg
20.5 UK mpg
7.2 km/l

How environmentally friendly is Honda Ridgeline 3.5 V6 24V (250 Hp) 4WD Automatic?

ULEV-2

What is the power output of Honda Ridgeline Pick-up 2009 3.5 V6 24V (250 Hp) 4WD Automatic?

250 Hp, 335 Nm
247 lb.-ft.

What is the engine displacement of Honda Ridgeline Pick-up 2009 3.5 V6 24V (250 Hp) 4WD Automatic?

3.5 l
3471 cm³
211.81 cu. in.

What is the number of cylinders in 2009 Honda 3.5 V6 24V (250 Hp) 4WD Automatic?

6, V-engine

What is the drivetrain of Honda Ridgeline I (facelift 2009) Pick-up 2009 3.5 V6 24V (250 Hp) 4WD Automatic?

All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

What is the length of 2009 Honda Ridgeline Pick-up?

5258 mm
207.01 in.

What is the width of 2009 Honda Ridgeline Pick-up?

1976 mm
77.8 in.

What is the kerb weight of 2009 Honda Ridgeline I (facelift 2009) 3.5 V6 24V (250 Hp) 4WD Automatic?

2043 kg
4504 lbs.

What is the maximum permissible mass of 2009 Honda Ridgeline I (facelift 2009) 3.5 V6 24V (250 Hp) 4WD Automatic?

2744 kg
6049 lbs.

What is the trunk (boot) capacity of 2009 Honda Ridgeline Pick-up?

241 l
8.5 cu. ft.

What are the number of gears and the gearbox type of 2009 Honda Ridgeline I (facelift 2009) 3.5 V6 24V (250 Hp) 4WD Automatic?

5, automatic transmission

Honda
- Honda Ridgeline
  - Ridgeline I (facelift 2009)
    - 3.5 V6 24V (250 Hp) 4WD Automatic

Compare

General information

Brand

Honda

Model

Ridgeline

Generation

Ridgeline I (facelift 2009)

Modification (Engine)

3.5 V6 24V (250 Hp) 4WD Automatic

Start of production

2009

End of production

2014

Powertrain Architecture

Internal Combustion engine

Body type

Pick-up

Seats

Doors

Looking for Honda Ridgeline on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

15.7 l/100 km 15 US mpg
18 UK mpg
6.4 km/l

Fuel consumption (economy) - extra urban

11.8 l/100 km 19.9 US mpg
23.9 UK mpg
8.5 km/l

Fuel consumption (economy) - combined

13.8 l/100 km 17 US mpg
20.5 UK mpg
7.2 km/l

Fuel Type

Petrol (Gasoline)

Emission standard

ULEV-2

Weight-to-power ratio

8.2 kg/Hp, 122.4 Hp/tonne

Weight-to-torque ratio

6.1 kg/Nm, 164 Nm/tonne

Engine specs

Power

250 Hp @ 5700 rpm.

Power per litre

72 Hp/l

Torque

335 Nm @ 4300 rpm. 247 lb.-ft. @ 4300 rpm.

Maximum engine speed

6300 rpm.

Engine layout

Front, Transverse

Engine Model/Code

J35Z5

Engine displacement

3471 cm³ 211.81 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

89 mm 3.5 in.

Piston Stroke

93 mm 3.66 in.

Compression ratio

10:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC, VTEC

Engine oil capacity

5.3 l 5.6 US qt | 4.66 UK qt

Engine oil specification

Coolant

8.1 l 8.56 US qt | 7.13 UK qt

Volume and weights

Kerb Weight

2043 kg 4504 lbs.

Max. weight

2744 kg 6049 lbs.

Max load

701 kg 1545 lbs.

Trunk (boot) space - minimum

241 l 8.5 cu. ft.

Fuel tank capacity

83.3 l 22.01 US gal | 18.32 UK gal

Dimensions

Length

5258 mm 207.01 in.

Width

1976 mm 77.8 in.

Height

1786 mm 70.31 in.

Wheelbase

3099 mm 122.01 in.

Front track

1704 mm 67.09 in.

Rear (Back) track

1699 mm 66.89 in.

Ride height (ground clearance)

208 mm 8.19 in.

Approach angle

24.5°

Departure angle

22°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

5 gears, automatic transmission

Front suspension

Independent, McPherson type, Anti-roll bar

Rear suspension

Independent multi-link suspension

Front brakes

Ventilated discs, 320.04 mm

Rear brakes

Disc, 332.74 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

245/65 R17; 245/60 R18

Specs of Honda Ridgeline I (facelift 2009) 3.5 V6 24V (250 Hp) 4WD Automatic /2009, 2010, 2011, 2012, 2013, 2014/
