Honda Pilot IV (facelift 2025) 3.5 V6 (285 Hp) i-VTM4 AWD Automatic | Technical specs, data, fuel consumption, Dimensions

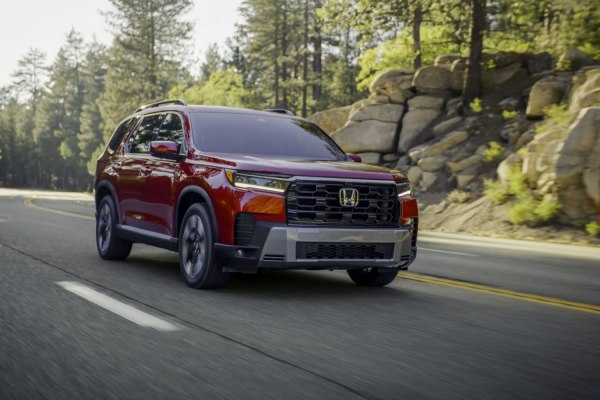

2026 Honda Pilot IV (facelift 2025) - Photo 1

Key specs

Honda Pilot IV (facelift 2025) 3.5 V6 (285 Hp) i-VTM4 AWD Automatic /SUV, Crossover 2025 - /

What is the body type of Honda Pilot IV (facelift 2025)?

SUV, Crossover, 5 Doors, 8 Seats

What is the fuel consumption and economy of Honda Pilot IV (facelift 2025) 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

11.2 l/100 km
21 US mpg
25.2 UK mpg
8.9 km/l

How environmentally friendly is Honda Pilot 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

LEV4-SULEV30

What is the power output of Honda Pilot SUV, Crossover 2025 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

285 Hp, 355 Nm
262 lb.-ft.

What is the engine displacement of Honda Pilot SUV, Crossover 2025 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

3.5 l
3471 cm³
211.81 cu. in.

What is the number of cylinders in 2025 Honda 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

6, V-engine

What is the drivetrain of Honda Pilot IV (facelift 2025) SUV, Crossover 2025 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.

What is the length of 2025 Honda Pilot SUV, Crossover?

5083 mm
200.12 in.

What is the width of 2025 Honda Pilot SUV, Crossover?

1994 mm
78.5 in.

What is the kerb weight of 2025 Honda Pilot IV (facelift 2025) 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

2047-2122 kg
4513 - 4678 lbs.

What is the trunk (boot) capacity of 2025 Honda Pilot SUV, Crossover?

527 - 3183 l
18.6 - 112.4 cu. ft.

What is the number of gears in What is the gearbox type of 2025 Honda Pilot IV (facelift 2025) 3.5 V6 (285 Hp) i-VTM4 AWD Automatic?

10, automatic transmission

Honda
- Honda Pilot
  - Pilot IV (facelift 2025)
    - TrailSport 3.5 V6 (285 Hp) i-VTM4 AWD Automatic
    - 3.5 V6 (285 Hp) i-VTM4 AWD Automatic
    - 3.5 V6 (285 Hp) Automatic

Compare

General information

Brand

Honda

Model

Pilot

Generation

Pilot IV (facelift 2025)

Modification (Engine)

3.5 V6 (285 Hp) i-VTM4 AWD Automatic

Start of production

December, 2025 year

Powertrain Architecture

Internal Combustion engine

Body type

SUV, Crossover

Seats

Doors

Looking for Honda Pilot on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban (EPA)

12.4 l/100 km 19 US mpg
22.8 UK mpg
8.1 km/l

Fuel consumption (economy) - extra urban (EPA)

9.4 l/100 km 25 US mpg
30.1 UK mpg
10.6 km/l

Fuel consumption (economy) - combined (EPA)

11.2 l/100 km 21 US mpg
25.2 UK mpg
8.9 km/l

Fuel Type

Petrol (Gasoline)

Emission standard

LEV4-SULEV30

Weight-to-power ratio

7.2 kg/Hp, 139.2 Hp/tonne

Weight-to-torque ratio

5.8 kg/Nm, 173.4 Nm/tonne

Engine specs

Power

285 Hp @ 6100 rpm.

Power per litre

82.1 Hp/l

Torque

355 Nm @ 5000 rpm. 262 lb.-ft. @ 5000 rpm.

Maximum engine speed

6500 rpm.

Engine layout

Front, Transverse

Engine Model/Code

J35Y8

Engine displacement

3471 cm³ 211.81 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

89 mm 3.5 in.

Piston Stroke

93 mm 3.66 in.

Compression ratio

11.5:1

Number of valves per cylinder

Fuel injection system

Direct injection

Engine aspiration

Naturally aspirated engine

Valvetrain

DOHC, Dual VTC

Engine oil capacity

5.5 l 5.81 US qt | 4.84 UK qt

Engine oil specification

Coolant

7.67 l 8.1 US qt | 6.75 UK qt

Engine systems

Start & Stop System
Cylinder deactivation system

Volume and weights

Kerb Weight

2047-2122 kg 4513 - 4678 lbs.

Trunk (boot) space - minimum

527 l 18.6 cu. ft.

Trunk (boot) space - maximum

3183 l 112.4 cu. ft.

Fuel tank capacity

70 l 18.49 US gal | 15.4 UK gal

Permitted trailer load with brakes (12%)

2268 kg 5000 lbs.

Dimensions

Length

5083 mm 200.12 in.

Width

1994 mm 78.5 in.

Height

1801-1803 mm 70.91 - 70.98 in.

Wheelbase

2891 mm 113.82 in.

Front track

1715 mm 67.52 in.

Rear (Back) track

1722 mm 67.8 in.

Front overhang

1020 mm 40.16 in.

Rear overhang

1171 mm 46.1 in.

Ride height (ground clearance)

185 mm 7.28 in.

Minimum turning circle (turning diameter)

11.5 m 37.73 ft.

Approach angle

18.3°

Departure angle

20.3-21.1°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.

Drive wheel

All wheel drive (4x4)

Number of gears and type of gearbox

10 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Independent multi-link spring suspension with anti-roll bar

Front brakes

Ventilated discs, 350 mm

Rear brakes

Disc, 330 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

255/60 R18; 255/50 R20

Wheel rims size

8J x 18; 8J x 20

Specs of Honda Pilot IV (facelift 2025) 3.5 V6 (285 Hp) i-VTM4 AWD Automatic /2025, 2026/
