Honda Odyssey IV (facelift 2014) 3.5 V6 (248 Hp) Automatic | Technical specs, data, fuel consumption, Dimensions

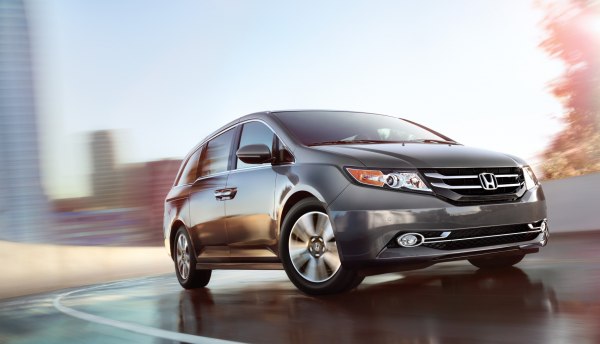

2014 Honda Odyssey IV (facelift 2014) - Photo 1

Key specs

Honda Odyssey IV (facelift 2014) 3.5 V6 (248 Hp) Automatic /Minivan 2014 - 2017/

What is the body type of Honda Odyssey IV (facelift 2014)?

Minivan, 5 Doors, 7-8 Seats

What is the fuel consumption and economy of Honda Odyssey IV (facelift 2014) 3.5 V6 (248 Hp) Automatic?

10.7 l/100 km
22 US mpg
26.4 UK mpg
9.3 km/l

How environmentally friendly is Honda Odyssey 3.5 V6 (248 Hp) Automatic?

ULEV-2

What is the power output of Honda Odyssey Minivan 2014 3.5 V6 (248 Hp) Automatic?

248 Hp, 339 Nm
250 lb.-ft.

What is the engine displacement of Honda Odyssey Minivan 2014 3.5 V6 (248 Hp) Automatic?

3.5 l
3471 cm³
211.81 cu. in.

What is the number of cylinders in 2014 Honda 3.5 V6 (248 Hp) Automatic?

6, V-engine

What is the drivetrain of Honda Odyssey IV (facelift 2014) Minivan 2014 3.5 V6 (248 Hp) Automatic?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2014 Honda Odyssey Minivan?

5154 mm
202.91 in.

What is the width of 2014 Honda Odyssey Minivan?

2012 mm
79.21 in.

What is the kerb weight of 2014 Honda Odyssey IV (facelift 2014) 3.5 V6 (248 Hp) Automatic?

1994-2028 kg
4396 - 4471 lbs.

What is the trunk (boot) capacity of 2014 Honda Odyssey Minivan?

1087 - 4205 l
38.4 - 148.5 cu. ft.

What are the number of gears and the gearbox type of 2014 Honda Odyssey IV (facelift 2014) 3.5 V6 (248 Hp) Automatic?

6, automatic transmission

Honda
- Honda Odyssey
  - Odyssey IV (facelift 2014)
    - 3.5 V6 (248 Hp) Automatic

Compare

General information

Brand

Honda

Model

Odyssey

Generation

Odyssey IV (facelift 2014)

Modification (Engine)

3.5 V6 (248 Hp) Automatic

Start of production

2014

End of production

2017

Powertrain Architecture

Internal Combustion engine

Body type

Minivan

Seats

7-8

Doors

Looking for Honda Odyssey on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

12.4 l/100 km 19 US mpg
22.8 UK mpg
8.1 km/l

Fuel consumption (economy) - extra urban

8.4 l/100 km 28 US mpg
33.6 UK mpg
11.9 km/l

Fuel consumption (economy) - combined

10.7 l/100 km 22 US mpg
26.4 UK mpg
9.3 km/l

Fuel Type

Petrol (Gasoline)

Emission standard

ULEV-2

Weight-to-power ratio

8 kg/Hp, 124.4 Hp/tonne

Weight-to-torque ratio

5.9 kg/Nm, 170 Nm/tonne

Engine specs

Power

248 Hp @ 5700 rpm.

Power per litre

71.4 Hp/l

Torque

339 Nm @ 4800 rpm. 250 lb.-ft. @ 4800 rpm.

Maximum engine speed

6300 rpm.

Engine layout

Front, Transverse

Engine Model/Code

J35Z8

Engine displacement

3471 cm³ 211.81 cu. in.

Number of cylinders

Engine configuration

V-engine

Cylinder Bore

89 mm 3.5 in.

Piston Stroke

93 mm 3.66 in.

Compression ratio

10.5:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC, i-VTEC

Engine oil capacity

4.3 l 4.54 US qt | 3.78 UK qt

Engine oil specification

Coolant

7.3 l 7.71 US qt | 6.42 UK qt

Engine systems

Cylinder deactivation system

Volume and weights

Kerb Weight

1994-2028 kg 4396 - 4471 lbs.

Trunk (boot) space - minimum

1087 l 38.4 cu. ft.

Trunk (boot) space - maximum

4205 l 148.5 cu. ft.

Fuel tank capacity

79.5 l 21 US gal | 17.49 UK gal

Permitted trailer load with brakes (12%)

1588 kg 3501 lbs.

Dimensions

Length

5154 mm 202.91 in.

Width including mirrors

2012 mm 79.21 in.

Height

1737 mm 68.39 in.

Wheelbase

3000 mm 118.11 in.

Front track

1730 mm 68.11 in.

Rear (Back) track

1732 mm 68.19 in.

Minimum turning circle (turning diameter)

11.2 m 36.75 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, automatic transmission

Front suspension

Independent, McPherson type, Anti-roll bar

Rear suspension

Double wishbone, Independent multi-link suspension

Front brakes

Ventilated discs, 320.04 mm

Rear brakes

Disc, 332.74 mm

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tire size

235/65 R17

Wheel rim size

7J x 17

Specs of Honda Odyssey IV (facelift 2014) 3.5 V6 (248 Hp) Automatic /2014, 2015, 2016, 2017/
