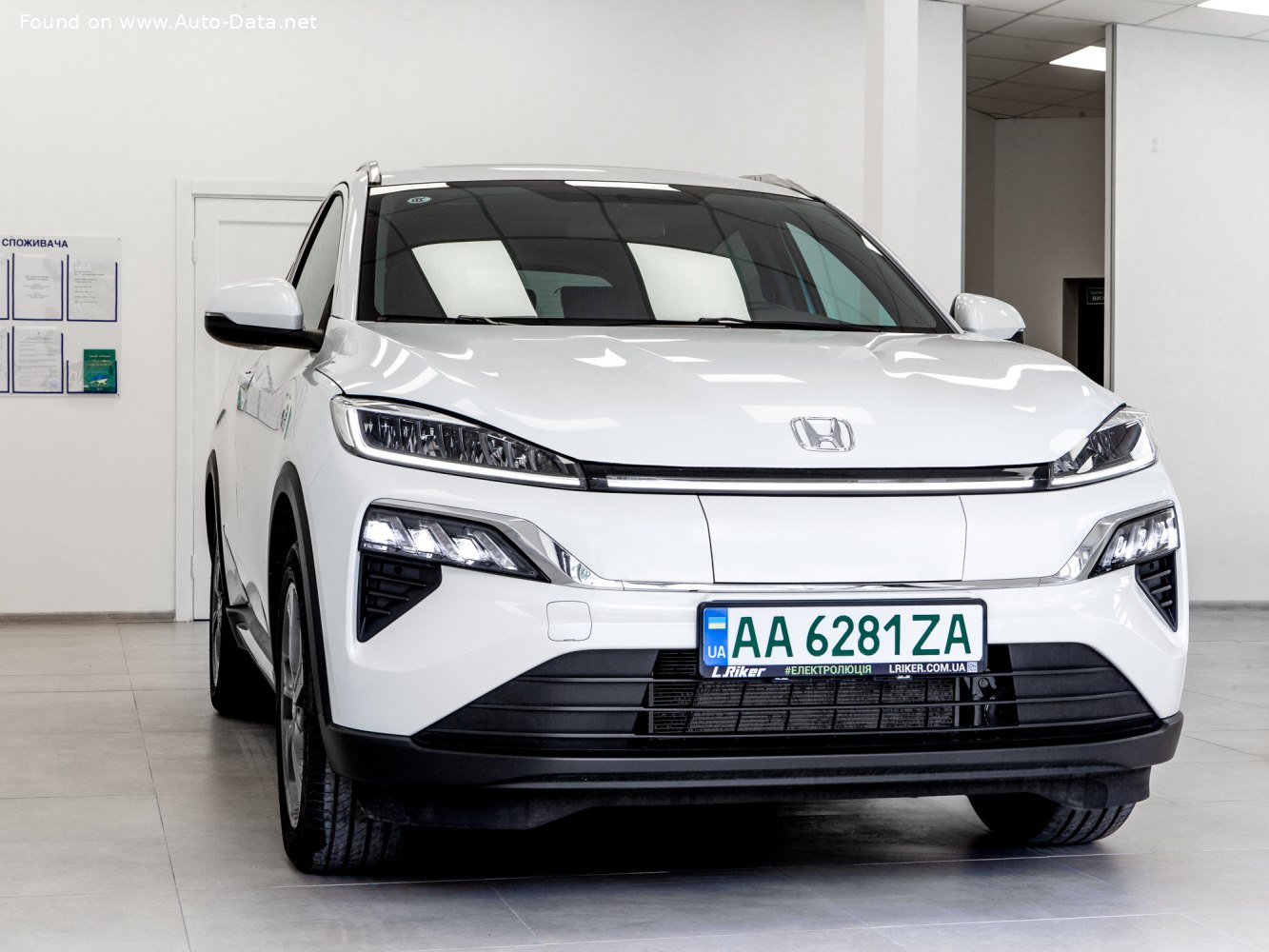

Honda M-NV 61.3 kWh (163 Hp) | Technical specs, data, battery, electric range, Dimensions

Key specs

Honda M-NV 61.3 kWh (163 Hp) /SUV, Crossover 2020 - 2023/

What is the body type of Honda M-NV?

SUV, Crossover, 5 Doors, 5 Seats

What is the all-electric range of 61.3 kWh (163 Hp)?

480 km
298 mi

What is the electricity consumption of Honda M-NV 61.3 kWh (163 Hp)?

13.7 kWh/100 km
22.05 kWh/100 mi
153 MPGe
7.3 km/kWh
4.5 mi/kWh

How fast is 2020 M-NV 61.3 kWh (163 Hp)?

140 km/h | 87 mph

What is the power output of Honda M-NV SUV, Crossover 2020 61.3 kWh (163 Hp)?

163 Hp, 280 Nm
207 lb.-ft.

What is the drivetrain of Honda M-NV SUV, Crossover 2020 61.3 kWh (163 Hp)?

Front wheel drive. BEV (Electric Vehicle). One electric motor drives the front wheels.

What is the length of 2020 Honda M-NV SUV, Crossover?

4324 mm
170.24 in.

What is the width of 2020 Honda M-NV SUV, Crossover?

1785 mm
70.28 in.

What is the kerb weight of 2020 Honda M-NV 61.3 kWh (163 Hp)?

1575-1610 kg
3472 - 3549 lbs.

What is the maximum permissible mass of 2020 Honda M-NV 61.3 kWh (163 Hp)?

2027 kg
4469 lbs.

What is the number of gears in What is the gearbox type of 2020 Honda M-NV 61.3 kWh (163 Hp)?

1, automatic transmission

Honda
- Honda M-NV
  - M-NV
    - 61.3 kWh (163 Hp)
    - 58.69 kWh (218 Hp)

Compare

General information

Brand

Honda

Model

M-NV

Generation

M-NV

Modification (Engine)

61.3 kWh (163 Hp)

Start of production

November, 2020 year

End of production

June, 2023 year

Powertrain Architecture

BEV (Electric Vehicle)

Body type

SUV, Crossover

Seats

Doors

Performance specs

Fuel Type

Electricity

Maximum speed

140 km/h 87 mph

Weight-to-power ratio

9.7 kg/Hp, 103.5 Hp/tonne

Weight-to-torque ratio

5.6 kg/Nm, 177.8 Nm/tonne

Electric cars and hybrids specs

Gross battery capacity

61.3 kWh

Battery technology

Lithium nickel manganese cobalt oxides (Li-NMC)

Battery location

Below the floor

Electric range (NEDC)

480 km 298 mi

Average Energy consumption (NEDC)

13.7 kWh/100 km 22.05 kWh/100 mi
153 MPGe
7.3 km/kWh
4.5 mi/kWh

Charging ports

Electric motor 1

Electric motor power

163 Hp

Electric motor Torque

280 Nm 207 lb.-ft.

Electric motor model/code

TZ220XSBT2

Electric motor location

Front axle, Transverse

Electric motor type

Synchronous

System power

163 Hp

System torque

280 Nm 207 lb.-ft.

Volume and weights

Kerb Weight

1575-1610 kg 3472 - 3549 lbs.

Max. weight

2027 kg 4469 lbs.

Max load

417-452 kg 919 - 996 lbs.

Dimensions

Length

4324 mm 170.24 in.

Width

1785 mm 70.28 in.

Height

1637 mm 64.45 in.

Wheelbase

2610 mm 102.76 in.

Front track

1535 mm 60.43 in.

Rear (Back) track

1540 mm 60.63 in.

Minimum turning circle (turning diameter)

11.2 m 36.75 ft.

Approach angle

19°

Departure angle

30°

Drivetrain, brakes and suspension specs

Drivetrain Architecture

One electric motor drives the front wheels.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

1 gears, automatic transmission

Front suspension

Independent, McPherson type with coil spring and anti-roll bar

Rear suspension

Torsion bar

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Power steering

Electric Steering

Tires size

215/55 R18

Wheel rims size

Specs of Honda M-NV 61.3 kWh (163 Hp) /2020, 2021, 2022, 2023/
