Honda Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp) | Technical specs, data, fuel consumption, Dimensions

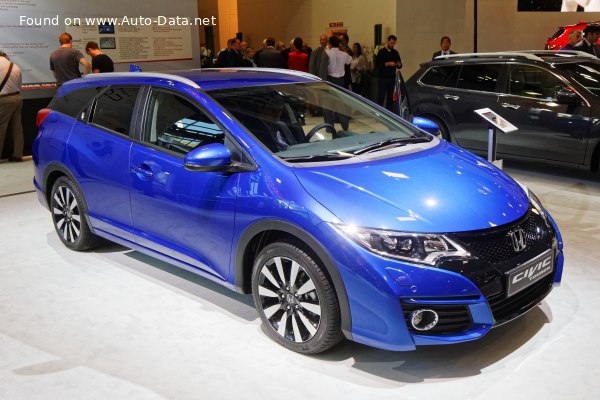

2014 Honda Civic IX Tourer (facelift 2014) - Photo 1

Key specs

Honda Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp) /Station wagon (estate) 2014 - 2017/

What is the body type of Honda Civic IX Tourer (facelift 2014)?

Station wagon (estate), 5 Doors, 5 Seats

What is the fuel consumption and economy of Honda Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp)?

6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l

How environmentally friendly is Honda Civic 1.8 i-VTEC (142 Hp)?

146 g/km CO₂
Euro 6

How fast is 2014 Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp)?

210 km/h | 130 mph
0-100 km/h: 9.2 sec
0-60 mph: 8.7 sec

What is the power output of Honda Civic Station wagon (estate) 2014 1.8 i-VTEC (142 Hp)?

142 Hp, 174 Nm
128 lb.-ft.

What is the engine displacement of Honda Civic Station wagon (estate) 2014 1.8 i-VTEC (142 Hp)?

1.8 l
1798 cm³
109.72 cu. in.

What is the number of cylinders in 2014 Honda 1.8 i-VTEC (142 Hp)?

4, Inline

What is the drivetrain of Honda Civic IX Tourer (facelift 2014) Station wagon (estate) 2014 1.8 i-VTEC (142 Hp)?

Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle.

What is the length of 2014 Honda Civic Station wagon (estate)?

4590 mm
180.71 in.

What is the width of 2014 Honda Civic Station wagon (estate)?

1770 mm
69.69 in.

What is the kerb weight of 2014 Honda Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp)?

1355 kg
2987 lbs.

What is the maximum permissible mass of 2014 Honda Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp)?

1790 kg
3946 lbs.

What are the number of gears and the gearbox type of 2014 Honda Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp)?

6, manual transmission

Honda
- Honda Civic
  - Civic IX Tourer (facelift 2014)
    - 1.8 i-VTEC (142 Hp) Automatic
    - 1.8 i-VTEC (142 Hp)
    - 1.6 i-DTEC (120 Hp)

Compare

General information

Brand

Honda

Model

Civic

Generation

Civic IX Tourer (facelift 2014)

Modification (Engine)

1.8 i-VTEC (142 Hp)

Start of production

2014

End of production

2017

Powertrain Architecture

Internal Combustion engine

Body type

Station wagon (estate)

Seats

Doors

Looking for Honda Civic on the used-car market?

Check its history →

Performance specs

Fuel consumption (economy) - urban

7.7 l/100 km 30.5 US mpg
36.7 UK mpg
13 km/l

Fuel consumption (economy) - extra urban

5.3 l/100 km 44.4 US mpg
53.3 UK mpg
18.9 km/l

Fuel consumption (economy) - combined

6.2 l/100 km 37.9 US mpg
45.6 UK mpg
16.1 km/l

CO₂ emissions

146 g/km

Fuel Type

Petrol (Gasoline)

Acceleration 0 - 100 km/h

9.2 sec

Acceleration 0 - 62 mph

9.2 sec

Acceleration 0 - 60 mph (Calculated by Auto-Data.net)

8.7 sec

Maximum speed

210 km/h 130 mph

Emission standard

Euro 6

Weight-to-power ratio

9.5 kg/Hp, 104.8 Hp/tonne

Weight-to-torque ratio

7.8 kg/Nm, 128.4 Nm/tonne

Engine specs

Power

142 Hp @ 6500 rpm.

Power per litre

79 Hp/l

Torque

174 Nm @ 4300 rpm. 128 lb.-ft. @ 4300 rpm.

Engine layout

Front, Transverse

Engine Model/Code

R18Z4

Engine displacement

1798 cm³ 109.72 cu. in.

Number of cylinders

Engine configuration

Inline

Cylinder Bore

81 mm 3.19 in.

Piston Stroke

87.3 mm 3.44 in.

Compression ratio

10.6:1

Number of valves per cylinder

Fuel injection system

Multi-port manifold injection

Engine aspiration

Naturally aspirated engine

Valvetrain

SOHC

Engine oil capacity

3.7 l 3.91 US qt | 3.26 UK qt

Engine oil specification

Coolant

5.57 l 5.89 US qt | 4.9 UK qt

Volume and weights

Kerb Weight

1355 kg 2987 lbs.

Max. weight

1790 kg 3946 lbs.

Max load

435 kg 959 lbs.

Fuel tank capacity

50 l 13.21 US gal | 11 UK gal

Permitted trailer load with brakes (12%)

1400 kg 3086 lbs.

Permitted trailer load without brakes

500 kg 1102 lbs.

Permitted towbar download

75 kg 165 lbs.

Dimensions

Length

4590 mm 180.71 in.

Width

1770 mm 69.69 in.

Width including mirrors

2065 mm 81.3 in.

Wheelbase

2595 mm 102.17 in.

Front track

1530 mm 60.24 in.

Rear (Back) track

1530 mm 60.24 in.

Ride height (ground clearance)

145 mm 5.71 in.

Minimum turning circle (turning diameter)

11.28 m 37.01 ft.

Drivetrain, brakes and suspension specs

Drivetrain Architecture

The Internal combustion engine (ICE) drives the front wheels of the vehicle.

Drive wheel

Front wheel drive

Number of gears and type of gearbox

6 gears, manual transmission

Front suspension

Independent, McPherson type

Rear suspension

Semi-independent, coil spring

Front brakes

Ventilated discs

Rear brakes

Disc

Assisting systems

ABS (Anti-lock braking system)

Steering type

Steering rack and pinion

Tire size

205/55R16 88V

Wheel rim size

6.5J x 16

Specs of Honda Civic IX Tourer (facelift 2014) 1.8 i-VTEC (142 Hp) /2014, 2015, 2016, 2017/
