Specs of GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box AT4 3.0 Duramax TD (277 Hp) 4WD Automatic /2019, 2020, 2021/

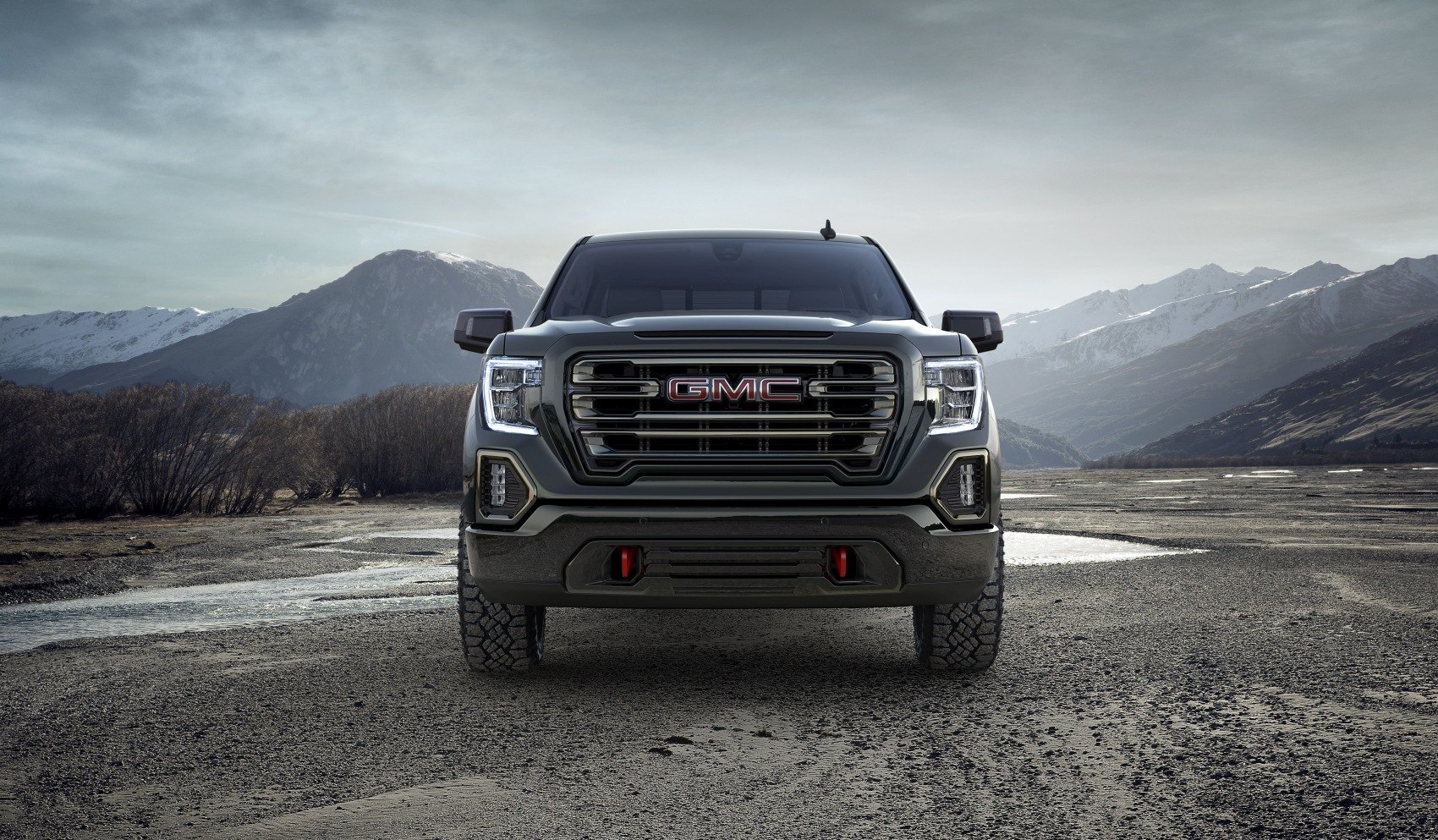

2019 GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box - Photo 1
GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box - Photo 2GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box - Photo 3GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box - Photo 4GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box - Photo 5

Key specs

GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box AT4 3.0 Duramax TD (277 Hp) 4WD Automatic /Pick-up 2019 - 2021/

What is the body type of GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box?
Pick-up, 4 Doors, 5 Seats
What is the power output of GMC Sierra 1500 Pick-up 2019 AT4 3.0 Duramax TD (277 Hp) 4WD Automatic?
277 Hp, 623 Nm
460 lb.-ft.
What is the engine displacement of GMC Sierra 1500 Pick-up 2019 AT4 3.0 Duramax TD (277 Hp) 4WD Automatic?
3.0 l
3000 cm3
183.07 cu. in.
What is the number of cylinders in 2019 GMC AT4 3.0 Duramax TD (277 Hp) 4WD Automatic?
6, Inline
What is the drivetrain of GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box Pick-up 2019 AT4 3.0 Duramax TD (277 Hp) 4WD Automatic?
All wheel drive (4x4). Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
What is the length of 2019 GMC Sierra 1500 Pick-up?
6128 mm
241.26 in.
What is the width of 2019 GMC Sierra 1500 Pick-up?
2063 mm
81.22 in.
What is the kerb weight of 2019 GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box AT4 3.0 Duramax TD (277 Hp) 4WD Automatic?
2422 kg
5340 lbs.
What is the maximum permissible mass of 2019 GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box AT4 3.0 Duramax TD (277 Hp) 4WD Automatic?
3221 kg
7101 lbs.
What is the number of gears in What is the gearbox type of 2019 GMC Sierra 1500 V (GMTT1XX) Crew Cab Standard Box AT4 3.0 Duramax TD (277 Hp) 4WD Automatic?
10, automatic transmission
AcuraAlfa RomeoAlpinaAston MartinAudiBentleyBMWBugattiBYDCadillacChevroletChryslerCitroenCupraDaciaDaewooDaihatsuDodgeDSFerrariFiatFordGenesisGMCGreat WallHavalHondaHongqiHummerHyundaiInfinitiJaguarJeepKiaKoenigseggLadaLamborghiniLanciaLand RoverLexusLotusMaseratiMazdaMcLarenMercedes-BenzMGMiniMitsubishiNIONissanOpelPaganiPeugeotPorscheRAMRenaultRolls-RoyceRoverSaabSeatSkodaSmartSubaruSuzukiTeslaToyotaVauxhallVolkswagenVolvoXiaomi
All brands
Compare

General information

Brand
GMC
Model
Sierra 1500
Generation
Sierra 1500 V (GMTT1XX) Crew Cab Standard Box
Modification (Engine)
AT4 3.0 Duramax TD (277 Hp) 4WD Automatic
Start of production
2019 year
End of production
2021 year
Powertrain Architecture
Internal Combustion engine
Body type
Pick-up
Seats
5
Doors
4
Looking for GMC Sierra 1500 on the used-car market?
Check its history →

Performance specs

Fuel consumption (economy) - urban
10.7 l/100 km 22 US mpg
26.4 UK mpg
9.3 km/l
Fuel consumption (economy) - extra urban
9 l/100 km 26.1 US mpg
31.4 UK mpg
11.1 km/l
Fuel Type
Diesel
Weight-to-power ratio
8.7 kg/Hp, 114.4 Hp/tonne
Weight-to-torque ratio
3.9 kg/Nm, 257.2 Nm/tonne

Engine specs

Power
277 Hp @ 3750 rpm.
Power per litre
92.3 Hp/l
Torque
623 Nm @ 1500 rpm. 460 lb.-ft. @ 1500 rpm.
Maximum engine speed
5100 rpm.
Engine layout
Front, Longitudinal
Engine Model/Code
LM2
Engine displacement
3000 cm3 183.07 cu. in.
Number of cylinders
6
Engine configuration
Inline
Cylinder Bore
84 mm 3.31 in.
Piston Stroke
90 mm 3.54 in.
Compression ratio
15:1
Number of valves per cylinder
4
Fuel injection system
Diesel Commonrail
Engine aspiration
Turbocharger, Intercooler
Valvetrain
DOHC
Engine oil capacity
6.6 l 6.97 US qt | 5.81 UK qt
Engine oil specification
Log in to see.Log in to see.
Coolant
20.7 l 21.87 US qt | 18.21 UK qt
Engine systems
Particulate filter

Volume and weights

Kerb Weight
2422 kg 5340 lbs.
Max. weight
3221 kg 7101 lbs.
Max load
799 kg 1761 lbs.
Fuel tank capacity
83 l 21.93 US gal | 18.26 UK gal
AdBlue tank
20.3 l 5.36 US gal | 4.47 UK gal
Permitted trailer load with brakes (12%)
4037 kg 8900 lbs.

Dimensions

Length
6128 mm 241.26 in.
Width including mirrors
2063 mm 81.22 in.
Height
1987 mm 78.23 in.
Wheelbase
3989 mm 157.05 in.

Drivetrain, brakes and suspension specs

Drivetrain Architecture
The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel
All wheel drive (4x4)
Number of gears and type of gearbox
10 gears, automatic transmission
Front suspension
Independent coil spring
Rear suspension
Rigid axle suspension, Leaf spring
Front brakes
Ventilated discs, 330x30 mm
Rear brakes
Ventilated discs, 345x20 mm
Assisting systems
ABS (Anti-lock braking system)
Steering type
Steering rack and pinion
Power steering
Electric Steering
Tires size
255/70 R17; 265/70 R17
Wheel rims size
8J x 17
